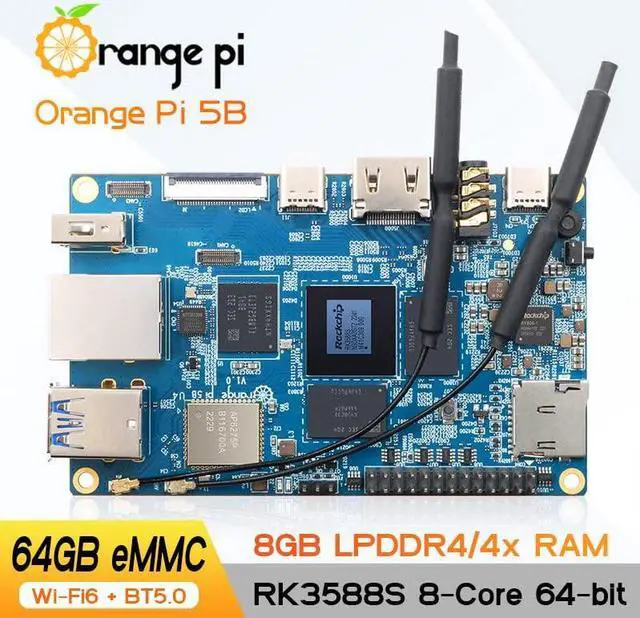

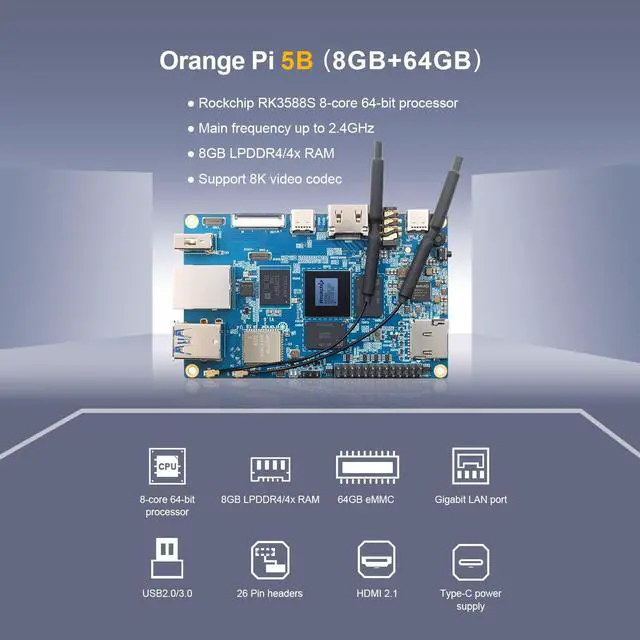

Orange Pi 5B 4GB+32GB Rockchip RK3588S 8-Core 64 Bit Single Board Computer with 32GB onboard eMMC Flash, Wi-Fi6/Bluetooth 5.0, Compatible Linux/Android/Debian/Ubuntu (8GB64GB+Power Supply)

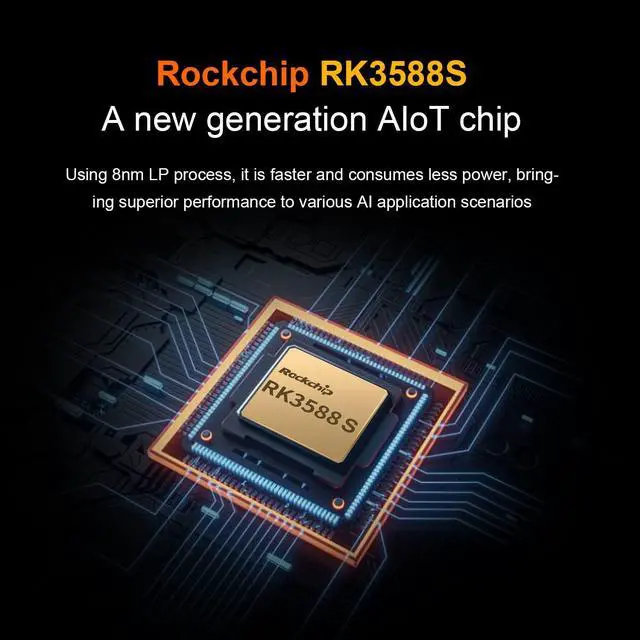

- [High-Performance Processing]: Orange Pi 5B is powered by a Rockchip RK3588S 8-core processor, featuring 4 Cortex-A76 cores and 4 Cortex-A55 cores, with a maximum frequency of up to 2.4GHz. Along with a built-in NPU offering 6 TOPS of AI computing power. Available with 4GB, 8GB, 16GB of LPDDR4/4x memory, and 32GB, 64GB, or 256GB of eMMC storage, this board supports dual-band Wi-Fi 6, Bluetooth 5.0, and up to 8K display processing capabilities.
- [Enhanced Connectivity Over Orange Pi 5]: Orange Pi 5B adds advanced wireless communication features, including Wi-Fi 6 and Bluetooth 5.0 to the Orange Pi 5. The Wi-Fi supports 2T2R 802.11 ax/ac/a/b/g/n, utilizing both 2.4GHz and 5GHz bands with MIMO standard, using PCIe 2.1 interface. Bluetooth 5.0 uses UART/PCM interface. Additionally, the Orange Pi 5B can be equipped with 32GB, 64GB, 128GB, or 256GB of eMMC storage, enhancing its performance and versatility.
- [Versatile Application Scenarios]: Orange Pi 5B single-board comput
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Parameter
CPU: 8-core 64-bit processor, Big.
Little Architecture: 4 * Cortex-A76 and 4 * Cortex-A55, Big core cluster is 2.4GH z, and Little core cluster is 1.8GH z frequency.
GPU: Arm Mali-G610 MP4. Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2. 3D graphics engine and 2D graphics engine.
NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation.
PMU: RK806-1.
RAM: 4GB/8GB/16GB /32GB(LPDDR4/4x)
Memory: 32GB eMMC and MicroSD (TF) Card Slot.
USB: USB 3.1 * 1, USB 2.0 * 2, Type-C (USB 3.1 ) * 1.
Video Output: HDMI 2.1, up to 8K@60Hz. DP 1.4 (DisplayPort), maximum output resolution up to 8K@30Hz. 2 * MIPI D-PHY TX 4Lane, configurable up to 4K@60Hz.
Camera: MIPI CSI 4Lane, 2 * MIPI D-PHY RX 4Lane.
Audio:
CODEC: ES8388. 3.5 mm headphone jack audio input/output
Input: Onboard MIC. HDMI 2.1 eARC.
Ethernet: 10/100/1000Mbps Ethernet.
Expansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
Wi-Fi,
BT module: On-board Wi-Fi6+BT 5.0 module, Wi-Fi6
interface: PCIe, BT
interface: PCM+UART.
Button: 1 * MaskROM key, 1 * Recovery key, 1 * On/Off key.

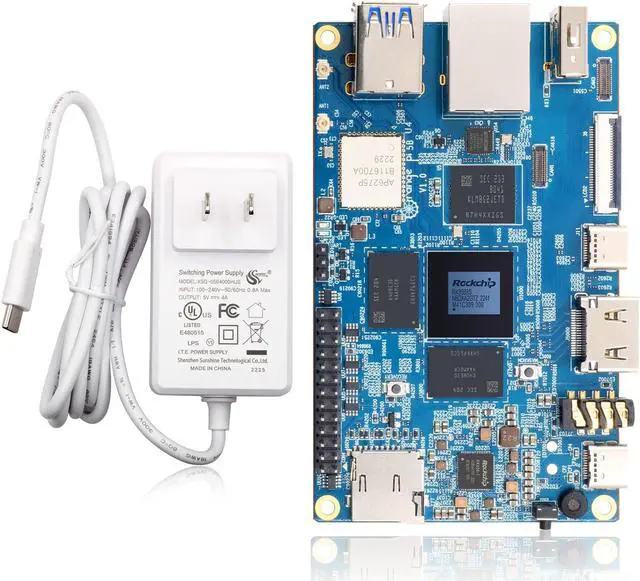

Power Source: Support Type-C power supply, 5V@4A.
LED: Power
indicator: red.
Status indicator: green.
Debugging: 3 Pin debug serial port (UART).
Supported OS: Orangepi OS (Droid), Orangepi OS (Arch), Debian11, Ubuntu 22.04, Ubuntu 20.04, Android12.
Dimension: 62mm * 100mm.
Weight: 52g
CPU: 8-core 64-bit processor, Big.
Little Architecture: 4 * Cortex-A76 and 4 * Cortex-A55, Big core cluster is 2.4GH z, and Little core cluster is 1.8GH z frequency.
GPU: Arm Mali-G610 MP4. Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2. 3D graphics engine and 2D graphics engine.
NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation.
PMU: RK806-1.
RAM: 4GB/8GB/16GB /32GB(LPDDR4/4x)
Memory: 32GB eMMC and MicroSD (TF) Card Slot.
USB: USB 3.1 * 1, USB 2.0 * 2, Type-C (USB 3.1 ) * 1.
Video Output: HDMI 2.1, up to 8K@60Hz. DP 1.4 (DisplayPort), maximum output resolution up to 8K@30Hz. 2 * MIPI D-PHY TX 4Lane, configurable up to 4K@60Hz.
Camera: MIPI CSI 4Lane, 2 * MIPI D-PHY RX 4Lane.
Audio:
CODEC: ES8388. 3.5 mm headphone jack audio input/output
Input: Onboard MIC. HDMI 2.1 eARC.
Ethernet: 10/100/1000Mbps Ethernet.
Expansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
Wi-Fi,
BT module: On-board Wi-Fi6+BT 5.0 module, Wi-Fi6
interface: PCIe, BT
interface: PCM+UART.
Button: 1 * MaskROM key, 1 * Recovery key, 1 * On/Off key.
Power Source: Support Type-C power supply, 5V@4A.
LED: Power
indicator: red.
Status indicator: green.
Debugging: 3 Pin debug serial port (UART).
Supported OS: Orangepi OS (Droid), Orangepi OS (Arch), Debian11, Ubuntu 22.04, Ubuntu 20.04, Android12.
Dimension: 62mm * 100mm.
Weight: 52g
