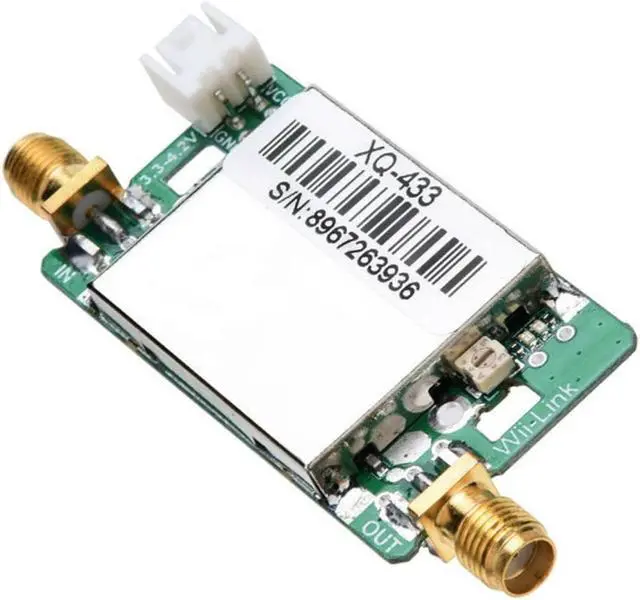

Two-Way Lora Signal Booster, 433MHz /510MHz /868MHz JMT Power Signal Amplifier Module WiFi Range Extender Transmitting & Receiving for Lora Router Ethernet RC Drone (IOT-433MHz SMA)

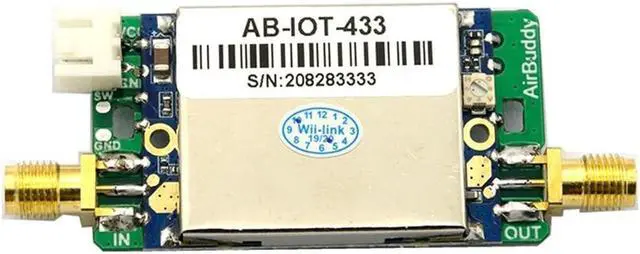

- * Applicable Frequency Band* -- AB-IOT-433/AB-IOT-510/AB-IOT-868 series two-way signal power amplifier modules are designed for various applications in the 433MHz (420MHz-480MHz) , 510MHz (470MHz-520MHz)and 868MHz (Europe 863MHz-870MHz) frequency bands. Its compact size and convenient use make it easier to design products for high-power and long-distance applications in this frequency band.
- * Performance * -- Built-in intelligent receiving/sending discrimination circuit, does not require front-end equipment to provide receiving/sending switching control signals.The transmission gain is manually adjustable, which is convenient for compatible wireless devices with different transmission powers.
- * Operating Mode * -- This wireless range extender module works in the receiving state by default and amplifies the received signal. When the front-end equipment is detected to transmit external signals, it will instantly switch to the transmitting and amplifying state.The transmis
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
1) This 433MHz/510MHz/868MHz signal amplifier module is a two-way amplified TDD working mode, that is the transmit power and receiving sensitivity will be amplified equally.
2) The receiving/sending link has a high degree of isolation, and the receiving link can withstand strong external interference without causing self-excitation of the loop.
3) Compatible with various modulation methods such as LORA and FSK/ASK/OOK/MSK/GFSK.
4) The default working frequency band of 433MHz signal booster is 420MHz-480MHz, and it can be applied to any frequency band between 300MHz-600MHz by adjusting the parameters (bandwidth 60MHz, such as 300MHz-360MHz, 520MHz-580MHz... ), if you have such a requirement, please contact us. (Hand-held walkie-talkies cannot use this module to achieve the purpose of extending the transmission range due to their high transmission power)
Basic Parameter:
1.
Receiving gain: 11dB+-2dB
2.
Receiving noise figure: at most 2.0 dB
3.
Transmission gain: 5dB? 11dB (+-2dB) adjustable
4. Recognition threshold for receiving and sending switching: -2dBm
5.
Input power range: 1dBm-25dBm
6.
Operating Voltage: The power supply voltage can be between 3.6V - 6.0V, maximum transmission power increases as the supply voltage increases.
7.
Maximum transmit power: 31.5 dBm ( 1.4 w) at 3.7V supply voltage; 33.5 dBm ( 2.3 w) at 5.0V supply voltage; 34.5 dBm ( 2.8 w) at 6.0V supply voltage
Work status indication:
- Receiving: green light is on, blue light is off
- Transmitting: blue light is on, green light is off
- In TDD working mode, the blue light and green light will flash alternately
Working current:
RX status: 10mA (+-3mA)
TX status: at most 800mA ( 3.7 v power supply); at most 1000mA( 5.0 v power supply); at most 1500mA ( 6.0 v power supply)
1) This 433MHz/510MHz/868MHz signal amplifier module is a two-way amplified TDD working mode, that is the transmit power and receiving sensitivity will be amplified equally.
2) The receiving/sending link has a high degree of isolation, and the receiving link can withstand strong external interference without causing self-excitation of the loop.
3) Compatible with various modulation methods such as LORA and FSK/ASK/OOK/MSK/GFSK.
4) The default working frequency band of 433MHz signal booster is 420MHz-480MHz, and it can be applied to any frequency band between 300MHz-600MHz by adjusting the parameters (bandwidth 60MHz, such as 300MHz-360MHz, 520MHz-580MHz... ), if you have such a requirement, please contact us. (Hand-held walkie-talkies cannot use this module to achieve the purpose of extending the transmission range due to their high transmission power)
Basic Parameter:
1.
Receiving gain: 11dB+-2dB
2.
Receiving noise figure: at most 2.0 dB
3.
Transmission gain: 5dB? 11dB (+-2dB) adjustable
4. Recognition threshold for receiving and sending switching: -2dBm
5.
Input power range: 1dBm-25dBm
6.
Operating Voltage: The power supply voltage can be between 3.6V - 6.0V, maximum transmission power increases as the supply voltage increases.
7.
Maximum transmit power: 31.5 dBm ( 1.4 w) at 3.7V supply voltage; 33.5 dBm ( 2.3 w) at 5.0V supply voltage; 34.5 dBm ( 2.8 w) at 6.0V supply voltage
Work status indication:
- Receiving: green light is on, blue light is off
- Transmitting: blue light is on, green light is off
- In TDD working mode, the blue light and green light will flash alternately
Working current:
RX status: 10mA (+-3mA)
TX status: at most 800mA ( 3.7 v power supply); at most 1000mA( 5.0 v power supply); at most 1500mA ( 6.0 v power supply)
