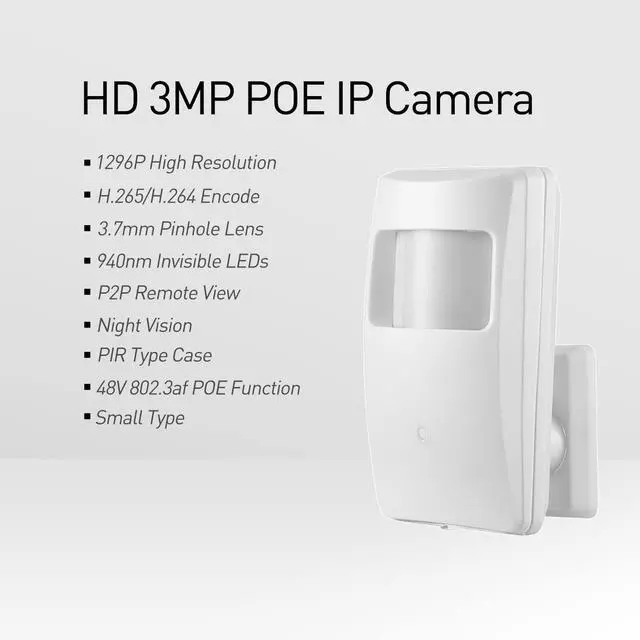

REVOTECH PIR POE IP Camera, HD 3MP Small Indoor Security Camera Covert 3.7mm Lens 940nm Invisible LEDs IR Night Vision P2P H.265(IPIR-M-P White)
- [(Excellent Images with 3MP Resolution)] This IP camera using high resolution 3.0 Megapixel( 2304 x 1296P) 1/3'' CMOS Sensor at 20 frame per second, make a clear and smooth high-quality images/videos that allows you to see more details.

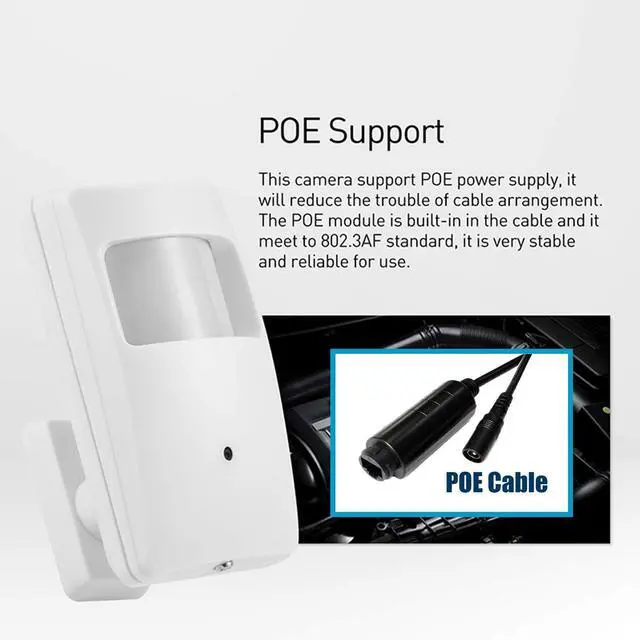

- [(Support 48V 802.3af POE Function)] Support POE function(Power Over Ethernet), reduce the trouble of cable arrangement. And it also have auxiliary power connector, can be powered by a conventional 12V 2A power supply and used as a Non-POE IP camera.
- [(3.7mm Pinhole Lens & Mini PIR Type)] This PIR IP camera install with a 3.7mm pinhole lens. The lens is flat and does not protrude beyond the camera,and the view angle is about 80 degrees, hidden and safe. It is small in size, and the case is PIR-shaped (without PIR function), so it is easy to hide in places where others cannot notice it.

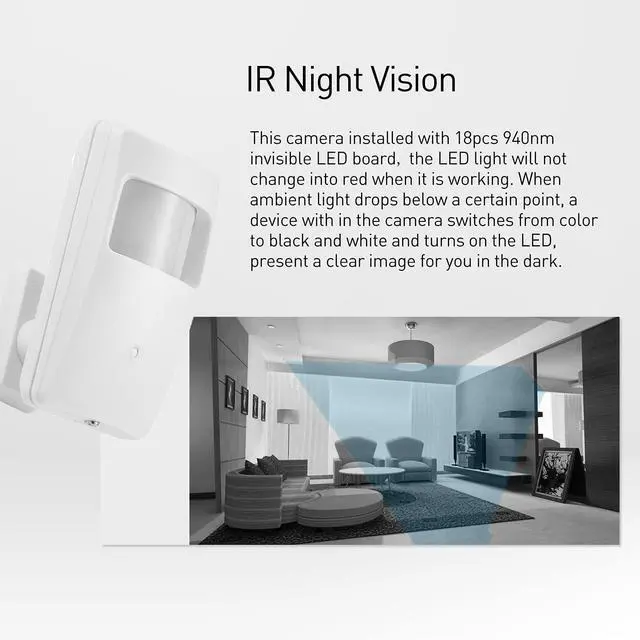

- [(940nm IR invisible LED)] The LED with 940nm LED board is invisible to naked eyes. The LED light will not change into red when it is working. When ambient light d
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Note:
1. This product power from POE, need to connect with a 802.3 af Standard 48V POE Switch.
2. This camera default 3MP & H. 265, if your NVR do not support 3MP or H. 265, you can change our camera into 1080P (2MP) and H. 264.
* High Resolution 3.0 Megapixel 1/3'' CMOS Sensor
* 2304*1296P resolution 20fps
* 18pcs 940nm Invisible LED IR Night Vision
* Support POE, reduce the trouble of cable arrangement.
* Have auxiliary power connector, can use like a Non-POE IP camera.
* Support H. 265 encode, compare with H. 264, transit same quality image only need half of the bandwidth; Record same quality image only need half of the storage;
* Also support H. 264 encode, so it can be compatible with both H. 264 and H. 265 device.
* Support iPhone, Android smartphone
* P2P Remote Viewing
* Support Motion detection, Email Alarm function
* Support Multi-Language
* Day & Night vision
* ABS Plastic Material Shell
* Simple Operation and Easy to Use
Camera
Model: IPIR-M-POE-FHW
Resolution: 2304 x 1296P 3.0 Mega Pixels
Sensor: FH8852+GC2053
Min illumination: 0.1L ux @(F 1.2, AGC ON), 0 Lux with IR
Lens: 3.7 mm
O nviif Port: 6688
Lens interface type: M12
Shutter: 1/25 seconds -1/100, 000 seconds
Compression Format: H. 265 / H. 264
Frame rate: 20fps
Storage: NVR or Computer
IP address: Dynamic (Default) /Static
Smart alarm: Motion detection, Email alarm
Support protocol: O NVIIF, HTTP, TCP/IP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, PPPoE, NTP
Ethernet: 10M/100M mbps Ethernet (RJ-45)
General
Operating Temperature: -25degC~60degC
Operating Humidity: 10%~90%
Power Supply: POE
POE Standard: 802.3 af
Infrared Lamp: 18 LED
Night Vision Distance: 5-10m
Dimension (cm): 10.2 cm x 6cm x 2.7 cm
Weight: 0.2 kg
Package contents:
1 x Camera
1 x User Manual (English)
1 x Screws Set
1. This product power from POE, need to connect with a 802.3 af Standard 48V POE Switch.
2. This camera default 3MP & H. 265, if your NVR do not support 3MP or H. 265, you can change our camera into 1080P (2MP) and H. 264.
* High Resolution 3.0 Megapixel 1/3'' CMOS Sensor
* 2304*1296P resolution 20fps
* 18pcs 940nm Invisible LED IR Night Vision
* Support POE, reduce the trouble of cable arrangement.
* Have auxiliary power connector, can use like a Non-POE IP camera.
* Support H. 265 encode, compare with H. 264, transit same quality image only need half of the bandwidth; Record same quality image only need half of the storage;
* Also support H. 264 encode, so it can be compatible with both H. 264 and H. 265 device.
* Support iPhone, Android smartphone
* P2P Remote Viewing
* Support Motion detection, Email Alarm function
* Support Multi-Language
* Day & Night vision
* ABS Plastic Material Shell
* Simple Operation and Easy to Use
Camera
Model: IPIR-M-POE-FHW
Resolution: 2304 x 1296P 3.0 Mega Pixels
Sensor: FH8852+GC2053
Min illumination: 0.1L ux @(F 1.2, AGC ON), 0 Lux with IR
Lens: 3.7 mm
O nviif Port: 6688
Lens interface type: M12
Shutter: 1/25 seconds -1/100, 000 seconds
Compression Format: H. 265 / H. 264
Frame rate: 20fps
Storage: NVR or Computer
IP address: Dynamic (Default) /Static
Smart alarm: Motion detection, Email alarm
Support protocol: O NVIIF, HTTP, TCP/IP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, PPPoE, NTP
Ethernet: 10M/100M mbps Ethernet (RJ-45)
General
Operating Temperature: -25degC~60degC
Operating Humidity: 10%~90%
Power Supply: POE
POE Standard: 802.3 af
Infrared Lamp: 18 LED
Night Vision Distance: 5-10m
Dimension (cm): 10.2 cm x 6cm x 2.7 cm
Weight: 0.2 kg
Package contents:
1 x Camera
1 x User Manual (English)
1 x Screws Set
