    BIGTREETECH Pi V1.2 Control board 64bit Quad Core 1GB DDR3L 40-pin GPIO Compatible with SKR MINI E3 V3.0 Octopus/SKR V1.4 turbo to run Klipper/Linux/Debain For I3/CoreXY 3D Printer

    Be the first to review this product...

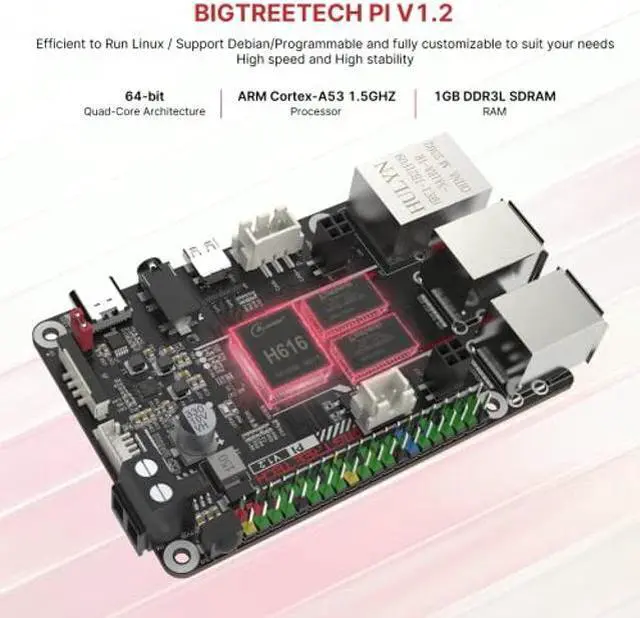

    • [(Main control chip)] BIGTREETECH BTT PI V1.2 motherboard adopts ALLWINNER H616,64-bit Quad-core, [email protected] Processor ,RAM is 1GB DDR3L SDRAM.

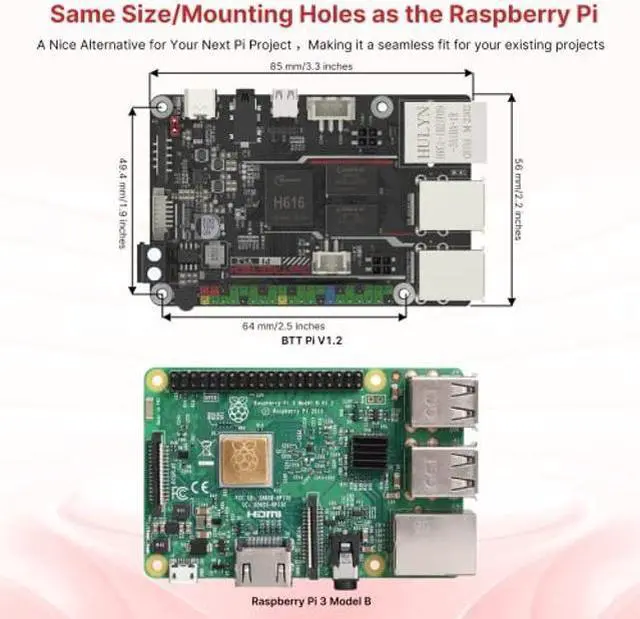

    • [(About Size)] BTT PI V1.2 Control Board size is 85*56mm,the same as the Raspberry-Pi 3B/4B, Making it a seamless fit for your existing projects.

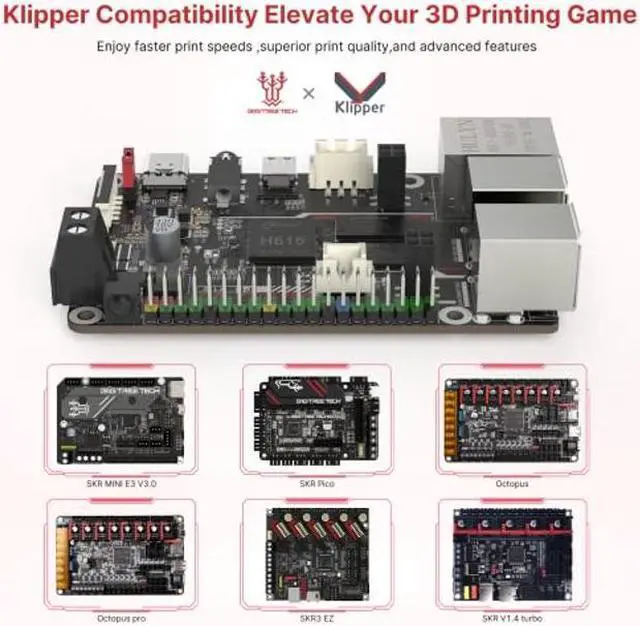

    • [(Support Display and Motherboard)] BTT PI V1.2 Display Adopts MaliG32 MP2 GPU,Support OpenGL3.2 and HDMI2.0A UHD 4K Video & Audio output and SPI screen ,onboard 4xUSB2.0 port.Powerful High Performance details and clarity. motherboard suppport SKR MINI E3 V3.0 ,SKR Pico ,SKR V1.4 turbo,SKR 3,Kraken,Octopus pro/Octopus V1.1 series.then running Klipper firmware.

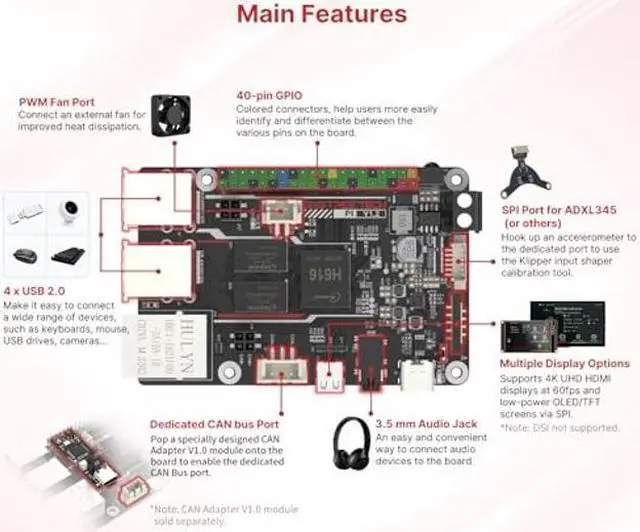

    • [(Rich Connectivity)] Onboard Standard 40-pinGPIO header,3.5mm Audio Jack,TF card Slot,ADXL345 SPI,USB To CAN Module(need to purchase CAN Adapter V1.0 module),Built-in IR Receiver.RJ45 port support a 100Mbps wired network .built-in 2.4G Wifi module ,supports 100Mbps wireless network, Users can connect the inlculde wifi antenna to g
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

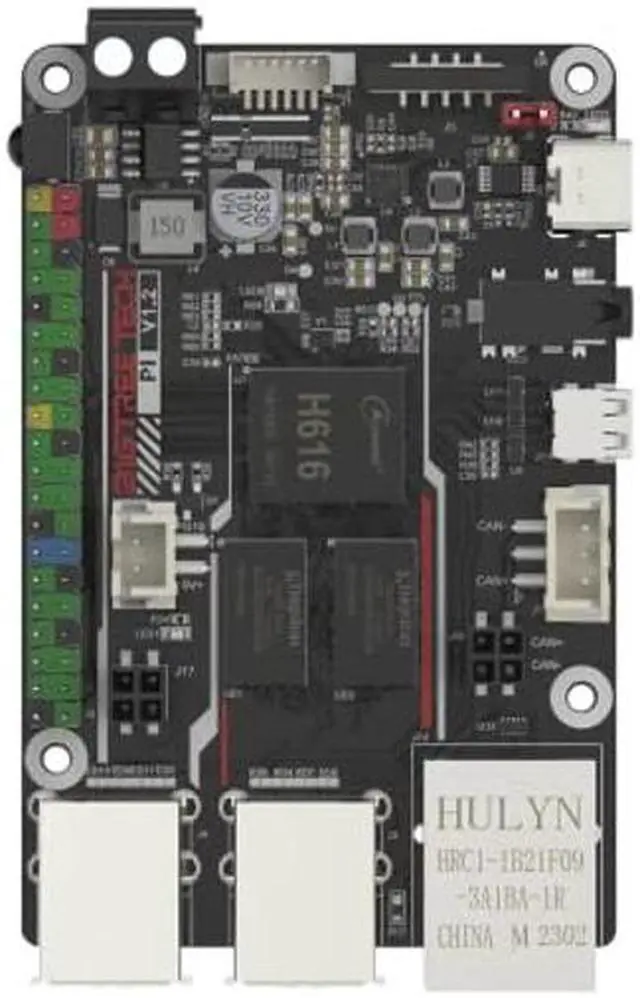

    BIGTREETECH Pi V 1.2 also known as the BBT Pi V 1.2, is a Raspberry-Pi-sized Allwinner H616 single board computer (SBC) specially designed for 3D printers with many of the same ports as the Raspberry Pi 3/4, but also features 12V-24V DC power input and connectors for the ADXL345 3-axis accelerometer, CAN Bus, and so on. The board is equipped with 1GB RAM, a microSD card slot to run the operating system (Debian 11 with Klipper), a 4K capable micro HDMI port, Fast Ethernet and WiFi 4 networking, four USB ports, and the usual 40-pin Raspberry Pi header.
