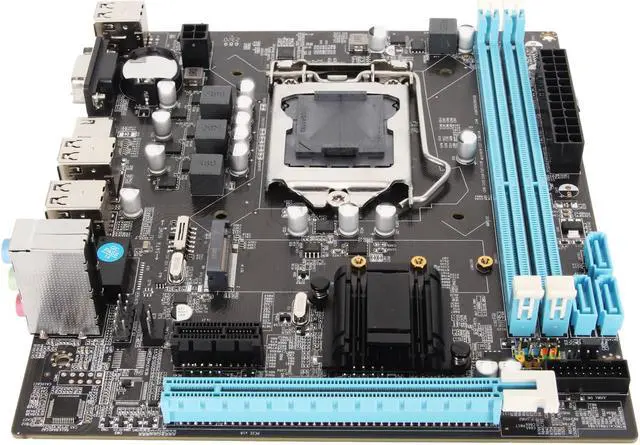

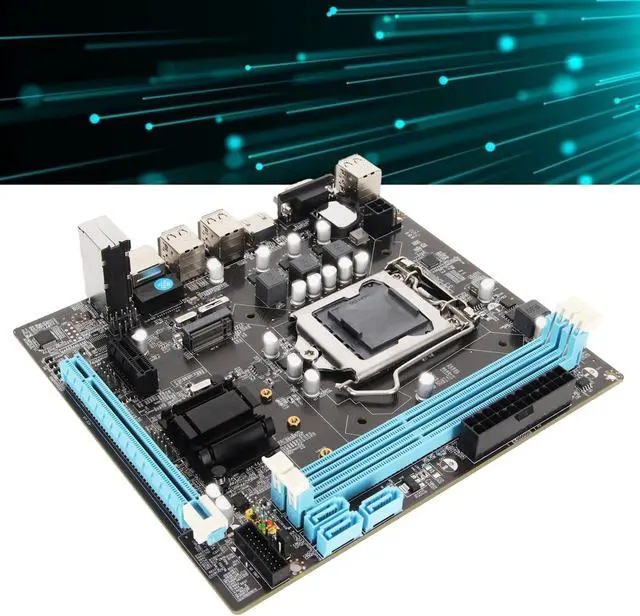

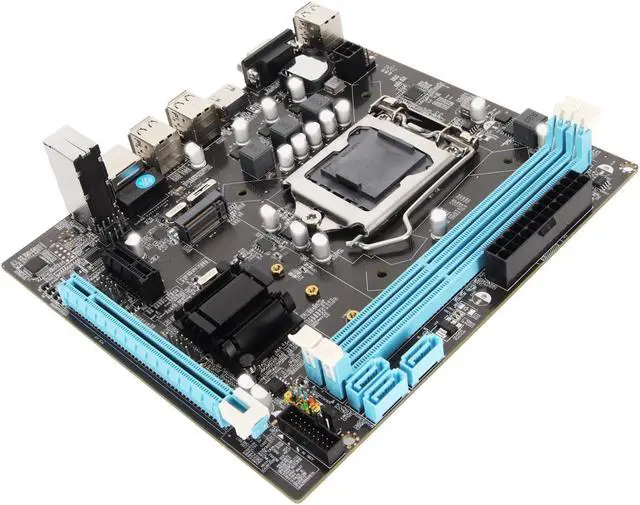

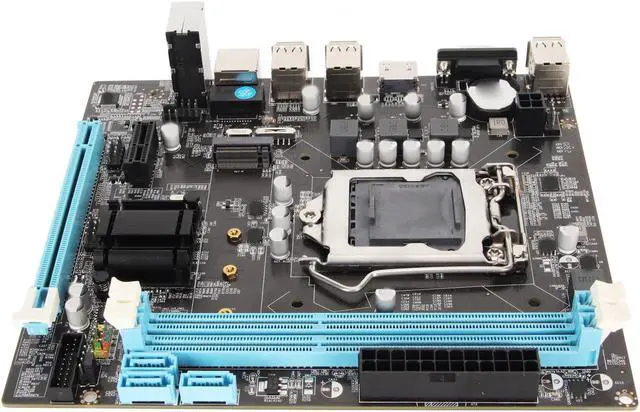

ciciglow ATX Motherboard for LGA1155 Socket, Dual Channel DDR3, M.2, 3 Phase, HD VGA Output
- LGA 1155 CPU Slot: This desktop motherboard adopts LGA 1155 2nd Gen slot that supports i3/i5/i7, suitable for Pentium, and for Celeron series processors. (For example, i7 2600k, i5 2500s, i5 2400s, i3 2130, for Pentium G530/G630/G860, etc.)
- Dual Channel DDR3: This ATX motherboard supports 2 8GB DDR3 Non ECC and 1066/1333/1600MHz frequency standard, with a maximum capacity of 16GB.
- M.2 : This LGA 1151 motherboard with high M.2 hard disk interface, with wire, support dual , can freely choose high or low PCIe hard disk and SATA2.0 channel.
- 3 Phase : This M ATX motherboard adopts 3 phase supply, all solidstate capacitor , and 24+4pin socket to ensure the stable of the motherboard accessories.
- HD VGA Ouput: This DDR3 motherboard supports VGA and HD Multimedia Interface output. Designed with PCIe X16 graphics slot, 1 PCIeX1 slot, 6 USB 2.0, 3 SATA2.0, 1 M.2 hard disk interface.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Desktop Motherboard
Material: Printed Circuit Board
Battery: 240mAh CR2032 Battery (Inbuilt Battery Included)
CPU Slot Type: LGA 1155 I3/I5/I7/for Pentium/for Celeron Series CPU
: 42.0 (3GB/s)
LAN: 10/100Mbps LAN
Input and Output Interface: 6 x USB 2.0, 1 x VGA Port, 1 x HD Multimedia Interface Port, 1 x RJ45 Port, 1 x 3 in 1 Port (Line Input/Line Output/ Input)
Onboard Interface: 1 x 24Pin ATX Connector, 1 x 4Pin ATX 12V Connector, 2 x USB Port(Support 4 x USB 2.0 ), 1 x F Connector, 1 x F Panel Connector, 1 x F Connector, 1 x Fan Connector, 1 x LPC Debug Connector
Expansion Slot: 1 x PCI X16 Slot, 1 x PCI X1 Slot, 1 x M. 2 / Slot
Integrated: Onboard ALC 6 Channel HD Codec, Provide Front Interface, Front Stereo Mic
Structure: ATX Structure (17 x 19cm / 6.7 x 7.5 in)
How to Use:
take out and use
packing list:
1 xDesktop Motherboard
Item Type: Desktop Motherboard
Material: Printed Circuit Board
Battery: 240mAh CR2032 Battery (Inbuilt Battery Included)
CPU Slot Type: LGA 1155 I3/I5/I7/for Pentium/for Celeron Series CPU
: 42.0 (3GB/s)
LAN: 10/100Mbps LAN
Input and Output Interface: 6 x USB 2.0, 1 x VGA Port, 1 x HD Multimedia Interface Port, 1 x RJ45 Port, 1 x 3 in 1 Port (Line Input/Line Output/ Input)
Onboard Interface: 1 x 24Pin ATX Connector, 1 x 4Pin ATX 12V Connector, 2 x USB Port(Support 4 x USB 2.0 ), 1 x F Connector, 1 x F Panel Connector, 1 x F Connector, 1 x Fan Connector, 1 x LPC Debug Connector
Expansion Slot: 1 x PCI X16 Slot, 1 x PCI X1 Slot, 1 x M. 2 / Slot
Integrated: Onboard ALC 6 Channel HD Codec, Provide Front Interface, Front Stereo Mic
Structure: ATX Structure (17 x 19cm / 6.7 x 7.5 in)
How to Use:
take out and use
packing list:
1 xDesktop Motherboard
