2 Sets Lora32 V3 ESP32-S3 WiFi BT Development Board SX1262 CP2102 with 0.96" OLED Display + 915MHZ Antenna 7CM + Shell Lora Kit for IoT Smart Home
- LoRa + ESP32 S3 + OLED display classic IoT dev-board for-Meshtastic
- MCU: ESP32-S3, LoRa Chip: SX1262, USB Socket: Type-C
- When you use lora32 board, you need to use 2pcs together. One is used for receiving and another for sending
- Application: smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers

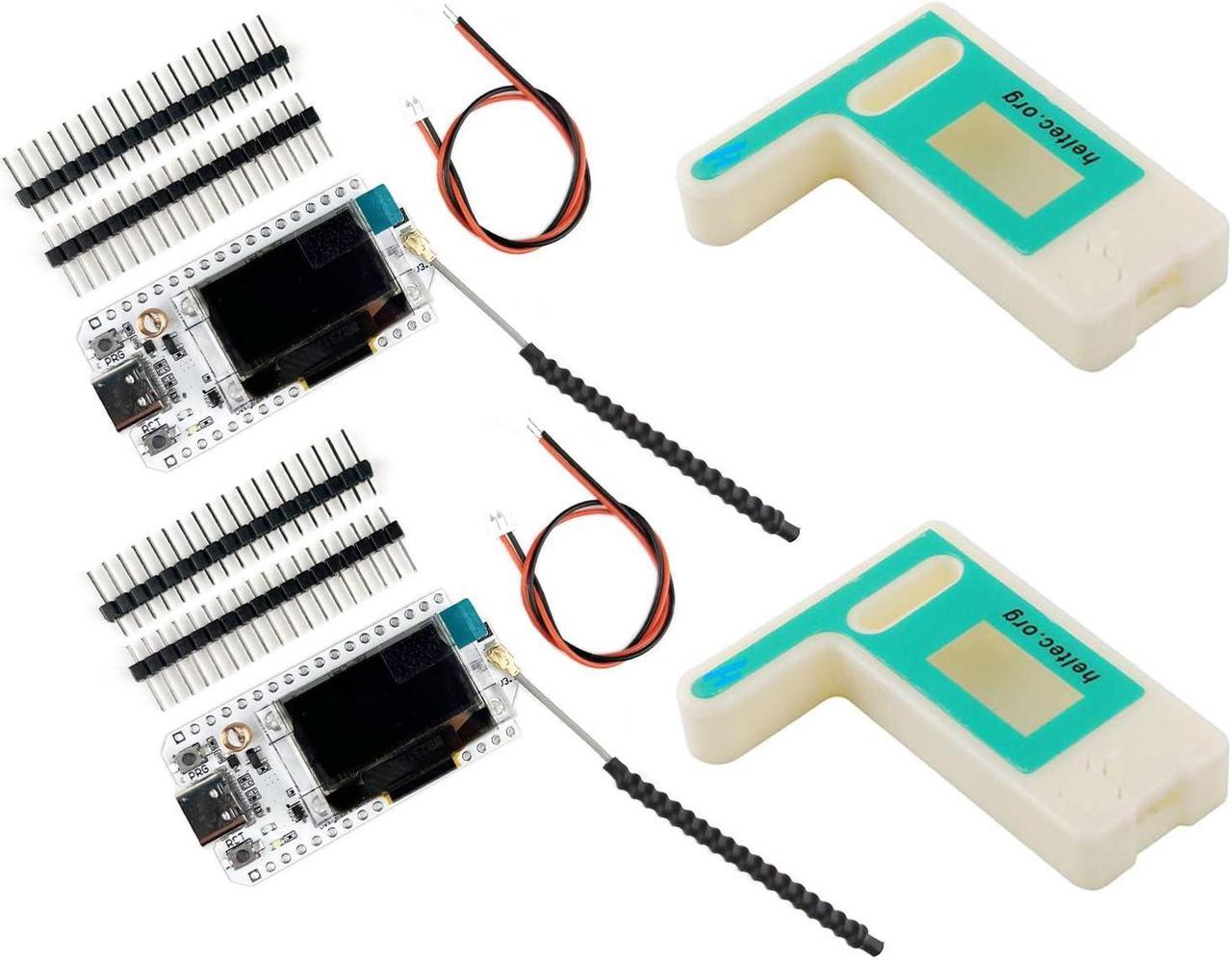

- What you will get: 2 X ESP32 Lora V3 OLED development board + 2 X 915MHz U.FL IPEX to SMA Connector Antenna + 2 X JST 1.25mm-2P Connector + 2.54 pin (no welding) + 2 X Shell
+
+
Overview
Specs
Reviews

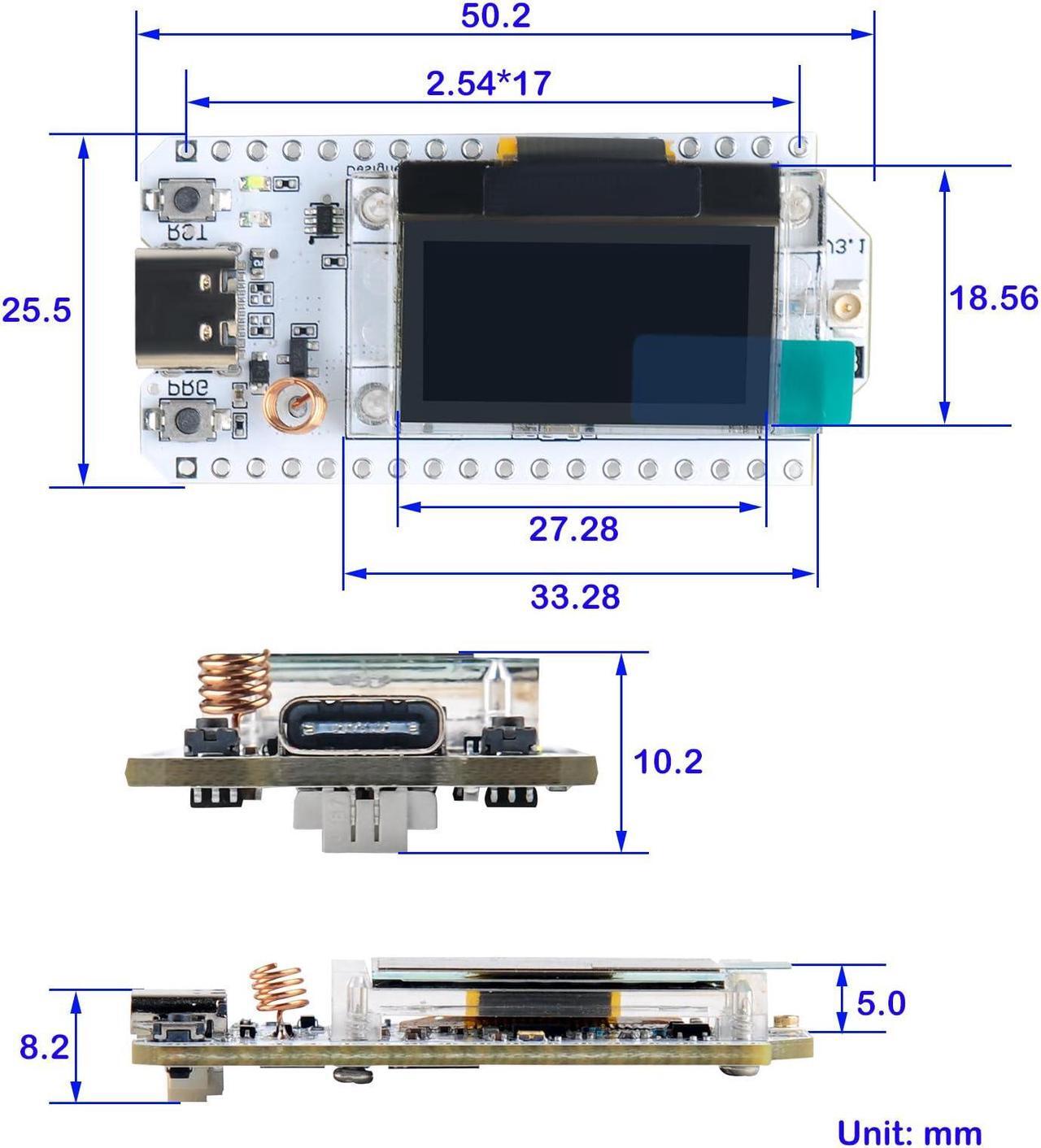

915MHz ESP32 LoRa V3 Development Board

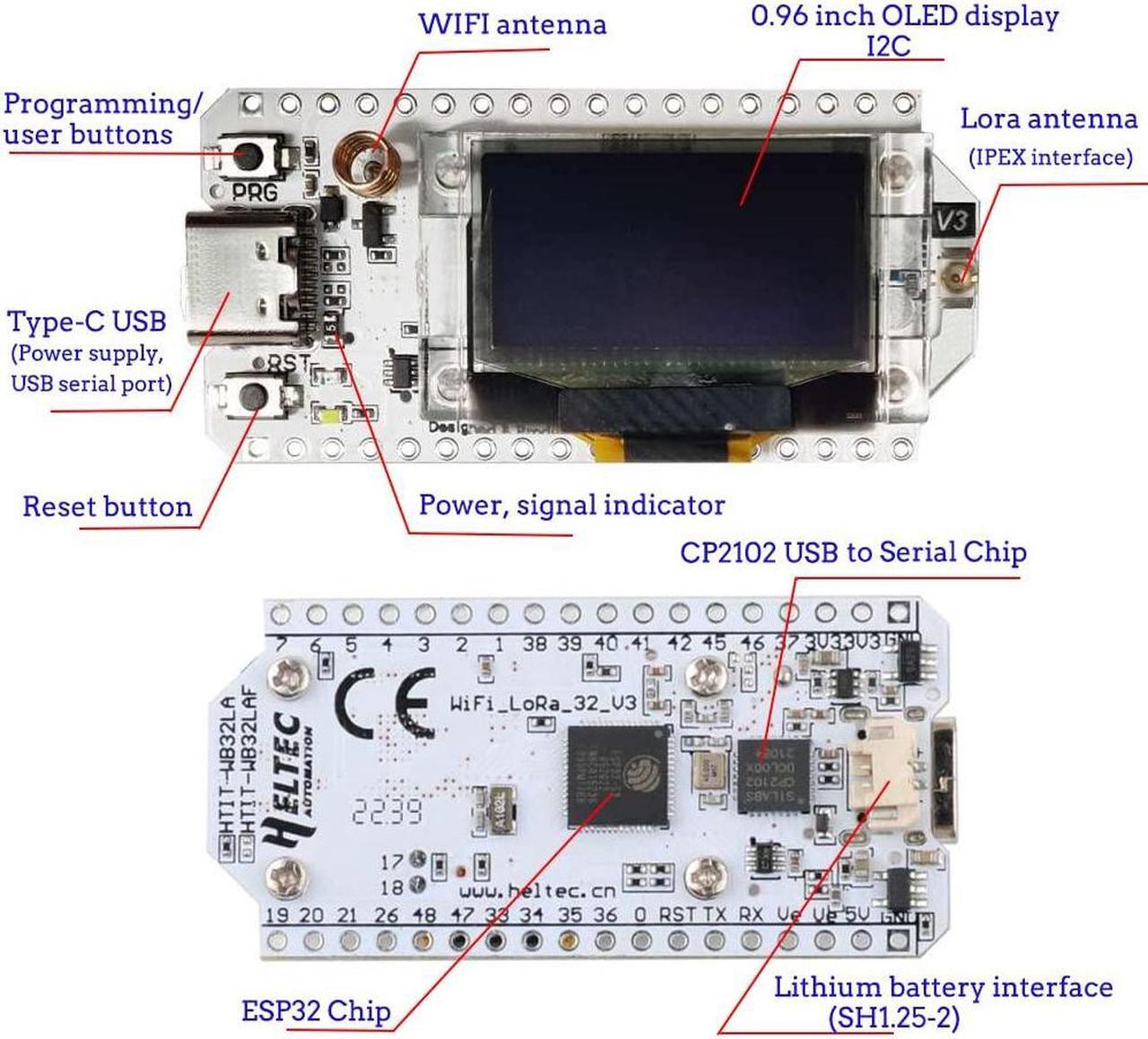

Features:

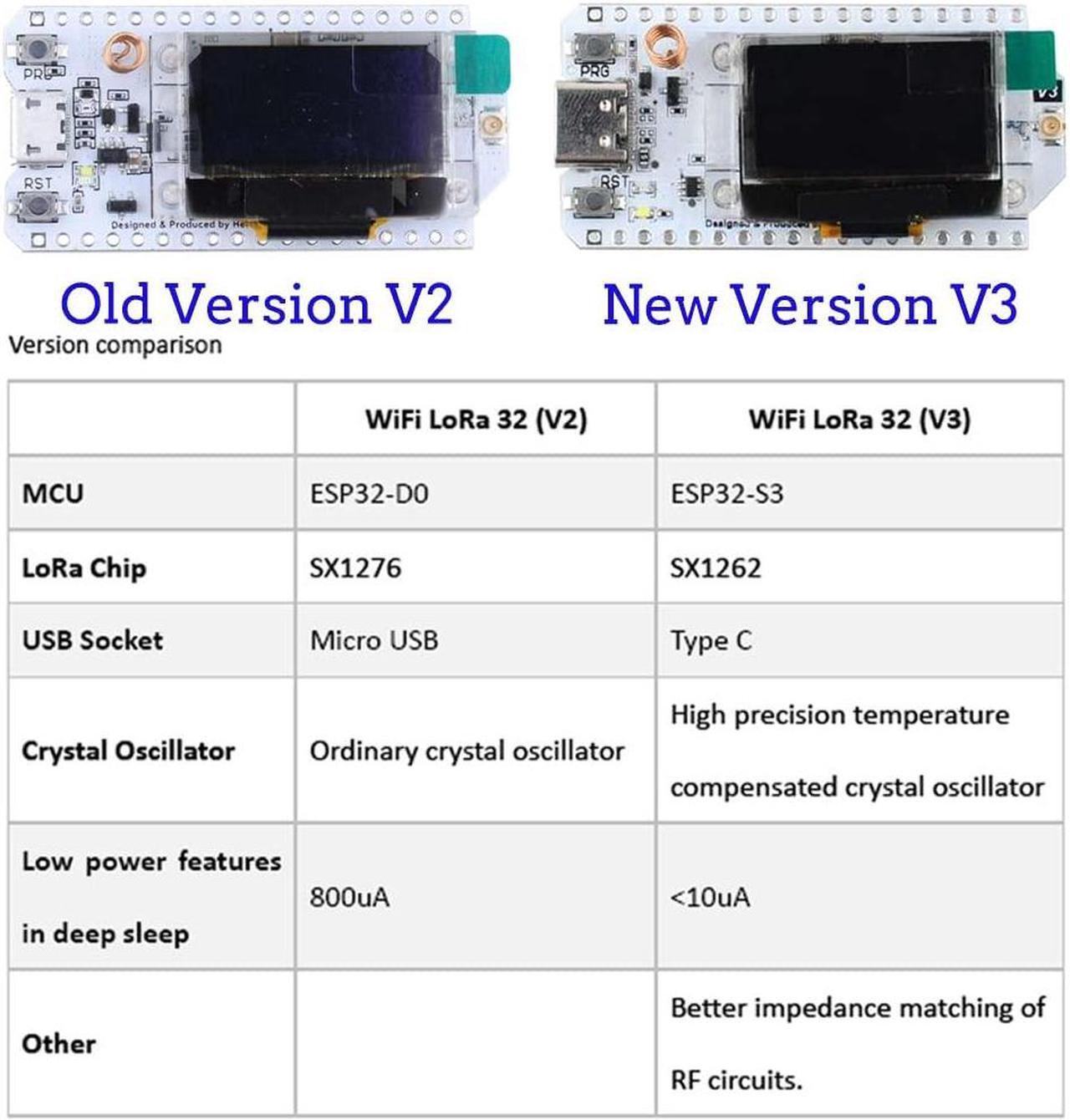

- Microprocessor: ESP32-S3FN8 (Xtensa (R) 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa use.
- Onboard 0.96 -inch 128x64 dot matrix OLED display can be used to display debugging information, battery power, and other information.
- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
- Support the Arduino development environment.
- This is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed.
- With good RF circuit design and low-power design.

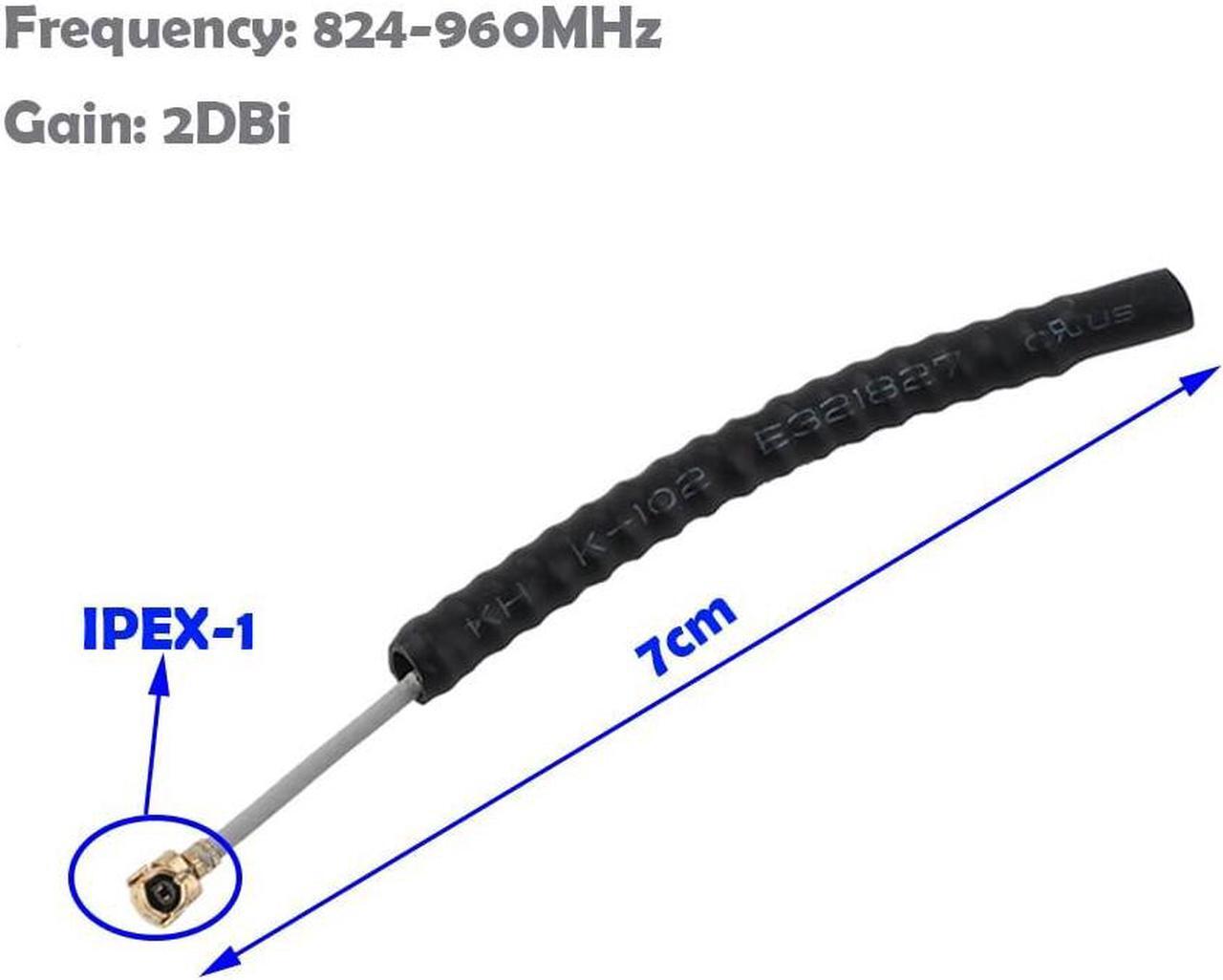

868MHz 915MHz GSM IPX IPEX 1.13 Antenna
Frequency: 824-960MHz
Gain: 2DBi
Length: Total is 7CM
Standing wave ratio / S. W. R. <=2.0
Impedance: 50O
Max Input power: 50W
RF Cable: RG 1.13 cable

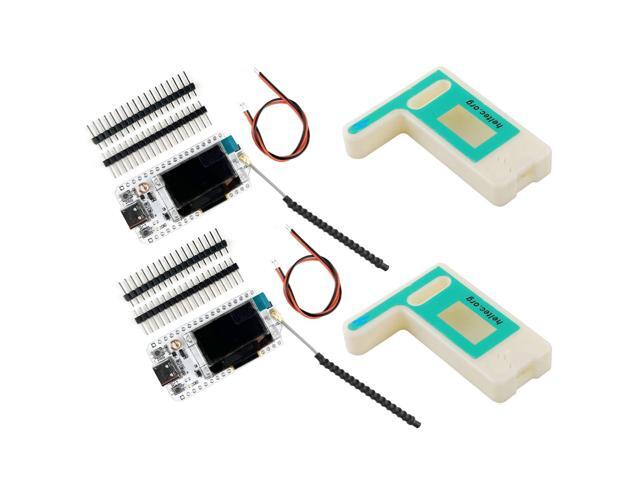

Package Includes:
2 X ESP32 Lora V3 OLED development board
2 X 915MHz Antenna 7CM
2 X JST 1.25 mm-2P Connector
2.54 pin (no welding)
2 X Shell
Features:
- Microprocessor: ESP32-S3FN8 (Xtensa (R) 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa use.
- Onboard 0.96 -inch 128x64 dot matrix OLED display can be used to display debugging information, battery power, and other information.
- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
- Support the Arduino development environment.
- This is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed.
- With good RF circuit design and low-power design.
868MHz 915MHz GSM IPX IPEX 1.13 Antenna
Frequency: 824-960MHz
Gain: 2DBi
Length: Total is 7CM
Standing wave ratio / S. W. R. <=2.0
Impedance: 50O
Max Input power: 50W
RF Cable: RG 1.13 cable
Package Includes:
2 X ESP32 Lora V3 OLED development board
2 X 915MHz Antenna 7CM
2 X JST 1.25 mm-2P Connector
2.54 pin (no welding)
2 X Shell
