xicoolee IMX219 8MP USB Camera Module for Jetson Nano 30fps Mini Camera Board Fixed-Focus 200 Degree FOV 8 Megapixels 3296x2512 Resolution 15P-1.0 MIPI Interface
- On-board HD CMOS image sensor IMX219 with 8 Megapixel fixed focus 200 degrees wide angle supports ISP (image signal processing), high-speed video shooting, lens shading compensation function
- This IMX219-200 mini camera supports for Jetson Nano operating system. Maximum Resolution is 3296x2512 for sharp image and accurate color reproduction
- Lens Specifications: CMOS Size: 1/4"; F/No: 2.0; EFL: 0.9mm; FOV: 200 degrees; TV Distortion: <18.6%; Maximum Resolution: 3296x2512; Supply Voltage: 3.3V(pin15); Dimensions: 25mm(Length)*24mm(Width)
- The IMX219 8MP camera module adopts 15P-1.0 MIPI interface, weights only 10g, lightweight to use
- his camera module meets the basic functional requirements of high sensitivity, high frame rate shooting for high-performance photography applications, suitable for AI projects such as: face recognition, road mark detection and License plate recognition etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:

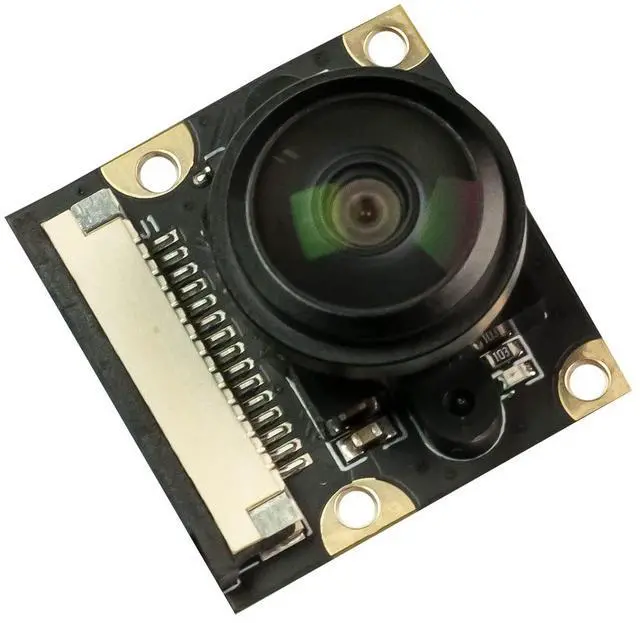

This for Jetson Nano camera module adopts IMX219 CMOS image sensor. The HD camera has 8 Megapixel, excellent anti blurring characteristics,
onboard 15P- 1.0 MIPI interface, weights only 10g, adopts fixed focus mode, and supports Jetson Nano operating system.

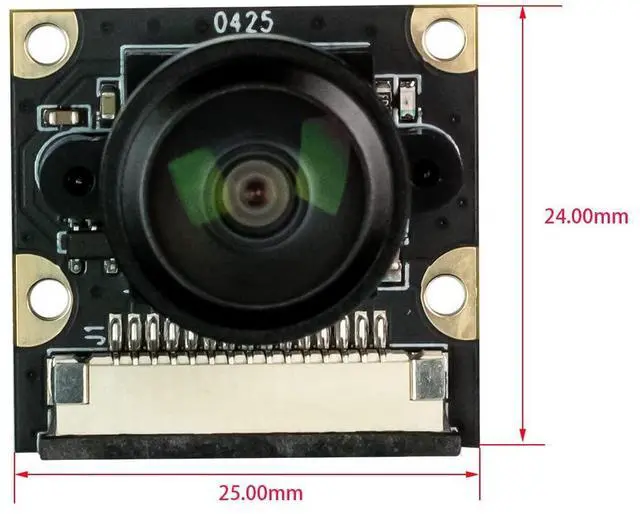

Size: 25mm (Length) *24mm (Width) *14mm (High) +- 0.5 mm
Temperature (Operation): -20~70
Temperature (Stable Image): 0~50
Assembly Technique: SMT (ROSH)
Focus: Fixed
Object Distance: 30CM-Infinity
Resolution: 800LW/PH (Center)
Interface: 15P- 1.0 MIPI
Supply Voltage: 3.3V (pin15)

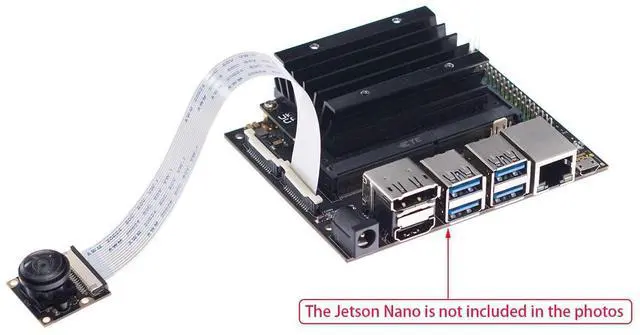

Operating System: Jetson Nano
Sensor: IMX219 (1/4")
Sensor Package: PLCC, Bare Die
Maximum Resolution: 3296*2512
Sensitivity: 600mv/(lux-sec)
Pixel Size: 1.12 um x 1.12 um
Maximum Image Transfer Rate: 30 fps for QSXGA
S/N Ratio: 39db
Dynamic Range: 69db
Output Formats: 8/10bit RGB RAM Output
Lens Construction: 1G4P+IR
F/No: 2.0
EFL: 0.9 mm
BFL (Optical): 1.41 mm
FOV: 200deg
TV Distortion: <18.6%
Relative Illumination (Sensor): 70%
IR Filter: 650+-10nm
Package: Anti-electrostatic tray

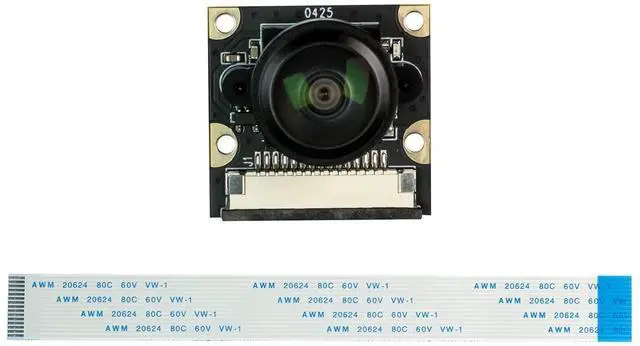

Package Contents:
1. IMX219-C8M-200 x1
2. 15P- 1.0 MIPI connecting cable x1
This for Jetson Nano camera module adopts IMX219 CMOS image sensor. The HD camera has 8 Megapixel, excellent anti blurring characteristics,
onboard 15P- 1.0 MIPI interface, weights only 10g, adopts fixed focus mode, and supports Jetson Nano operating system.

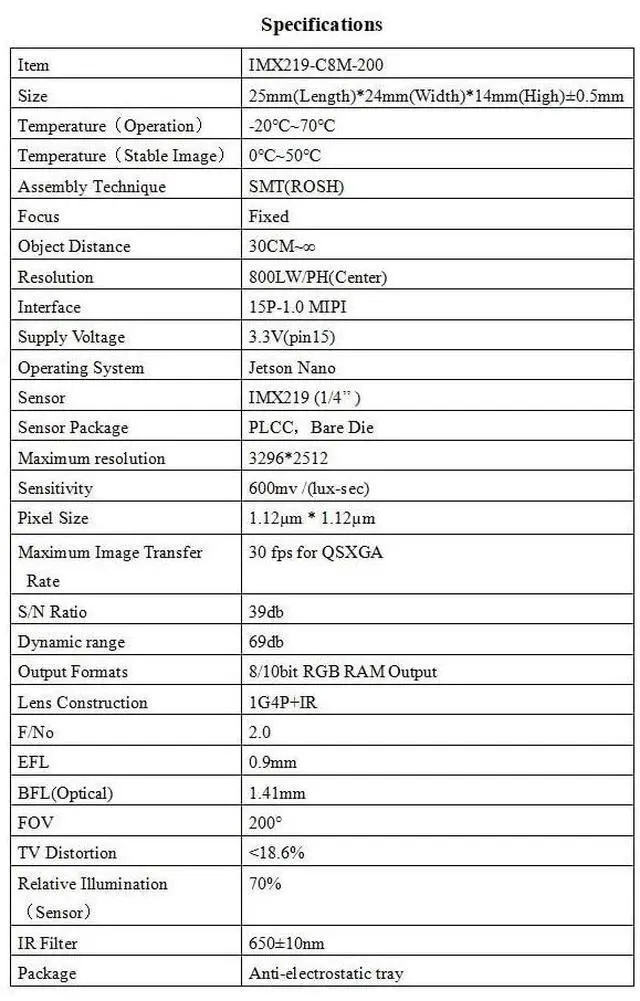

Specifications
:Size: 25mm (Length) *24mm (Width) *14mm (High) +- 0.5 mm
Temperature (Operation): -20~70
Temperature (Stable Image): 0~50
Assembly Technique: SMT (ROSH)
Focus: Fixed
Object Distance: 30CM-Infinity
Resolution: 800LW/PH (Center)
Interface: 15P- 1.0 MIPI
Supply Voltage: 3.3V (pin15)
Operating System: Jetson Nano
Sensor: IMX219 (1/4")
Sensor Package: PLCC, Bare Die
Maximum Resolution: 3296*2512
Sensitivity: 600mv/(lux-sec)
Pixel Size: 1.12 um x 1.12 um
Maximum Image Transfer Rate: 30 fps for QSXGA
S/N Ratio: 39db
Dynamic Range: 69db
Output Formats: 8/10bit RGB RAM Output
Lens Construction: 1G4P+IR
F/No: 2.0
EFL: 0.9 mm
BFL (Optical): 1.41 mm
FOV: 200deg
TV Distortion: <18.6%
Relative Illumination (Sensor): 70%
IR Filter: 650+-10nm
Package: Anti-electrostatic tray
Package Contents:
1. IMX219-C8M-200 x1
2. 15P- 1.0 MIPI connecting cable x1
