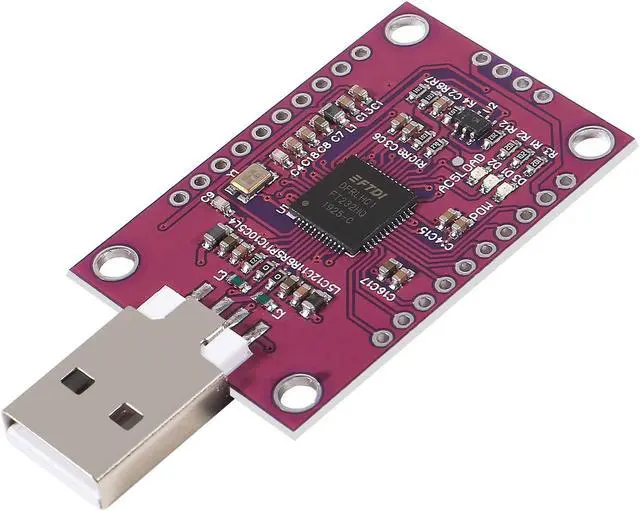

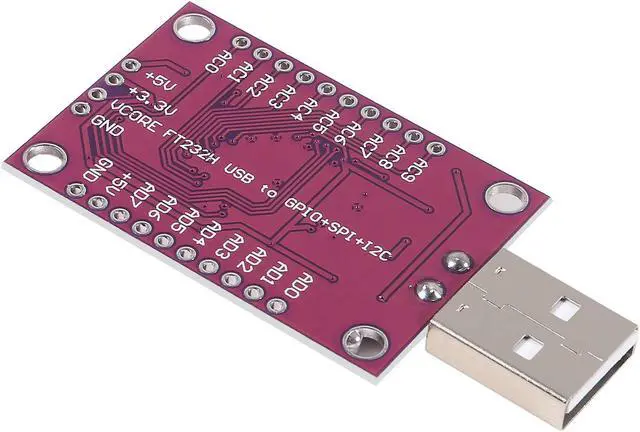

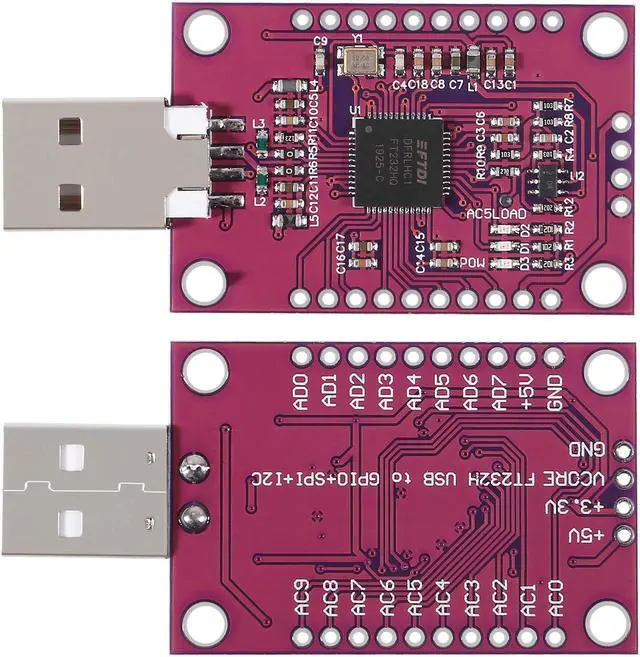

AITRIP2PCS CJMCU FT232H High-Speed Multifunction Module USB to JTAG UART/FIFO SPI/I2C Module (2PCS)
- CJMCU FT232H USB to JTAG UART FIFO SPI I2C High Speed Multifunction CJMCU FT232H Module; Using After the board +5V pin is connected to the 5V power supply or inserted into the USB female port, since the LDO function is integrated in the chip, the +3.3V pin and the Vcore pin can be connected without external connection.
- CJMCU-FT232H is a single channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC.USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
- Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI (MASTER) or bit-bang) design.
- Entire USB protocol handled on the chip. No USB specific firmware programming required
- UART transfer data rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:USB to asynchronous 245 FIFO mode for transfer data rate up to 8 Mbyte/Sec.
USB to synchronous 245 parallel FIFO mode for transfers upto 40 Mbytes/Sec
Supports a proprietary half duplex FT1248 interface with a configurable width, bi-directional data bus (1, 2, 4 or 8 bits wide).
CPU-style FIFO interface mode simplifies CPU interface design.
Fast serial interface option.
FTDI's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
Adjustable receive buffer timeout.
Typical Applications:
Single chip USB to UART (RS232, RS422 or RS485)
USB to FIFO
USB to FT1248
USB to JTAG
USB to SPI
USB to I2C
USB to Bit-Bang
USB to Fast Serial Interface
USB to CPU target interface (as memory)

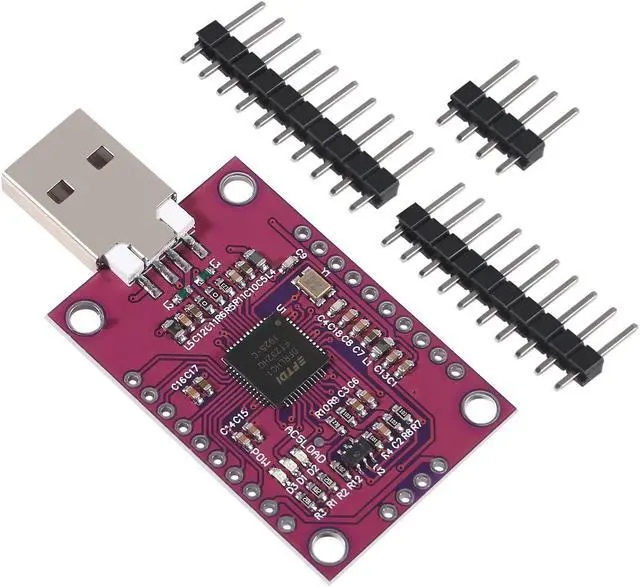

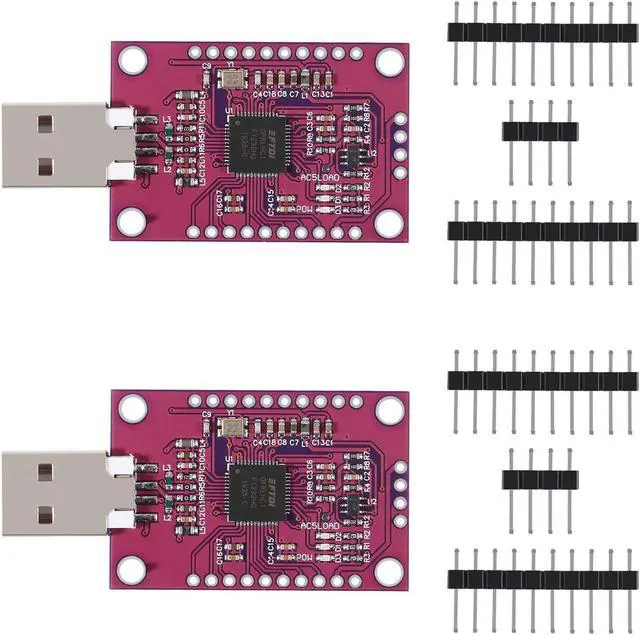

Package Includes: 2Pcs
