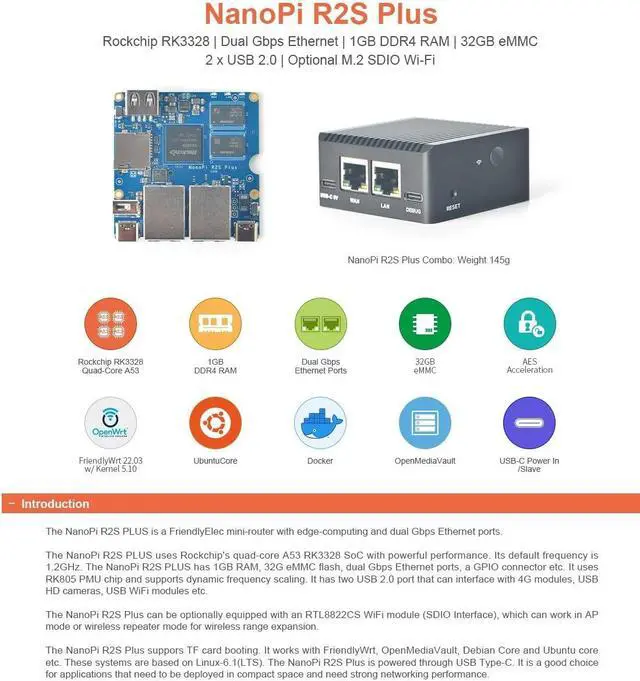

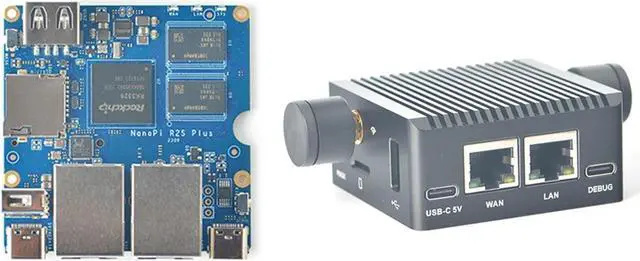

youyeetoo FriendlyElec Nanopi R2S Plus Mini Router, 1GB DDR4, 32GB eMMC, RK3328 Soc, OpenWRT with Dual-Gbps Ethernet, for IOT NAS Smart Home Gateway, Portable Travel (R2S Plus WiFi Combo)
- [WIRELESS MOBILE MINI TRAVEL ROUTER] - Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing. Create a secure Wi-Fi hotspot quickly.
- [LARGER STORAGE & EXTENSIBILITY] - The NanoPi R2S Plus uses the RK3328 SoC. It has 1GB DDR4 RAM and 32GB eMMC, Sufficient for Running Various Applications, Smooth & Elegant.
- [OPEN SOURCE & PROGRAMMABLE] - Support FriendlyWrt, It is based on an OpenWrt distribution and works with Docker CE .Open source and well suitable for developing IoT applications, NAS applications, smart home gateways etc.

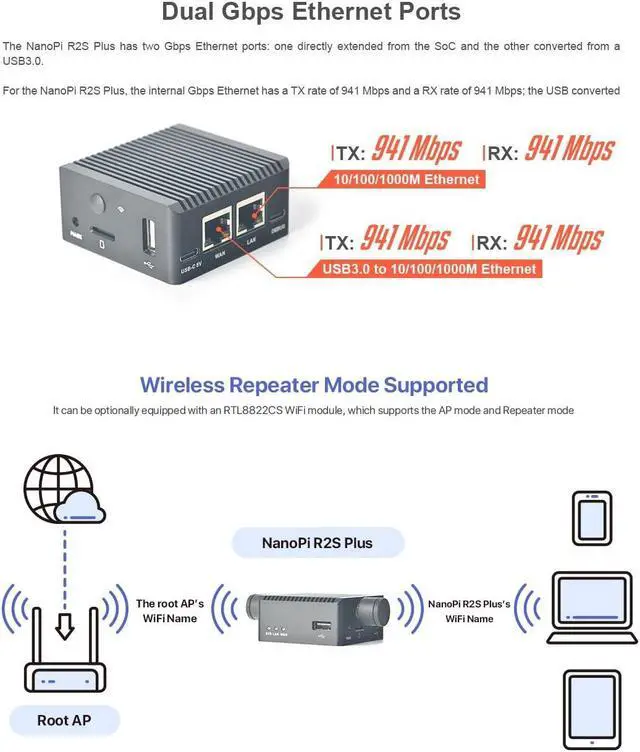

- [Dual Gbps Ethernet Ports] - The NanoPi R2S has two Gbps Ethernet ports: one directly extended from the SoC and the other converted from a USB3.0.gets around 941 mbits/second download and upload.
- [WIKI] https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R2S_Plus(If you have any question, Please feel free to contact us. Click "youyeetoo"or mail am2#youyeetoo.com (#>>@) to ask.)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CPU
Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53
Frequency: 4 x Cortex-A53 Up to 1.4GH z
MemoryRAM: 1GB DDR4
Storage
MicroSD Slot: MicroSD x1 for external storage up to 128GB
Flash: 32GB eMMC 5.1 Flash
Connectivity
Ethernet: 1 x Internal Gbps Ethernet x 1, RTL8211F chip
1 x USB 3.0 converted Gbps Ethernet. RTL8153B chip
Optional M. 2 SDIO Wi-Fi
USB
USB 2.0 Host x 1: USB Type A
1x USB-C: 5V power input and USB update in maskrom mode
1 x USB-C: onboard USB to Debug UART converter, 1500000bps bauds
Pin-header
Serial Debug Port x 1: 2. 54mm pitch 3pin-header( 3.3V TTL)
LED
1 x SYS LED (Red)
1 x WAN LED (Green)
1 x LAN LED (Green)
Button
1 x GPIO Button
1 x Maskrom mode Button
Working Temperature
0 to 70
Power
DC 5V/2A
OS Support
FriendlyWrt 21.02
FriendlyWrt 23.05
FriendlyCore Focal Lite (Base on Ubuntu 20.04 ) Buildroot
Debian 11 Core
OpenMediaVault
Buildroot
Kernel version
Linux- 6.1 -LTS
U-boot- 2017.09
Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53
Frequency: 4 x Cortex-A53 Up to 1.4GH z
MemoryRAM: 1GB DDR4
Storage
MicroSD Slot: MicroSD x1 for external storage up to 128GB
Flash: 32GB eMMC 5.1 Flash
Connectivity
Ethernet: 1 x Internal Gbps Ethernet x 1, RTL8211F chip
1 x USB 3.0 converted Gbps Ethernet. RTL8153B chip
Optional M. 2 SDIO Wi-Fi
USB
USB 2.0 Host x 1: USB Type A
1x USB-C: 5V power input and USB update in maskrom mode
1 x USB-C: onboard USB to Debug UART converter, 1500000bps bauds
Pin-header
Serial Debug Port x 1: 2. 54mm pitch 3pin-header( 3.3V TTL)
LED
1 x SYS LED (Red)
1 x WAN LED (Green)
1 x LAN LED (Green)
Button
1 x GPIO Button
1 x Maskrom mode Button
Working Temperature
0 to 70
Power
DC 5V/2A
OS Support
FriendlyWrt 21.02
FriendlyWrt 23.05
FriendlyCore Focal Lite (Base on Ubuntu 20.04 ) Buildroot
Debian 11 Core
OpenMediaVault
Buildroot
Kernel version
Linux- 6.1 -LTS
U-boot- 2017.09
