$305.99
Meet Your Seller

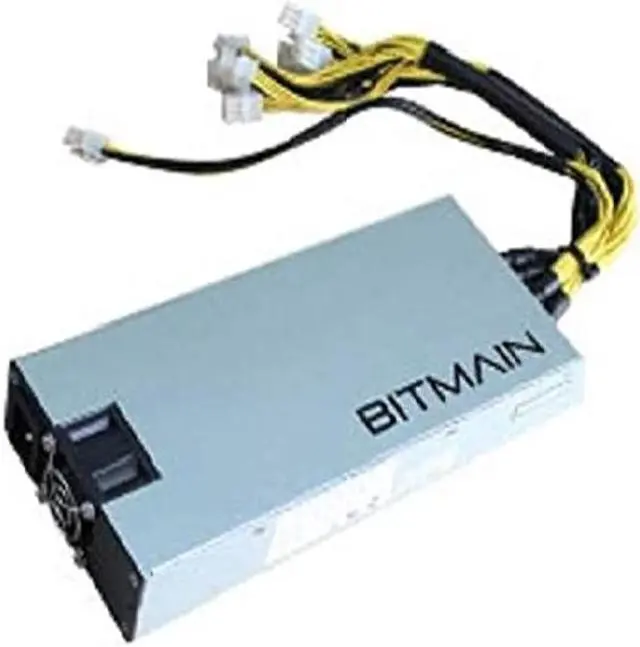

BitcoinMerch.com - Bitmain APW3+ Power Supply 1600W 220-240V ONLY, For Antminer L3+ L3++ A3 B3 D3 S7 S9
- WILL NOT TURN ON 110V REGULAR HOUSE OUTLET!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: OutputDC Voltage: 12.15V.
Rated Current (220V input): 133A.
Rated Power (220V input): 1600W.
Ripple & Noise: <1%. Voltage Regulation: <2%. Source Regulation: <1%. Load Regulation: <1%. Setup, Rise Time: <2S. Power off Protection Trip Time: > 9mS.
Interface Type: 5 pairs of 6 pin PCI-E connectors (i. e. 10 connectors).
Input Voltage Range: 220-240V AC.
AC Frequency Range: 47-63Hz.
Power Factor: > 0.95 (full load).
Leakage Current: < 1.5 mA (220V 50Hz).
Protection Low-voltage Input: 80-89V AC
Output Short Circuit: Yes.
Output Overcurrent: 134-185A max.
Overheat Protection: Yes.
Environment Conditions Operating Temperature: -20-50 ºC.
Operating Humidity: 20% - 90% relative humidity (non-condensing).
Structure Dimensions: 220mm*108mm*62mm.
Cooling Fan: Forced-air cooling.
