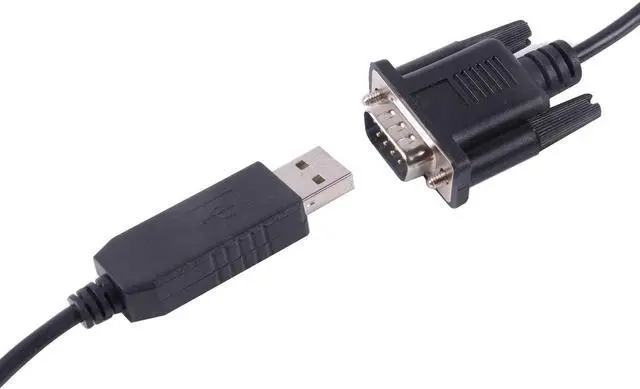

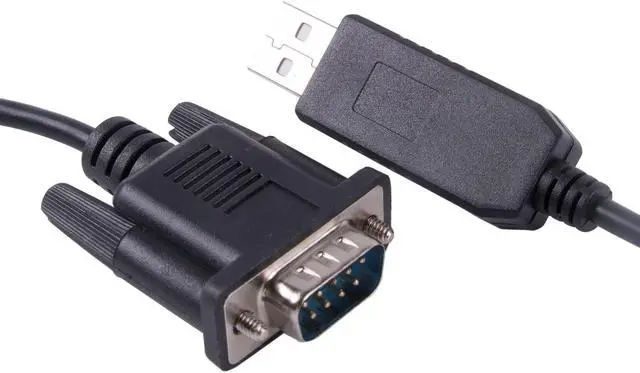

USB to DB9 D-Sub Male Com Port FTDI RS232 Serial Converter Adapter Communication Upgrade Cable, by usangreen

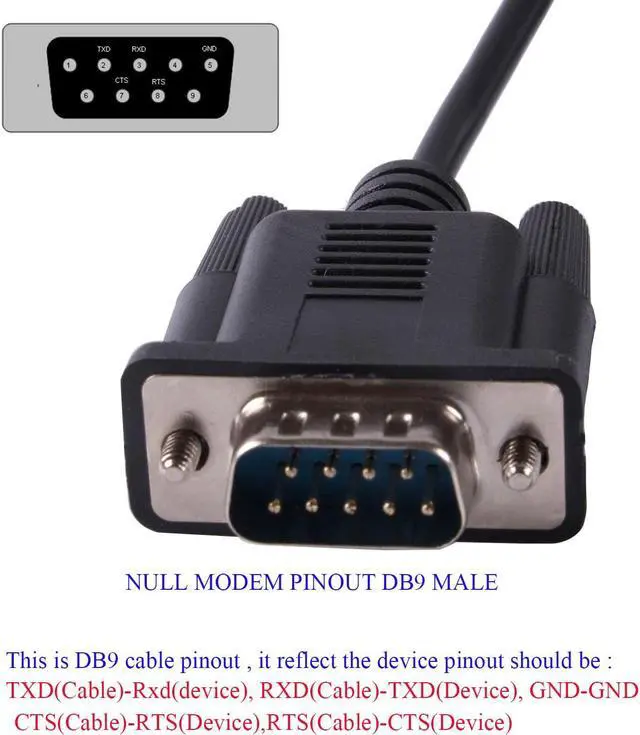

- Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)):2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC
- This is DB9 Pinout , Please keep your attention special, the cable's TXD,it reflects to RXD of device, The cable's RXD,It reflects to TXD of device, CTS reflects RTS of device, RTS Reflects CTS of device.
- USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
- USB to Null Modem (Cross-Wired) RS232 Serial Adapter, Support Win7/8/10/2000/XP/ANDROID/VISTA/WINCE/LINUX
- Integrated FTDI USB UART Chip;Baud Rate up to 12Mbps, Please intall the FTDI driver before usage . FTDI website download: https://ftdichip.com/drivers/vcp-drivers/. Made by usangreen, The Chip from FTDI Company, But the cabe is from Usangreen.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
USB to DB9 Com Port Male RS232 Serial Adapter Male Null Modem Crossed Converter Cable
Null modem pinout(laptop pc with usb communicate with destop pc (with DB9 com port) ):
2-TXD (yellow), 3-RXD (orange), 5-GND (GND), 7-CTS (green), 8-RTS (brown), 1/4/6/9-NC
USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
The FTDI chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
USB to Null Modem (Cross-Wired) RS232 Serial Adapter
Integrated FTDI USB UART Chip
Baud Rate up to 12Mbps
COM Port assignments maintained across reboot
USB-powered - no external power adapter required
FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
USB to Null Modem (Cross-Wired) RS232 Serial Adapte
USB 2.0 RS232 to DB9 female cable
FTDI+ZT213 chip
USB 2.0 standard, full speed
Baud Rate up to 12Mbps
Null modem pinout(laptop pc with usb communicate with destop pc (with DB9 com port) ):
2-TXD (yellow), 3-RXD (orange), 5-GND (GND), 7-CTS (green), 8-RTS (brown), 1/4/6/9-NC
Null modem pinout(laptop pc with usb communicate with destop pc (with DB9 com port) ):
2-TXD (yellow), 3-RXD (orange), 5-GND (GND), 7-CTS (green), 8-RTS (brown), 1/4/6/9-NC
USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
The FTDI chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
USB to Null Modem (Cross-Wired) RS232 Serial Adapter
Integrated FTDI USB UART Chip
Baud Rate up to 12Mbps
COM Port assignments maintained across reboot
USB-powered - no external power adapter required
FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
USB to Null Modem (Cross-Wired) RS232 Serial Adapte
USB 2.0 RS232 to DB9 female cable
FTDI+ZT213 chip
USB 2.0 standard, full speed
Baud Rate up to 12Mbps
Null modem pinout(laptop pc with usb communicate with destop pc (with DB9 com port) ):
2-TXD (yellow), 3-RXD (orange), 5-GND (GND), 7-CTS (green), 8-RTS (brown), 1/4/6/9-NC
