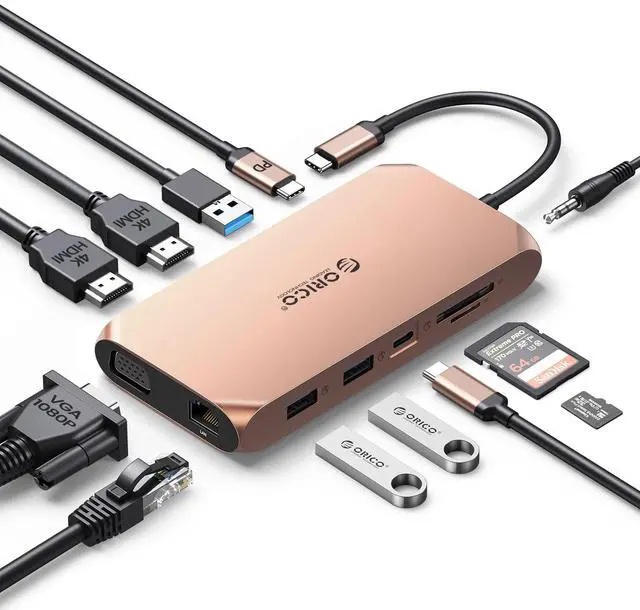

ORICO USB C Dock is a Type-C 12-in-1 multifunctional docking station, by extending USB-A, Type-C data port, HDMI, VGA, DP video interface, SD/TF interface, Gigabit LAN port, 3.5MM audio and other protocol interfaces, suitable for Type-C interface notebooks and other related devices to use, while supporting PD100W to notebooks and this product devices Power supply.
Product features.
Made of aluminum alloy + ABS, high-end, beautiful.

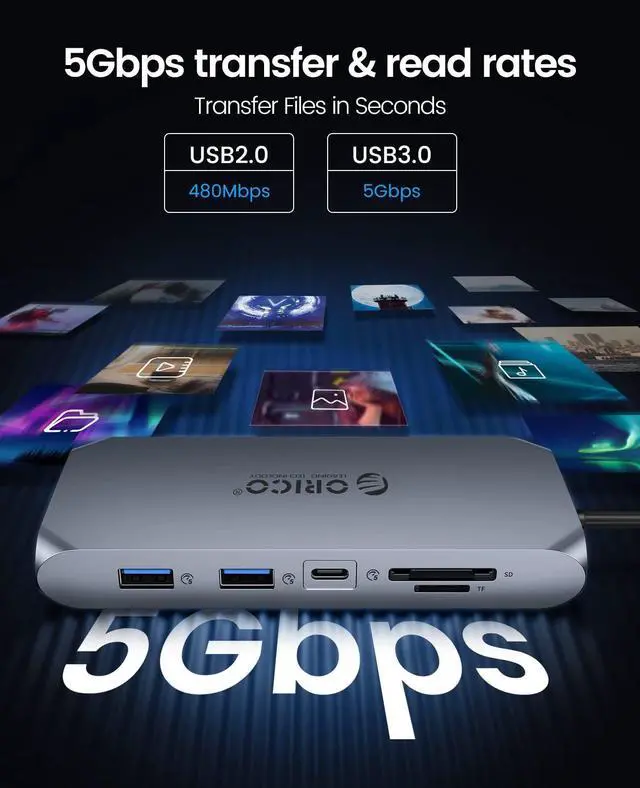

USB-A port supports U disk, card reader, mobile hard disk and other peripherals, interface transfer rate 5Gbps.
Support PD 3.0 (100W) 20V5A power supply, charging the laptop can provide a maximum of 100W.
Support SD 3.0 card reading, support up to 2T.
RJ45 network port supports Gigabit bandwidth, while backward compatible with 10/100M.
Can be connected to Type-C interface U disk and other related devices to use, the transfer rate of 5Gbps.
Full drive-free support for Windows and Mac OS systems.
Core points.

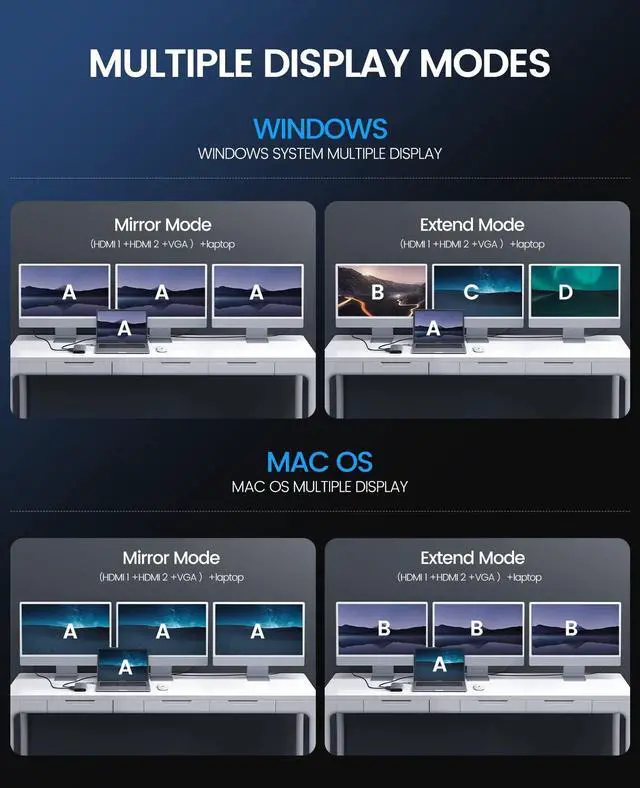

Support mirroring/extension mode under MAC/WIN system
Product Name: Type-C 12-in-1 RGB docking station
Product material: aluminum alloy + ABS
Product Size: 131.3 *64*18mm
Color: rose gold / gray / silver
Input interface: Type-C

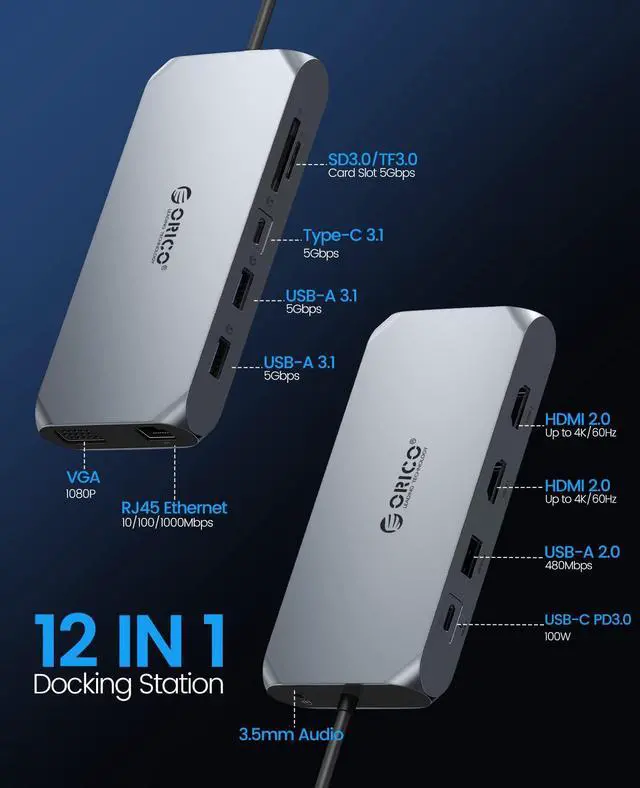

Input interface.
1. Type-C PD 3.0 100W x 1;
2. USB-A 3.1 5Gbps x 2
3. USB-A 2.0 480Mbps x 1
4. Type-C 3.1 5Gbps x 1
5. HDMI 2.0 4K/60Hz x 2
6. VGA 1080P x 1
7. SD 3.0 5Gbps x 1
8. TF 3.0 (TF/SD read together) 5Gbps x 1
9. RJ45 10/100/1000M x 1
10. Audio (CTIA) x 1
Resolution: HDMI: 4K/60Hz VGA: 1080P
Support system: Mac OS, Windows

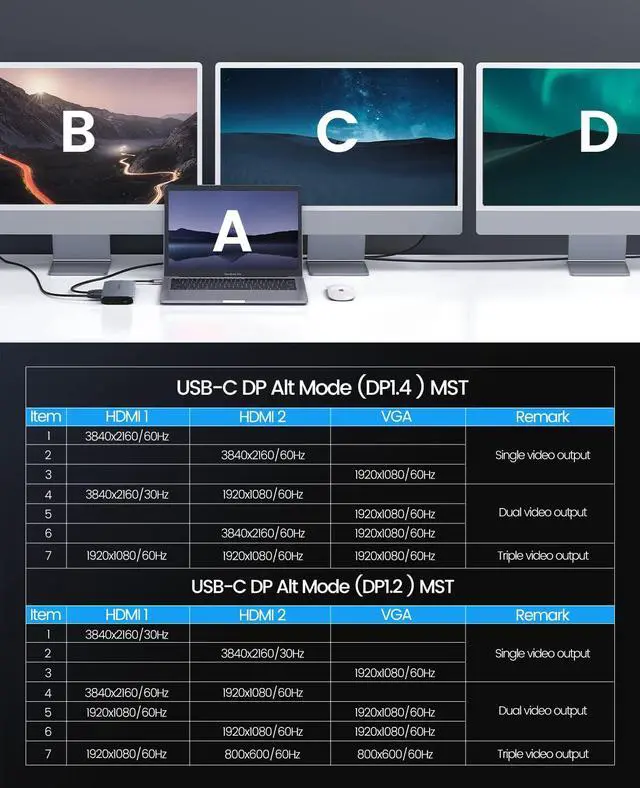

Apple system supports A A A A, A B B B 2 modes
Win system support A A A A, A B C D (MST) 2 kinds of mode
