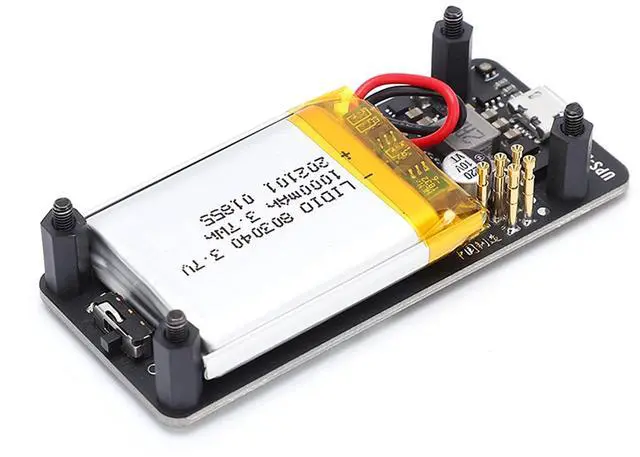

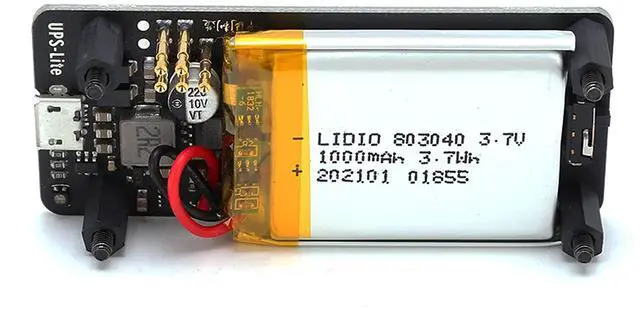

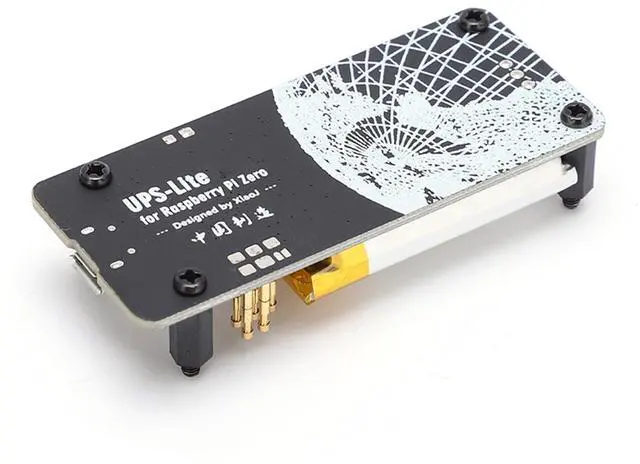

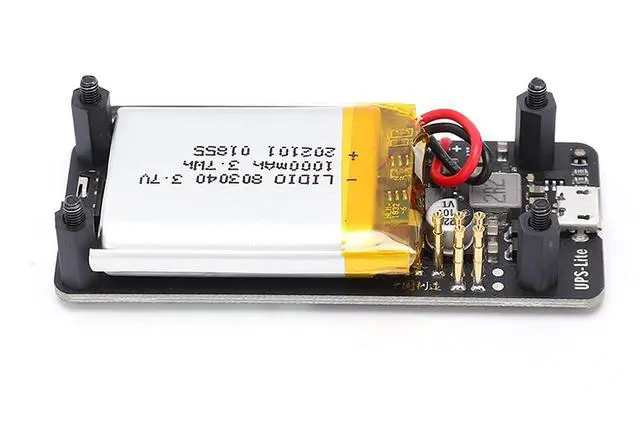

Ups Power Board, 5.1V Output 65x30mm Printed Circuit Board Battery Pack with 1000mAh Lithium Battery UPS Charger for Zero
- Enhanced Battery EfficiencyDesigned with a streamlined power circuit, this UPS Power Board features ultra-low on-resistance MOS tubes, reducing energy loss and significantly improving battery performance.
- IntegrationThe built-in Printed Circuit Board enables precise battery level monitoring, helping users maintain consistent performance and avoid unexpected shutdowns.
- Quick and Easy SetupInstallation of this Battery Pack is simple and convenient, offering up to 6 hours of backup time and saving effort during integration into compact systems.
- Comprehensive Power SupportSupports external adapter detection, simultaneous charging/discharging, and real-time status indication via multicolor LEDs, keeping your system running safely and visibly.
- Sturdy and Compact BuildCrafted from quality printed circuit board material, this UPS module is dependable for extended use and well-suited to embedded computing environments.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: UPS Power Board
Material: Printed Circuit Board
Function: UPS power supply specially designed for.
Charging Current: 400mA
Output Voltage: 5.1V ± 0.1V
Output Current: 1.3A at 5V (no external adapter is plugged in, only battery power is used), 2A at 5V (when the external adapter is inserted).
Power Measurement Accuracy: Error ±2%
Battery Specification: 1 x 3.7V 1000mAh Lithium Battery (built in battery)

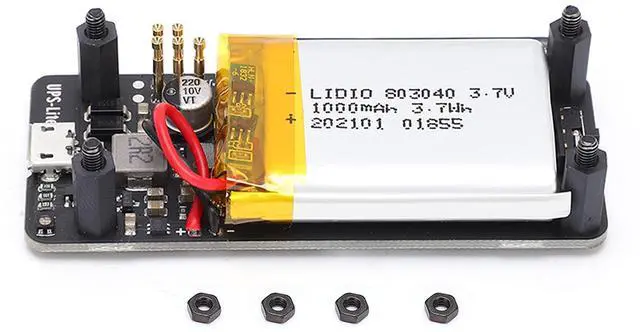

Package List:
1 x UPS Power Board
4 x Nut
Note:
It is recommended to use a power adapter with a power of 5V2A and to the UPS Lite. Because when the lithium battery is low, the external power adapter not only needs to supply power to for, but also needs to provide part of the current to the lithium battery.
Item Type: UPS Power Board
Material: Printed Circuit Board
Function: UPS power supply specially designed for.
Charging Current: 400mA
Output Voltage: 5.1V ± 0.1V
Output Current: 1.3A at 5V (no external adapter is plugged in, only battery power is used), 2A at 5V (when the external adapter is inserted).
Power Measurement Accuracy: Error ±2%
Battery Specification: 1 x 3.7V 1000mAh Lithium Battery (built in battery)
Package List:
1 x UPS Power Board
4 x Nut
Note:
It is recommended to use a power adapter with a power of 5V2A and to the UPS Lite. Because when the lithium battery is low, the external power adapter not only needs to supply power to for, but also needs to provide part of the current to the lithium battery.
