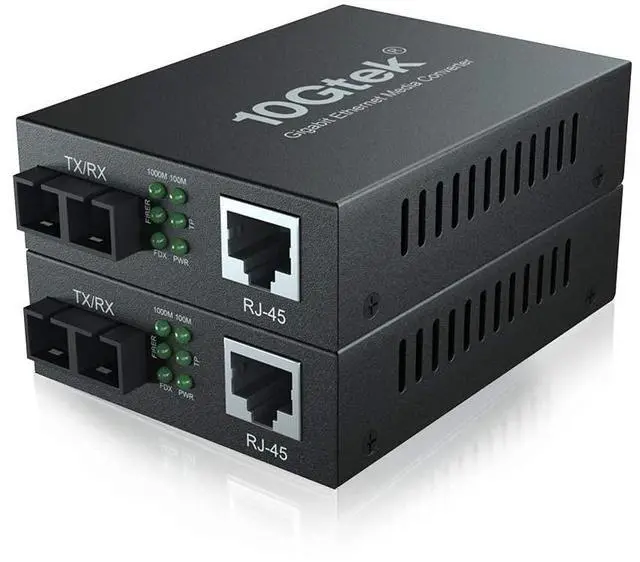

10Gtek Gigabit MultiMode Fiber to Ethernet Media Converter, Dual SC, 1000Base-FX to 10/100/1000Base-Tx Gigabit MMF Fiber SC to Copper RJ45 Ethernet Converter, UL Certified, 2km, Pack of 2

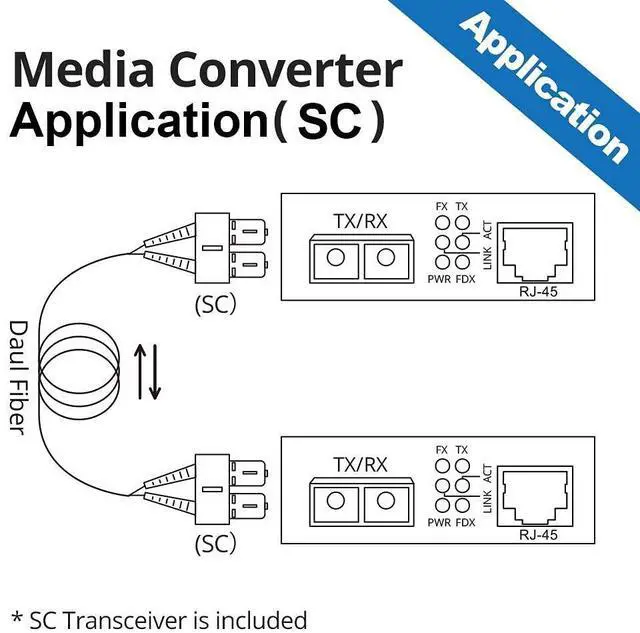

10Gtek's A7S2 series Media Converter is use to expanding existing Gigabit Ethernet networks. The easy implementation and expansion of 1000Base-TX/FX networks can be further assured with this converter.
The converter is completely transparent when connected so the network performs exactly the way it did before - only now, it allows the co-existence of both copper and fiber mediums.
Main Features:
Complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 z, IEEE 802.3 ab, IEEE 802.3 x
Auto negotiation function allows UTP port to auto select 10M, 100M or 1000M
Ethernet port supports MDI/MDI-X auto crossover
Extends distances up to 2km (multi mode fiber)
Auto MDI/MDI-X support on RJ-45 port
Support Full Duplex and Half Duplex
Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status
1Mbit RAM for data buffer
Supports jumbo frame size 9K bytes

Optical Port:
1310nm Multi mode
Connectors: SC connector
Ethernet Port:
Connectors: RJ-45 Connector

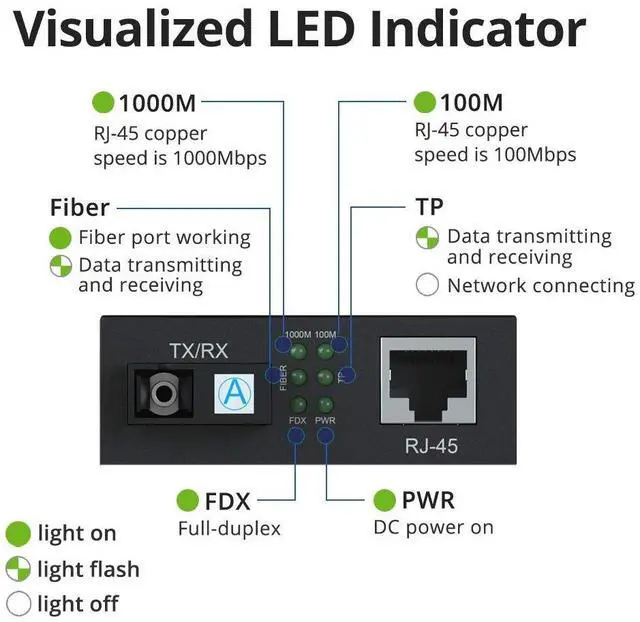

LED Indicators:
FX, TX, Link/Act(Left/Right), FDX, PWR
FX: Light on when fiber speed is 1000Mbps, else light off
TX: Light on when TP speed is 1000Mbps, else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off

Specifications

:

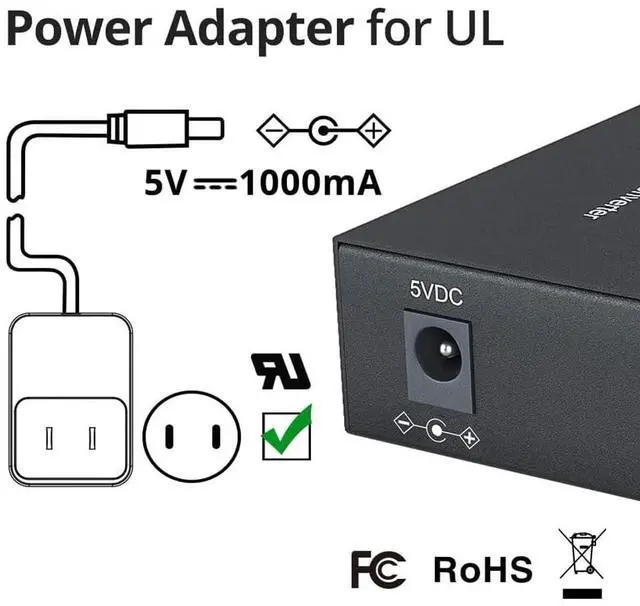

Output voltage: 5VDC 1.0A
Power dissipation: 3 watts
Housing: Metal enclosure
Dimensions: 93 x 71 x 27mm (D x W x H)
Weight: 0.5 kg
Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 70°C
Warranty: 1-year
