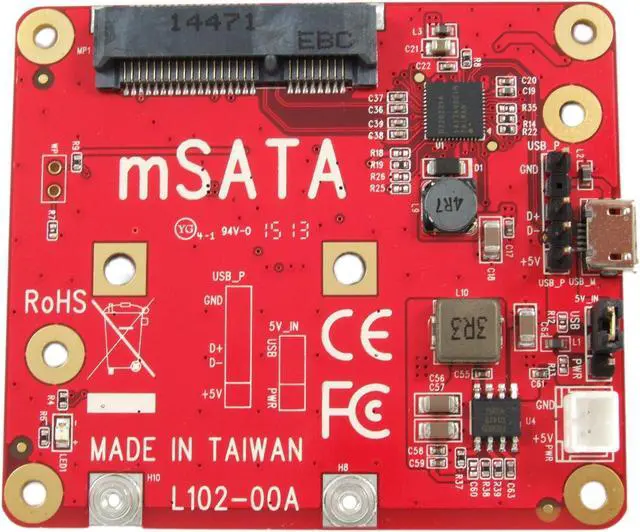

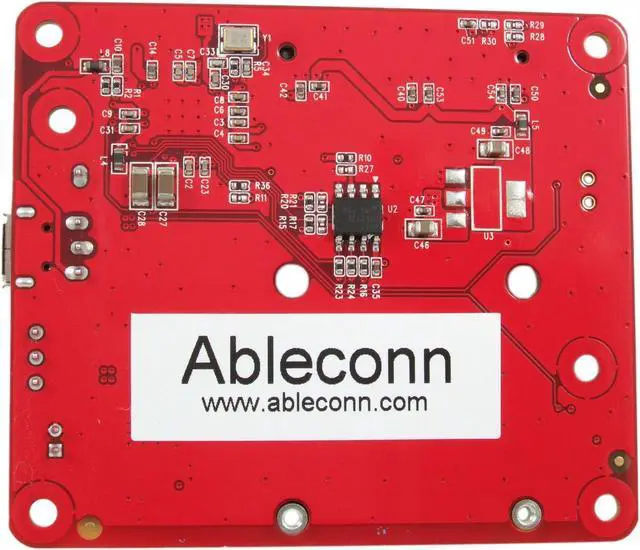

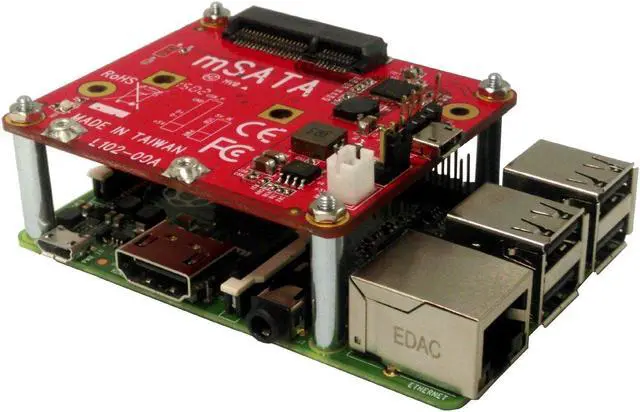

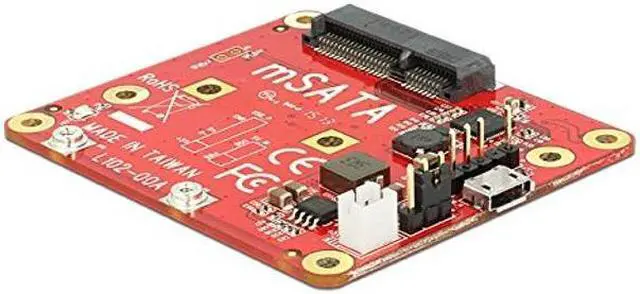

Ableconn PIUSB2MSA USB to mSATA Converter Stackable Expansion Board for Raspberry Pi

The Ableconn Pi accessory enables you to expand functions to your Raspberry Pi. The PIUSB2MSA let you connect mSATA SSD module to your Raspberry Pi via the USB Micro-B port or the on-bard USB pin header.
Specification
* Connector:
- 1 x USB 2.0 Micro-B female
- 1 x USB 5-pin pin header (Pin
Header assignment: 5V, D-, D+, NC, GND)
- 1 x 2-pin power wafer connector (optional external 5V input power)
- 1 x mSATA 6 Gb/s slot (full size)
* Chipset: Renesas uPD720231A
* Data transfer rate:
- USB 2.0 up to 480 Mbps
* Jumper Selection:
- 1 x jumper for setting the power supply via USB (default mode) or 2-pin power wafer connector
* Supports SATA III, SATA II and SATA I mSATA SSD
* Supports ATA/ATAPI Packet command set and LBA 48 addressing mode
* Compliant with Serial ATA Specification Revision 2.6
* Compliant with USB 2.0, OHCI 1.0 a, and EHCI 0.95
* LED indicator for mSATA accessing activity

* Dimensions (LxWxH): 2.6 x 2.4 x 0.4 in / 66 x 61 x 10 mm
* CE, FCC, and Fully RoHS compliant.
* No device driver installation is required.
* Made in Taiwan
System Requirements
* One free USB port
* USB connection cables
Package Contents
* Ableconn PIUSB2MSA USB to mSATA Converter Board
* 2 x mSATA screws for the retention of mSATA module

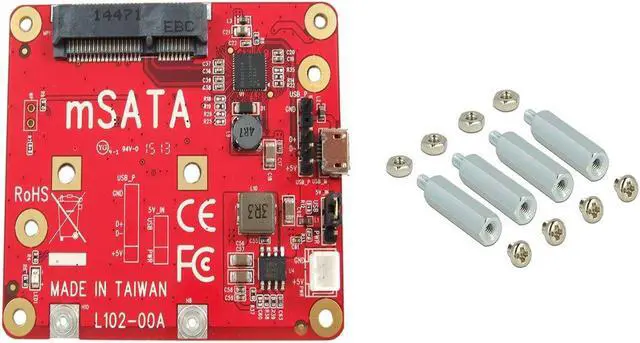

* Multi-Pi mounting accessory: 4 x standoff, 4 x nut, and 4 x screw
* 1x USB-A to Micro-B cable (4 in/10 cm)
* Quick Installation Guide
