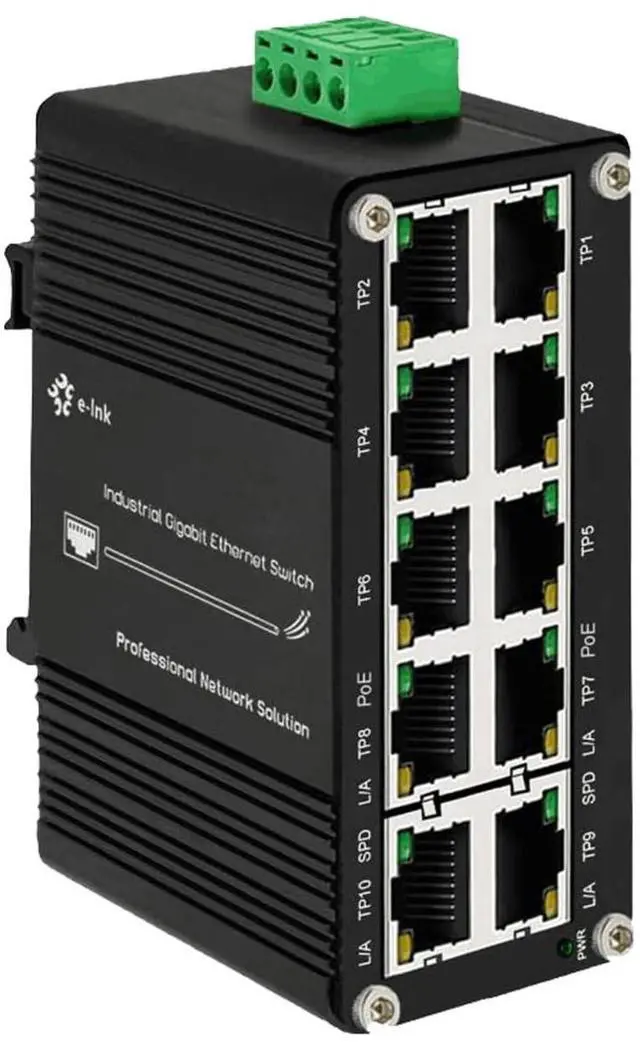

Mini Industrial 10-Port Gigabit PoE+ Switch with 2 Uplink Ports, IEEE 802.3af/at 30W, 12~48V DC Redundant Power Input, Booster Function, Up to 240-watt PoE Budget, Din Rail Mount

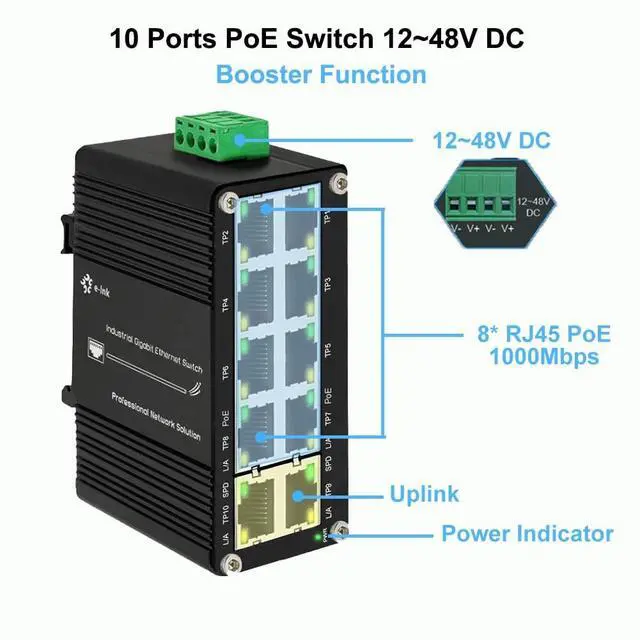

- 10/100/1000BASE-T Ethernet ports- Equipped with 10 10/100/1000Base-T RJ45 ports, up to 8 ports of IEEE 802.3af/at devices powered, and up to 240-watt PoE budget.

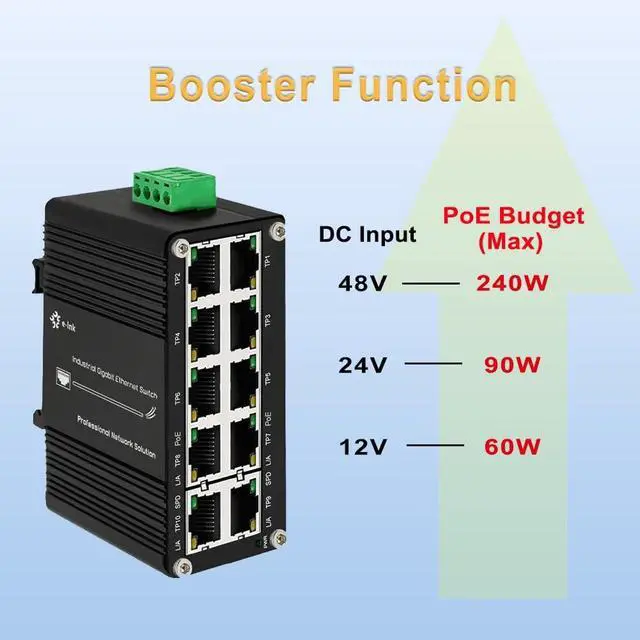

- Booster Function Up to 240-watt PoE budget- PoE Budget: Up to 240-watt PoE budget (48V DC), Up to 90-watt PoE budget (24V DC), Up to 60-watt PoE budget (12V DC)
- 1248V DC Redundant Power Input- 12~48VDC Redundant power with polarity reverses protection function. Power Pin Assignment: 4/5(+), 7/8(-).
- Supports DIN-Rail installation- The gigabit 10 ports switch with industrial grade aluminum alloy housing comes with 35mm din-rail mounting bracket and can install on universal din rail slot. Installation and disassembly are very simple.
- Industrial Grade Quality- IP40 protection grade, it can work in a wide temperature range from -40C to 80C (-40F to 176F) and 6KV lightning protection which make it can adapt to various harsh environments.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10/100/1000BASE-T Ethernet ports- Equipped with 10 10/100/1000Base-T RJ45 ports, up to 8 ports of IEEE 802.3 af/at devices powered, and up to 240-watt PoE budget. ^^ Booster Function Up to 240-watt PoE budget-
PoE Budget: Up to 240-watt PoE budget (48V DC), Up to 90-watt PoE budget (24V DC), Up to 60-watt PoE budget (12V DC) ^^ 1248V DC Redundant Power Input- 12~48VDC Redundant power with polarity reverses protection function.
Power Pin Assignment: 4/5(+), 7/8(-). ^^ Supports DIN-Rail installation- The gigabit 10 ports switch with industrial grade aluminum alloy housing comes with 35mm din-rail mounting bracket and can install on universal din rail slot. Installation and disassembly are very simple. ^^ Industrial Grade Quality- IP40 protection grade, it can work in a wide temperature range from -40C to 80C (-40F to 176F) and 6KV lightning protection which make it can adapt to various harsh environments.
PoE Budget: Up to 240-watt PoE budget (48V DC), Up to 90-watt PoE budget (24V DC), Up to 60-watt PoE budget (12V DC) ^^ 1248V DC Redundant Power Input- 12~48VDC Redundant power with polarity reverses protection function.
Power Pin Assignment: 4/5(+), 7/8(-). ^^ Supports DIN-Rail installation- The gigabit 10 ports switch with industrial grade aluminum alloy housing comes with 35mm din-rail mounting bracket and can install on universal din rail slot. Installation and disassembly are very simple. ^^ Industrial Grade Quality- IP40 protection grade, it can work in a wide temperature range from -40C to 80C (-40F to 176F) and 6KV lightning protection which make it can adapt to various harsh environments.
