VSDISPLAY 12.1 Inch Touchscreen LCD Monitor 1024x768 Aspect Ratio 4:3 600 Nits with Audio Board,for Industrial/Gaming Extra Display
- Specification12.1 inch 1024x768 LCD screen touch monitor;Brightness 600 cd/m (Typ.);Contrast Ratio 700:1 (Typ.) (TM);Viewing Angle 80/80/70/70(Typ.)(CR10) [Left / Right / Up / Down]
- Feature4:3 aspect ratio LCD screen,600 nits high brightness

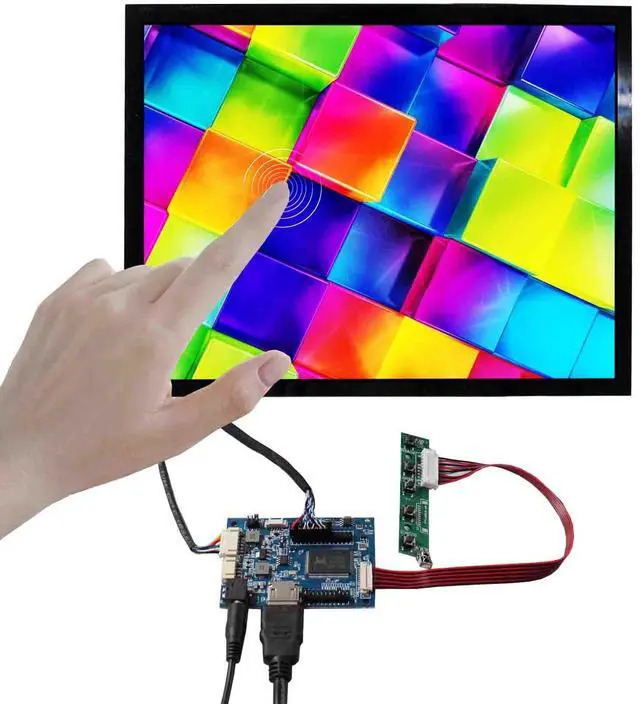

- Touch Function12.1'' LCD screen comes with capacitive touch panel,which is convenient to use and operate on screen,easy to use,play and plug
- BoardVideo Input: ;Audio Input: ;Audio Output: Speaker (4Pin PH1.0 connector)
- Widely ApplicationFor DIY project,replacment panel,industrail monitoring display,automotive display,gaming extend display
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

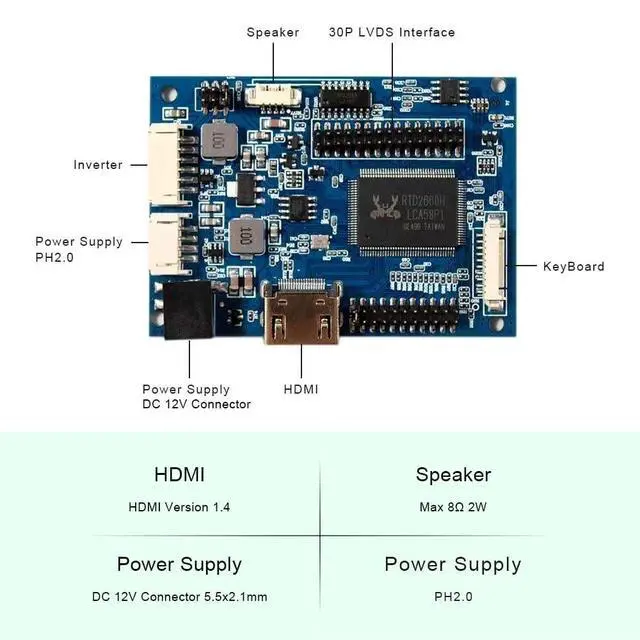

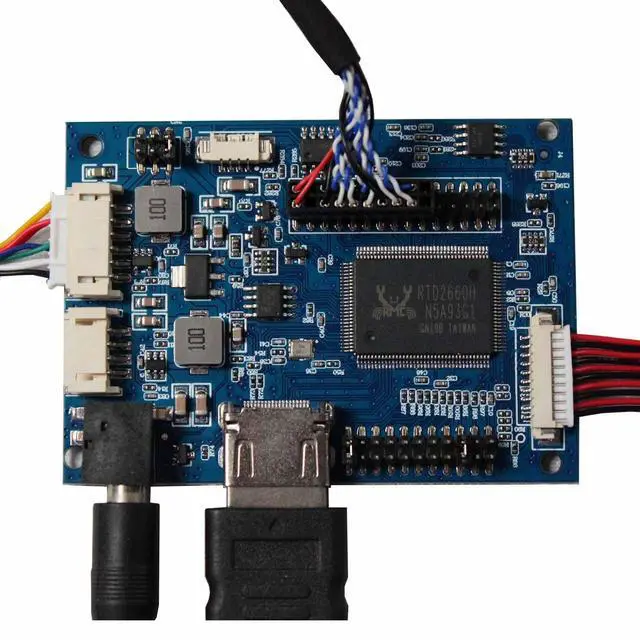

LCD Controller Board: LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: Audio
Input: Audio
Output: Speaker (4Pin
PH 1.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm 12.1" CLAA121XA02DW 1024X768 Capacitive Touch LCD ScreenDisplay Mode TN, Normally White, TransmissiveResolution 1024 (RGB) 768Outline Size 260.5 20413 (HVD) mmDisplay Area 245.76 184.32 (HV) mmBrightness 600 cd/m (Typ. )Contrast Ratio 700:1 (Typ. ) (TM) Viewing Angle 80/80/70/70(Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6/8-bit), Connector, 20 pinsBacklight WLED
Input Voltage 3.3V (Typ.

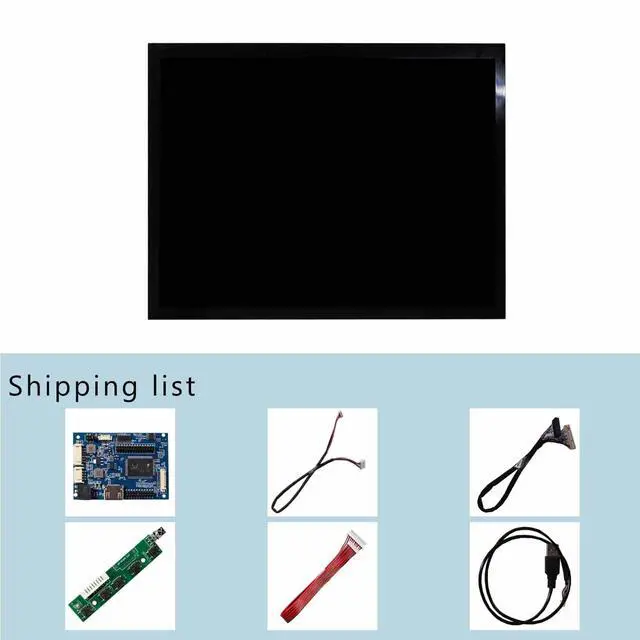

)Packing list: 1 Audio LCD Controller Board VS-TY2660H-V6611 12.1 inch CLAA121XA02DW 1024x768 LCD Screen With Capacitive Touch Panel1 LVDS Cable1 Inverter Board1 Keyboard With Cable
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: Audio
Input: Audio
Output: Speaker (4Pin
PH 1.0 connector)OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mm 12.1" CLAA121XA02DW 1024X768 Capacitive Touch LCD ScreenDisplay Mode TN, Normally White, TransmissiveResolution 1024 (RGB) 768Outline Size 260.5 20413 (HVD) mmDisplay Area 245.76 184.32 (HV) mmBrightness 600 cd/m (Typ. )Contrast Ratio 700:1 (Typ. ) (TM) Viewing Angle 80/80/70/70(Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6/8-bit), Connector, 20 pinsBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 Audio LCD Controller Board VS-TY2660H-V6611 12.1 inch CLAA121XA02DW 1024x768 LCD Screen With Capacitive Touch Panel1 LVDS Cable1 Inverter Board1 Keyboard With Cable
