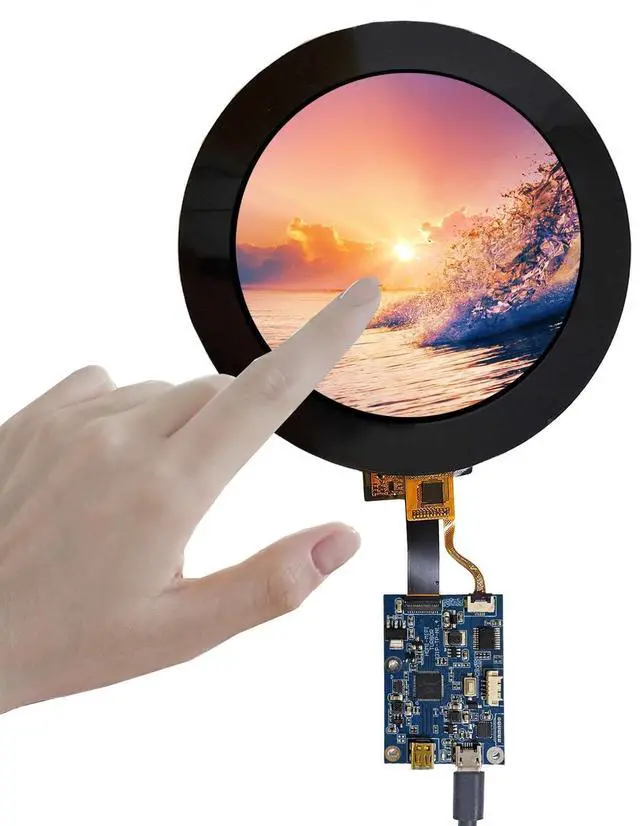

FanyiTek 4" 4 inch 720x720 300nit IPS MIPI LCD Round Touch Screen and Controller Board 31 pins
- Round MIPI screen4" IPS full viewing angle,Great resolution 720x720,outline size:105.6x109.87x2.13(WHD)mm,display area:101.52x 101.52(WH)mm,300nit high brightness ,WLED backlight ,input voltage: 2.8V .

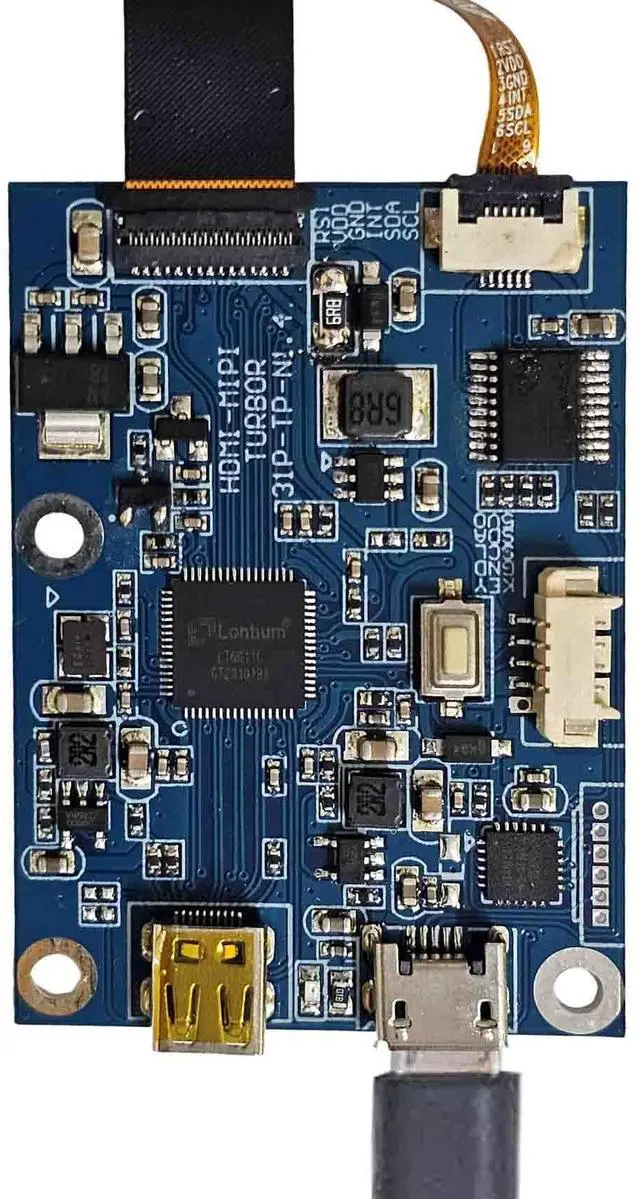

- Controller boardVideo input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
- Capacitive Touch sensor panelThe design of touch panel makes the operation more convenient, No button damage issue for after long time use.
- Input Power5Vdc More than 1A,Pls prepare it seperately .

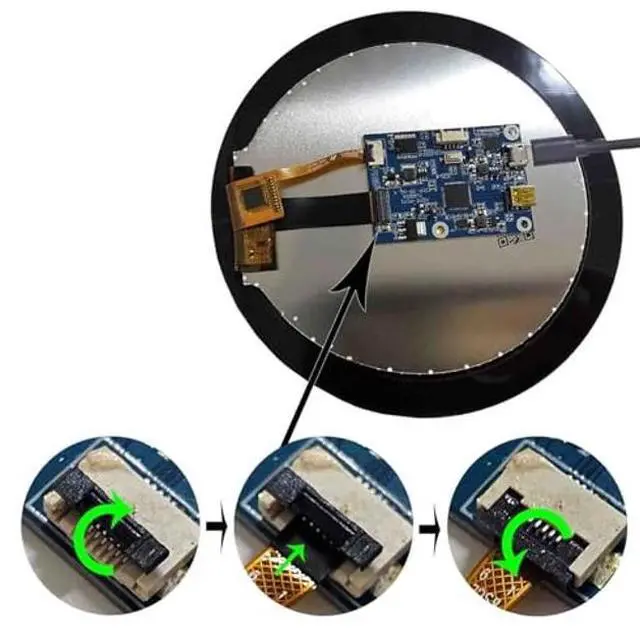

- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the touch screen can work well after powering.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: Input
Power Adapter: USB 5V More than 1A. Come In Standby Model When Not
Input SignalVideo Input: Micro
H/DBoard Size: 50mm x 35mm x 5mm4" VS40016C31 720X720 Capacitive Touch
LCD Screen: Display Mode IPS, Normally White, TransmissiveResolution 720 (RGB) x720Outline Size 132.6 x 132.6 x4 (WHD) mmDisplay Area 101.52 x 101.52 (WH) mmBrightness 300 cd/m (Typ. )Contrast Ratio 300:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Interface Mipi (1ch, 8-bit), 31 pinsBacklight WLED
Input Voltage 2.8V (Typ.
)Packing list: 1 LCD Board14inch VS40016C31 720x720 Capacitive Touch LCD Screen
Power Adapter: USB 5V More than 1A. Come In Standby Model When Not
Input SignalVideo Input: Micro
H/DBoard Size: 50mm x 35mm x 5mm4" VS40016C31 720X720 Capacitive Touch
LCD Screen: Display Mode IPS, Normally White, TransmissiveResolution 720 (RGB) x720Outline Size 132.6 x 132.6 x4 (WHD) mmDisplay Area 101.52 x 101.52 (WH) mmBrightness 300 cd/m (Typ. )Contrast Ratio 300:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Interface Mipi (1ch, 8-bit), 31 pinsBacklight WLED
Input Voltage 2.8V (Typ.
)Packing list: 1 LCD Board14inch VS40016C31 720x720 Capacitive Touch LCD Screen
