BIGTREETECH Upgrade PITFT50 V2.1 Graphic Smart Display DSI Interface 5 inch LCD Touch Screen Suitable for Raspberry-Pi
- This is a 5-inch LCD touch screen with a resolution of 800 x 480 for Raspberry-Pi. The display area can reach 108 x 64.8mm
- Adapt to the Raspberry-Pi DSI display interface, directly driven by DSI; with a capacitive touch panel. Supports 5-point touch

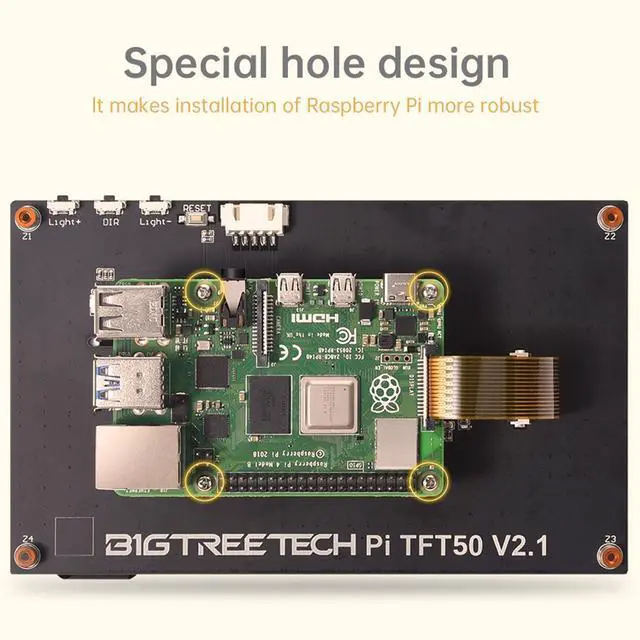

- The unique hole design on the back allows you to install the Raspberry-Pi directly. PI TFT50 display adopts Raspberry-Pi power supply design, no external power supply is needed
- The PI TFT50 display supports hardware backlight adjustment, and the backlight brightness can be adjusted by rotating the potentiometer behind the screen
- If you encounter any problems after receiving the product, please write us via . We have professional technical after-sales personnel to solve your problems
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PI-TFT50 V 2.1 Technical
Voltage: 3.3V (provided by Raspberry Pi display interface)
Maximum Working Current: 320mAScreen
Current: 100mAScreen
Resolution: 800*480Video
Interface: Raspberry Pi DSI
Touch Points: 5 pointsViewing
Angle: 60/70/70/70RGB888-16
Trillion True ColorRefresh Rate: 60HzLuminous
Rate: 280 cd/m2Working
Temperature:
-20-70Dimensions: 121mm x 76mmMounting
Hole Size: M 2.5O uter
Mounting Hole Position: 113mm x 68mmInner
Mounting Hole Position: 58mm x 49mUse
Tutorial: The first step is to insert the SD card with the Raspberry-Pi system into the Raspberry-PI.
Step 2: Connect the DISPLAY interface of the 5-inch touch screen to the DISPLAY interface on the Raspberry-Pi through the provided FPC cable.
Step 3: After powering on the Raspberry-Pi, you can use the 5-inch touch screen.
Specifications
: WorkingVoltage: 3.3V (provided by Raspberry Pi display interface)
Maximum Working Current: 320mAScreen
Current: 100mAScreen
Resolution: 800*480Video
Interface: Raspberry Pi DSI
Touch Points: 5 pointsViewing
Angle: 60/70/70/70RGB888-16
Trillion True ColorRefresh Rate: 60HzLuminous
Rate: 280 cd/m2Working
Temperature:
-20-70Dimensions: 121mm x 76mmMounting
Hole Size: M 2.5O uter
Mounting Hole Position: 113mm x 68mmInner
Mounting Hole Position: 58mm x 49mUse
Tutorial: The first step is to insert the SD card with the Raspberry-Pi system into the Raspberry-PI.
Step 2: Connect the DISPLAY interface of the 5-inch touch screen to the DISPLAY interface on the Raspberry-Pi through the provided FPC cable.
Step 3: After powering on the Raspberry-Pi, you can use the 5-inch touch screen.
