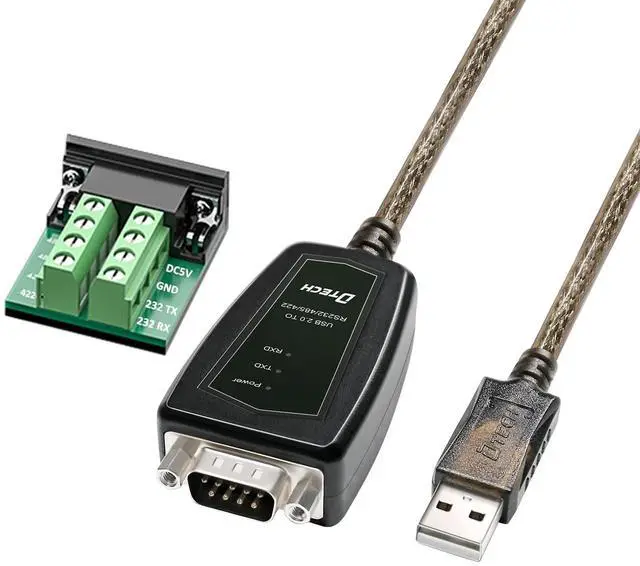

DTECH USB to Serial Adapter RS485 RS422 R232 (3 in 1 Interface) Supports DC 5V with Breakout Board LED Lights for Multi-Kind Control Devices Windows 11 10 8 7 XP Mac (5ft)

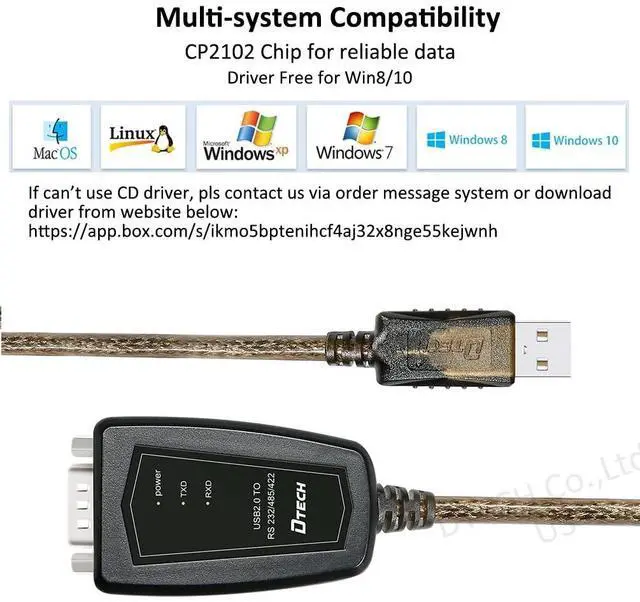

Multifunctional Serial adapter USB to RS232 RS422 RS485 cable with CP2102 chip converts USB into com port RS232, RS422 or RS485 protocol, so you can connect different serial devices to a computer via USB port. 5 ft USB to RS485 serial adaptor cord is a high quality industrial plug and play serial bridge dongle, ideal solution for connecting multiple devices like router, GPS, scanner, controller, label writers, programmer, modem, digital camera, card reader, palm PC and organizer, PLC control, laboratory testing, material handling equipment, etc.

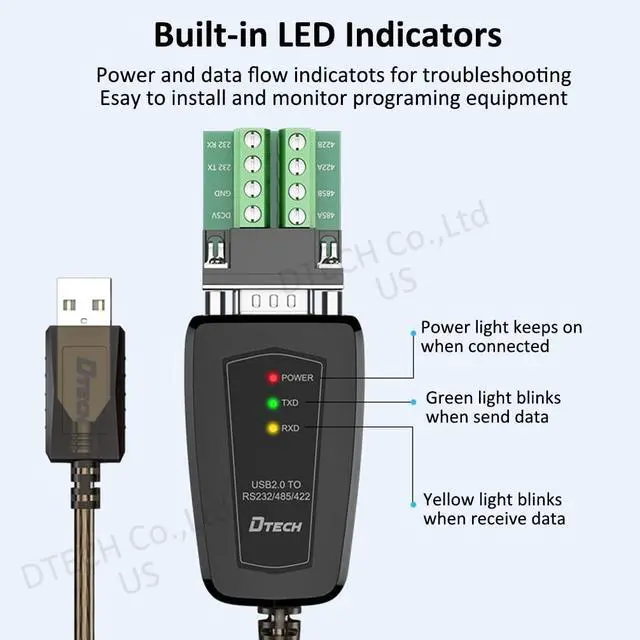

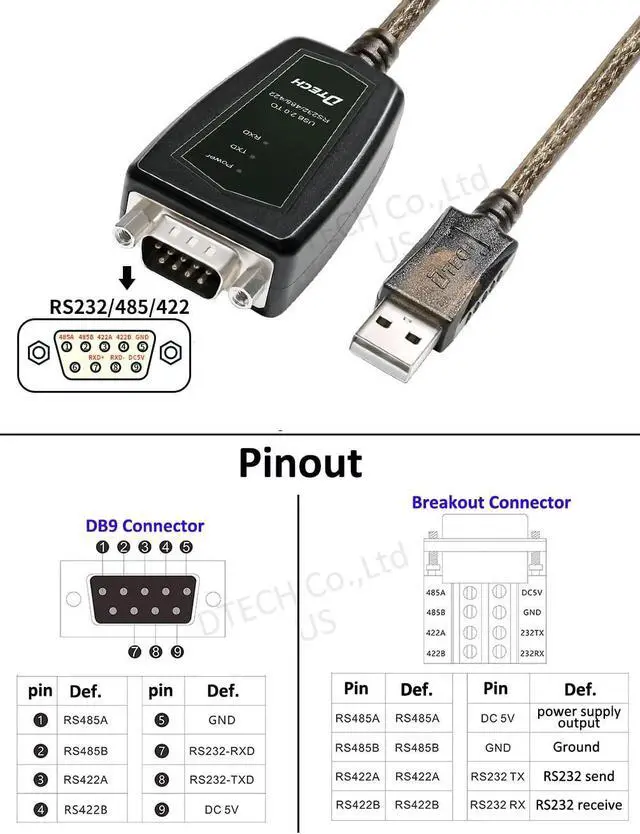

SpecificRS232C/RS422/RS485 TIA/EIA StandardType A USB 2.0 male; 9 pin D-sub connector; 8 Position terminal boardIndicator LED's for Power, TX and RXNo IRQs, DMA or required; No IRQ ConflictsAutomatic send data control. Auto detection of data speed; Zero delay automatic transmissionBuilt-in static and surge protection up to 600W; 8KV, IEC61000-4-2 contact discharge; 15KV, IEC61000-4-2 air gap dischargeSupport DC5V power output (output current depend on computers USB output port) multiple terminals up to 256 RS-485 devicesBaud
Rates: from 300bps to 3Mbps for RS422/485; from 300bps to 115200bps for
RS232Data Bit: 5; 6; 7; 8Stop
Bit: 1; 1.5; 2Parity
Bit: Even; Odd; None; Mark;
SpaceSend and receive buffer: receive 512 bytes, send
512 bytesWorking modes: asynchronous; point-to-point or point-to-multi point; 2-line RS485 half duplex and 4-line RS422 full duplex.

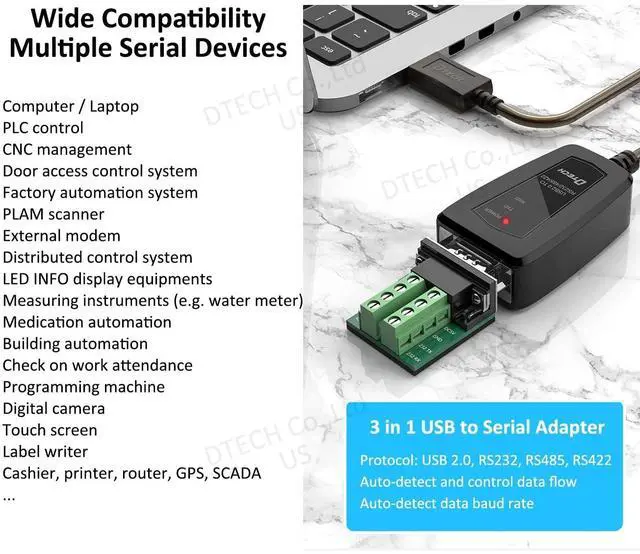

Application: Programming machine, Punch machine, Factory automation system, Distributed control system, wireless network, D-sub LED displays, SCADA, measuring instrument and monitoring system, CNC management, Medical treatment/Building automation, Check on work attendance/Human resource management. Whats Included1x 3-IN-1 USB to RS232/422/485 Adapter 5ft1x Terminal Block1x Driver
