40G QSFP+ LM4 for DELL Force10 407-BBRC,40GBASE-LM4 QSFP+ 1310nm 4 CWDM 1310nm 2km/150m SMF/MMF LC DDM Optical Transceiver Module
- QSFP+ 40GDELL Force10 40Gigabit Ethernet, coding as DELL Force10 407-BBRC also compatible
- 40GBASE-LM440G QSFP+ transceiver module, 40Gbps, single mode and multimode 1310nm 4CWDM, OM3/150m /MMF,SMF/2km, LC duplex connector, Hot Pluggable, support DOM
- ProtocolsCompliant with QDR/DDR Infiniband data ratesUp to 150m transmission on OM3 multimode fiber (MMF) or 2km transmission on single mode fiber (SMF), IEEE 802.3ba, MSA Compliant
- 3 Warranty30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance
- CustomizationFibermall supports regular custom service for your options.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

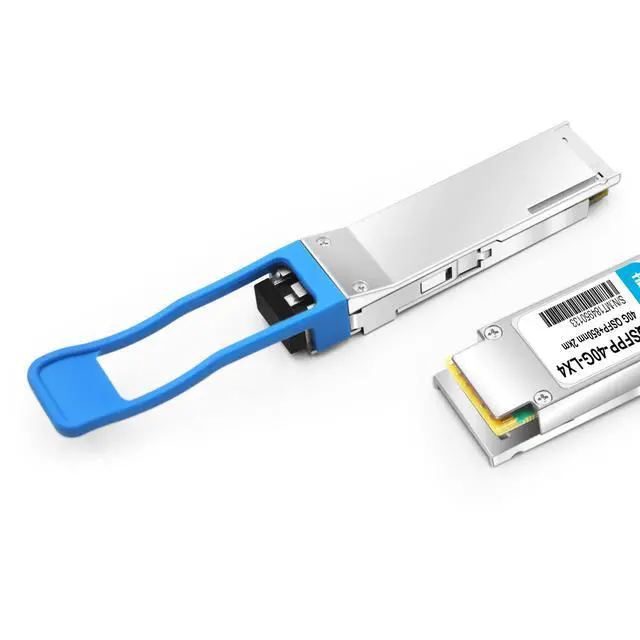

Fiber Mall QSFPP-40G-UNIV-De is a QSFP+ Optical Transceiver Module is applied to 40GBASE Ethernet transmission with links up to 150m/2km over OM3/SMF repsectively, which is compliant with the QSFP+ MSA and IEEE 802.3 ba 40GBASE-LM4 standards.

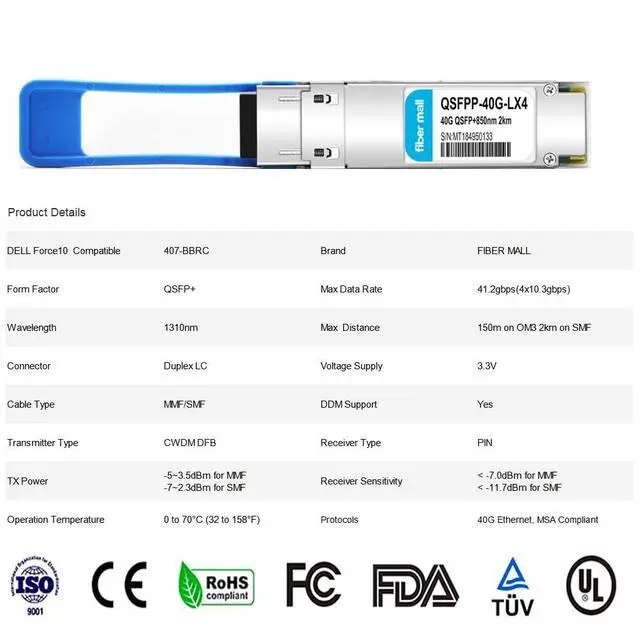

Product Features DELL Force10 Compatible: 407-BBRC

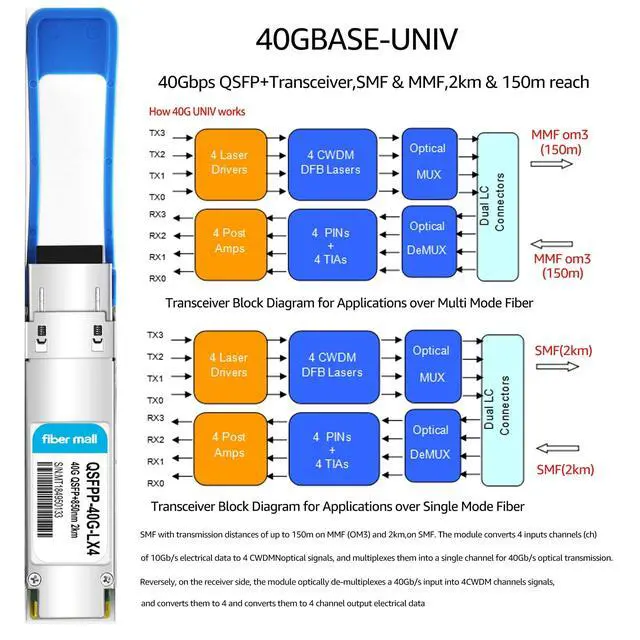

Form Type: 40G QSFP+ 4 CWDM lanes MUX/DEMUX design Up to 11.2G b/s data rate per wavelength QSFP+ MSA compliant IEEE 802.3 ba Electrical Interface Digital diagnostic capabilities Compliant with QDR/DDR Infiniband data ratesUp to 150m transmission on OM3 multimode fiber (MMF) or 2km transmission on single mode fiber (SMF)

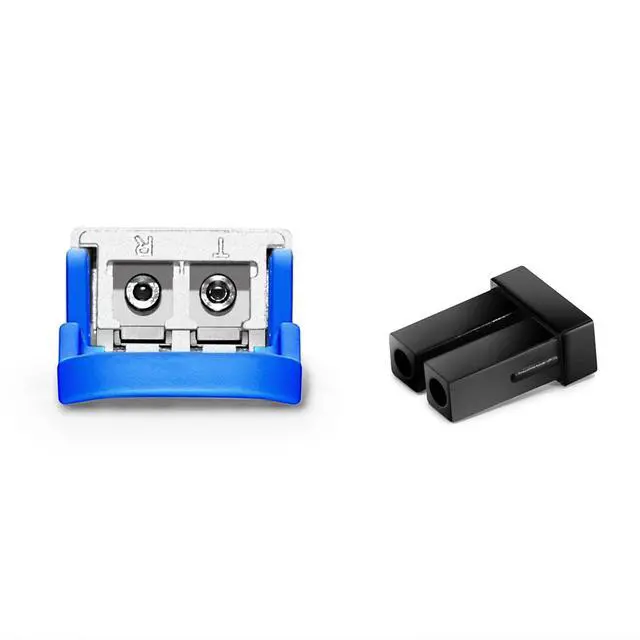

Operating case temperature: 0 to 70oC Maximum power consumption 3.5W LC duplex connectorApplications 40GBASE-LX4 Ethernet Links lnfiniband QDR and DDR interconnects Client-side 40G datacom connections40G Ethernet over MMF and SMFDELL Force10 407-BBRC Compatible 40GBASE-LM4 QSFP+ Optical Transceiver Module for Ethernet and Data Center (SMF/MMF, 1310nm, 150m/2km, LC, DOM)Package 1*sfp dust cover 1 *pair 10Gbps BIDI fiber transceiver module 1* package box
Product Features DELL Force10 Compatible: 407-BBRC
Form Type: 40G QSFP+ 4 CWDM lanes MUX/DEMUX design Up to 11.2G b/s data rate per wavelength QSFP+ MSA compliant IEEE 802.3 ba Electrical Interface Digital diagnostic capabilities Compliant with QDR/DDR Infiniband data ratesUp to 150m transmission on OM3 multimode fiber (MMF) or 2km transmission on single mode fiber (SMF)
Operating case temperature: 0 to 70oC Maximum power consumption 3.5W LC duplex connectorApplications 40GBASE-LX4 Ethernet Links lnfiniband QDR and DDR interconnects Client-side 40G datacom connections40G Ethernet over MMF and SMFDELL Force10 407-BBRC Compatible 40GBASE-LM4 QSFP+ Optical Transceiver Module for Ethernet and Data Center (SMF/MMF, 1310nm, 150m/2km, LC, DOM)Package 1*sfp dust cover 1 *pair 10Gbps BIDI fiber transceiver module 1* package box
