Ferwooh Nextion Display Intelligent 5.0 Inch Resistive Touch Screen 800x480 Serial LCD TFT HMI Display Module NX8048P050-011R Supports Audio Video
- Compared to Nextion Basic and Nextion Enhanced, Nextion Intelligent Display has more powerful hardware in terms of MCU, flash memory and SRAM. Ability to play audio, video and animation.
- 5 inch TFT 800x480 resistive touchscreen display; 128MB flash memory; RGB 65K lifelike colors; 300 nit brightness; Onboard 200MHz MCU;
- Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or device. It is the best solution to replace the traditional LCD and LED To replace Nixie tubes. It is mainly used in the field of the Internet of Things (IoT) or consumer electronics.
- Nextion includes a hardware part (a series of TFT cards) and a software part (the Nextion editor). The Nextion TFT board only uses one serial port for communication. It saves users from the hassle of wiring. It is easy to adapt the Nextion family HMI to existing projects. Users only need to provide it a UART.
- Uplo
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

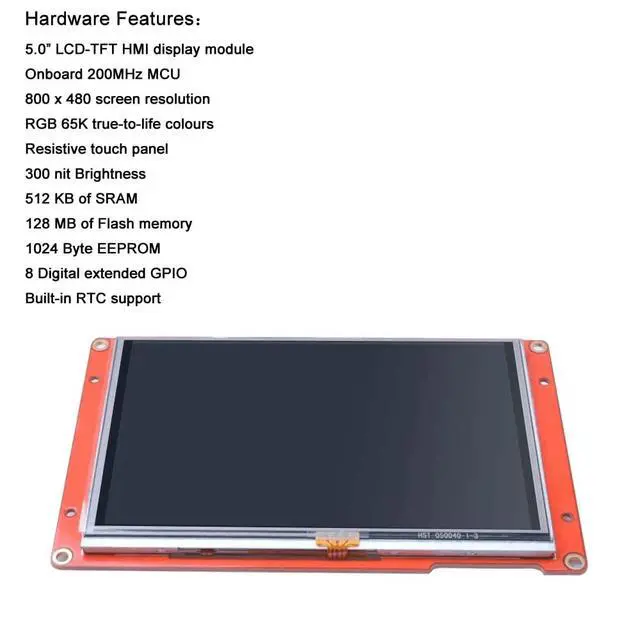

Hardware features: -5 inch LCD TFT HMI display module-800x480 screen resolution-RGB 65K lifelike colors-Resistive touch panel-300 nit brightness-Onboard 200MHz MCU-512KB SRAM-128MB flash memory-1024 bytes EEPROM-XH 2.54 4 pins (+5V, TX, RX, GND) TTL serial interface- 1.25T -2-2A audio port for connecting external speakers-8 Digital Advanced GPIO-(IO0-IO7 supports input, output and component binding event, IO6-IO7 supports PWM)-Built-in RTC supportCompared to the old version of nextion products, Intelligent nextion has the following features: 1. More powerful hardware in terms of MCU, Flash memory and SRAM2. Ability to play audio, video and animation options3. Supports advanced software features and functions such as transparent components, loading effects, drag and drop functions, etc. 4. Built-in RTC5. Data can be saved in flash memory6.
Larger flash storageNote: You can power the NX8048P050-011C from the 5V pin of the microcontroller, but this is not recommended. Working with insufficient power may damage the screen. Therefore, please use the power supply that comes with nextion. This is the English version, additional
documents: Download
document link:
https: //www. youtube. com/results? search_query=Nextion+HMI

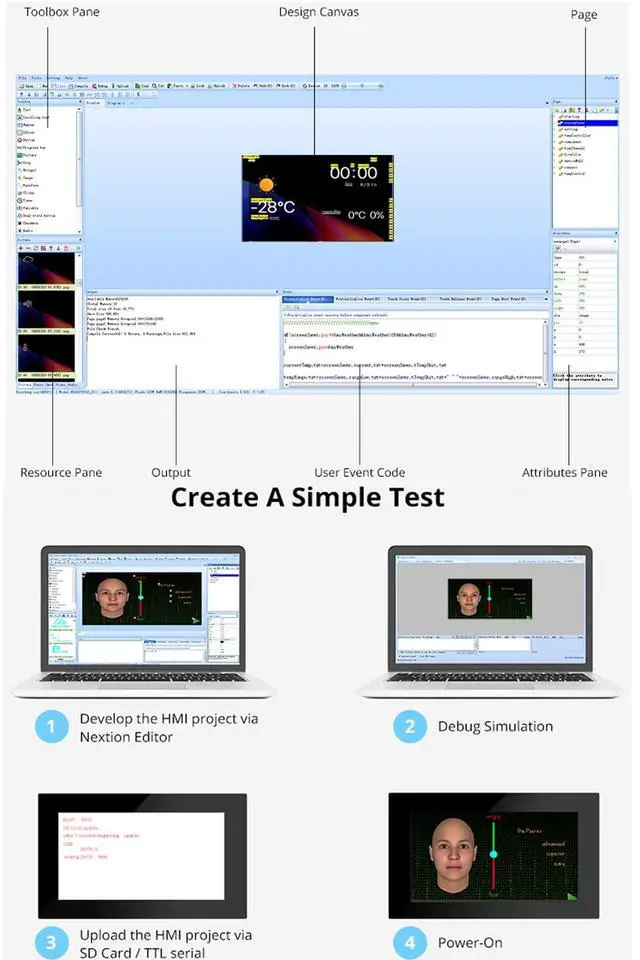

Nextion editor:
https: //www. adrive. com/public/JEVwGg/Nextion%20Editor.
rarMore data sheet:
https: //m. media-/images/S/aplus-media/sc/8f1662a6-78bc-457e-b53d-13fb9d268bf9.

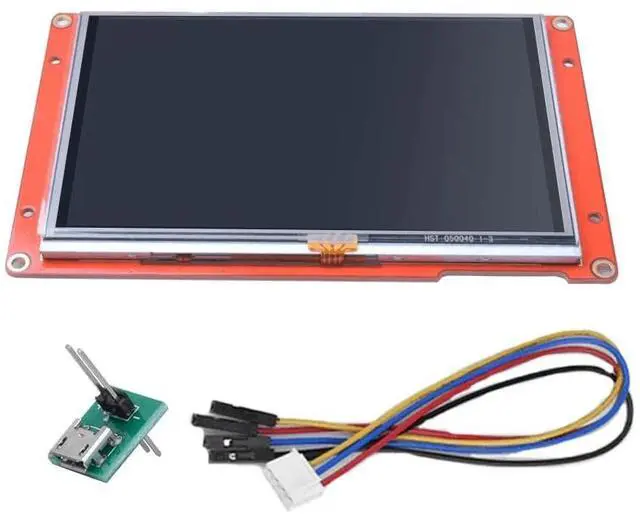

pdfPackage included: 1 x 5.0 inch NX8048P050-011R Nextion Resistive1 x 2 Pin Test Board1 x HX 2.54 4 Pin Cable
Larger flash storageNote: You can power the NX8048P050-011C from the 5V pin of the microcontroller, but this is not recommended. Working with insufficient power may damage the screen. Therefore, please use the power supply that comes with nextion. This is the English version, additional
documents: Download
document link:
https: //www. youtube. com/results? search_query=Nextion+HMI
Nextion editor:
https: //www. adrive. com/public/JEVwGg/Nextion%20Editor.
rarMore data sheet:
https: //m. media-/images/S/aplus-media/sc/8f1662a6-78bc-457e-b53d-13fb9d268bf9.
pdfPackage included: 1 x 5.0 inch NX8048P050-011R Nextion Resistive1 x 2 Pin Test Board1 x HX 2.54 4 Pin Cable
