$149.99
Meet Your Seller

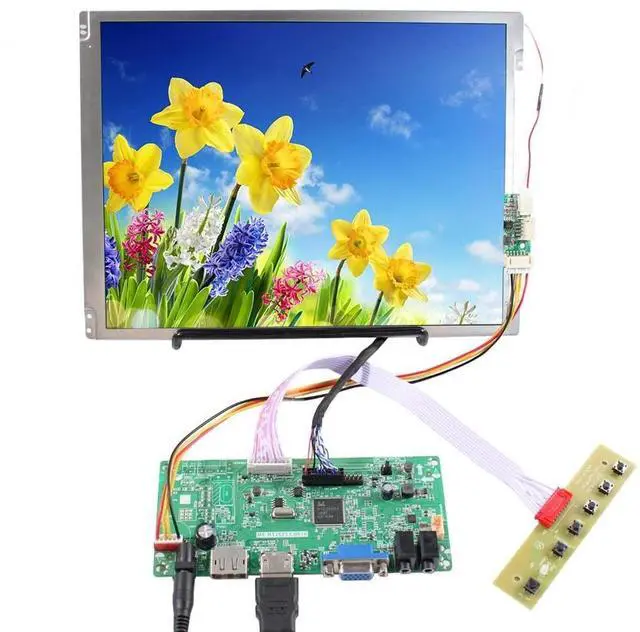

FanyiTek 10.4 inch 800x600 4:3 TFT LCD Screen and DP VGA LVDs Controller Board, for Vide Gaming Display
- 4:3 IPS ScreenDisplay area 211.2x158.4(HV)mm,high brightness 500nit ,WLED backlight ,Viewing Angle 80/80/60/80, With left and right location holes,you can located it according to your demands.
- LCD Controller BoardVideo input:DP VGA ,Audio Output: Speaker (8ohm 2W 4Pin PH2.0 connector Speaker) , Please use in insulated environment.
- Input Power Supply12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.

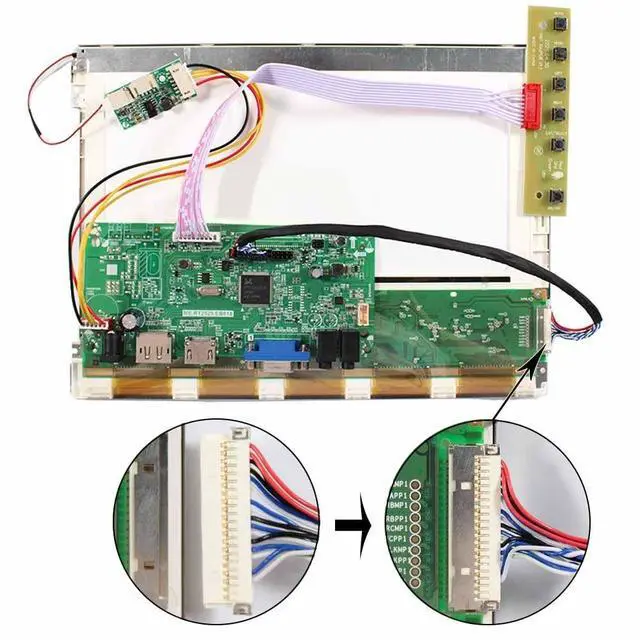

- Plug and playConnecting cables and ports according to link picture details ,power on ,enter into signal ,with correct resolution ,the screen will shows information you want perfectly.

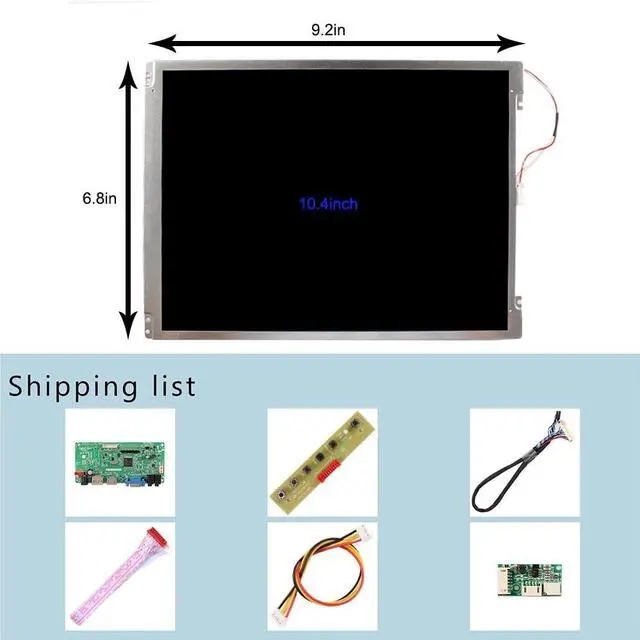

- Packing lists1 DP VGA LCD Controller Board RT2525.EB818,1 10.4inch VS104T-001A 800X600 LCD Screen,1 Converter Board,1 LVDS Cable,1 Keyboard With Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: DP VGA AUDIO LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DP
VGA
Audio Output: Speaker

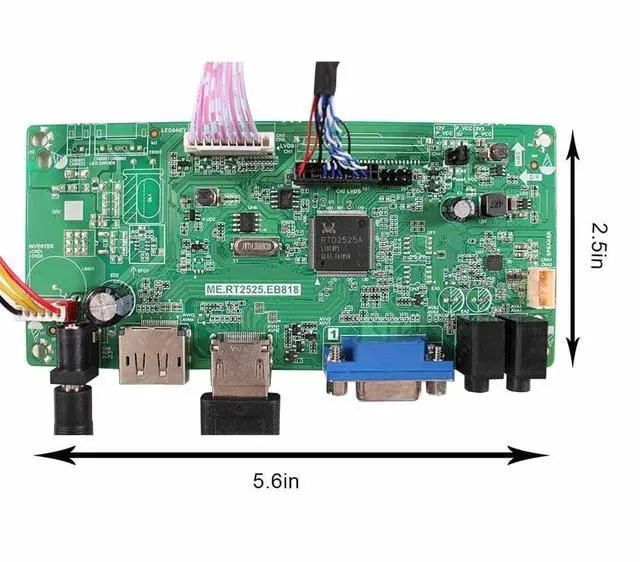

ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139mm x60mm x 17mm 10.4" VS104T-001A 800X600
LCD Screen: Display Mode TN, Normally White, TransmissiveResolution 800RGB)600Outline Size 236 174.34. 9 (HVD) Display Area 211.2 158.4 (HV) Brightness 500 cd/m (Typ. )Contrast Ratio 500:1 (Typ. ) (TM) Viewing Angle 80/80/60/80 (Typ. ) (CR10) [Left / Right / Up / Down]Interface LVDS (1 ch, 6-bit), 20 pins, ConnectorBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 DP VGA LCD Controller Board RT2525. EB8181 10.4 inch VS104T-001A 800X600 LCD Screen1 Converter Board1 LVDS Cable1 Keyboard With Cable
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DP
VGA
Audio Output: Speaker
ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139mm x60mm x 17mm 10.4" VS104T-001A 800X600
LCD Screen: Display Mode TN, Normally White, TransmissiveResolution 800RGB)600Outline Size 236 174.34. 9 (HVD) Display Area 211.2 158.4 (HV) Brightness 500 cd/m (Typ. )Contrast Ratio 500:1 (Typ. ) (TM) Viewing Angle 80/80/60/80 (Typ. ) (CR10) [Left / Right / Up / Down]Interface LVDS (1 ch, 6-bit), 20 pins, ConnectorBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 DP VGA LCD Controller Board RT2525. EB8181 10.4 inch VS104T-001A 800X600 LCD Screen1 Converter Board1 LVDS Cable1 Keyboard With Cable
