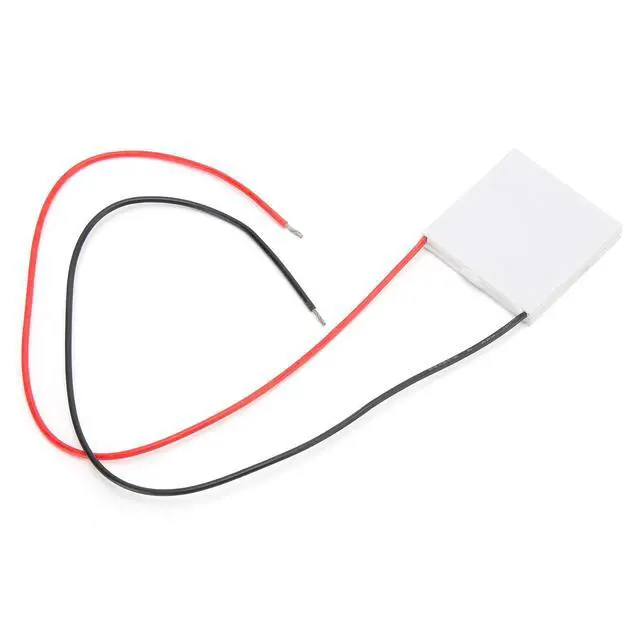

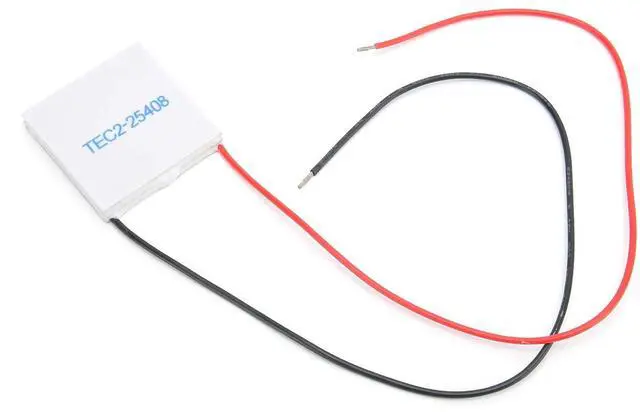

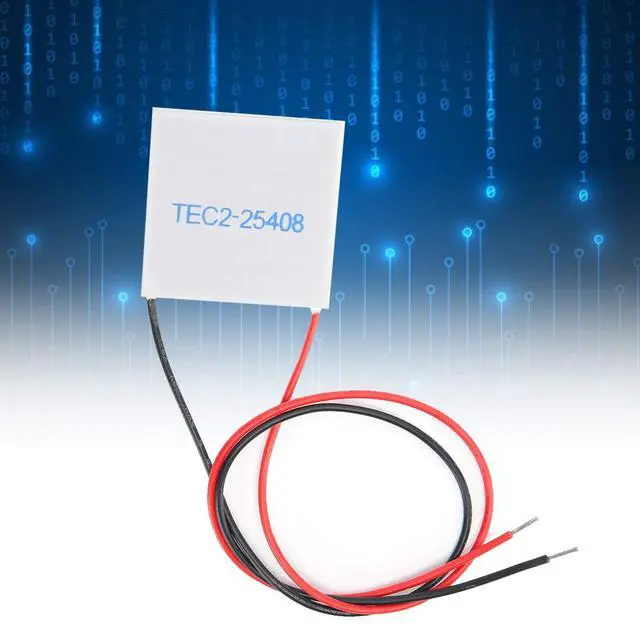

TEC225408 Thermoelectric Cooler,DC12V 2Layer Semiconductor Refrigeration Tablets,40x40mm Heat Sink Cooling Peltier Plate Module

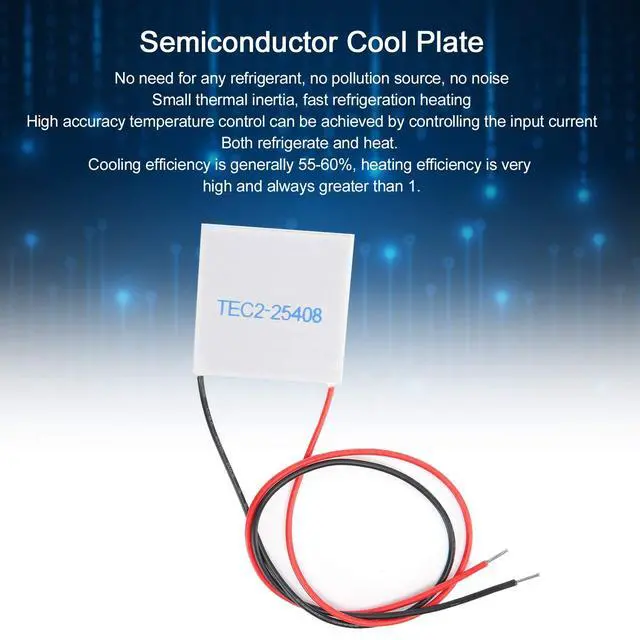

- Semiconductor cool plate is a currenttransducer type chip. Through the control of input current, highprecision temperature control can be realized. Coupled with temperature detection and control means, it is easy to realize remote control, program control, and computer control to form an automatic control system.
- Semiconductor cooler, can both refrigerate and heat. The cooling efficiency is generally 5560%, but the heating efficiency is very high and always greater than 1. Therefore, using a single piece can replace separate refrigeration and heating systems.
- It does not need any refrigerant, it can work continuously, there is no pollution source, no rotating parts, no rotation effect, no sliding parts, no vibration or noise during work, and easy installation.
- The thermal inertia is very small, fast cooling and heating time. When the hot end has good heat dissipation and the cold end is empty, the cooling plate can up to the maximum temperature difference in less than one minu
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Item
Type: Thermoelectric
CoolerMaterial:
CeramicModel: TEC2-25408Rated
Voltage: DC12VMaximum
Voltage: DC15V (Th=30)Maximum
Current: 8A (U=15V, Th=30)Maximum
Temperature Difference: 80(Qc=0, Th=30)Maximum
Cooling Capacity: 44.2W (T=0, Th=30)Internal
Resistance: 1.4
- 1.8S pecification: 20AWG, L=300mmPackaging
Process: 704
Silicone Rubber SealingAssembly Pressure: 4kgWorking
Temperature: -50-+80Storage
Temperature:
-40-+60Size: Approx. 40x40mm / 1.6 x 1.6 inPackage
List: 1 x
Semiconductor Cool PlateNote: 1. Please allow 01 inch error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
Type: Thermoelectric
CoolerMaterial:
CeramicModel: TEC2-25408Rated
Voltage: DC12VMaximum
Voltage: DC15V (Th=30)Maximum
Current: 8A (U=15V, Th=30)Maximum
Temperature Difference: 80(Qc=0, Th=30)Maximum
Cooling Capacity: 44.2W (T=0, Th=30)Internal
Resistance: 1.4
- 1.8S pecification: 20AWG, L=300mmPackaging
Process: 704
Silicone Rubber SealingAssembly Pressure: 4kgWorking
Temperature: -50-+80Storage
Temperature:
-40-+60Size: Approx. 40x40mm / 1.6 x 1.6 inPackage
List: 1 x
Semiconductor Cool PlateNote: 1. Please allow 01 inch error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
