HangTon TY28 3 Pin 45A Screw Connection Electrical Power Connector, Female Panel Mount Socket and Male Right Angled 90-Degree Cable Plug, Solder-Free Waterproof Quick-Disconnect for Marine Automotive
- TY28 3-pin waterproof free-solder screw crimp connector, easy for wire cable assembly
- Features Waterproof IP68, threaded coupling, quick disconnect. The contact pins of the connector are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance

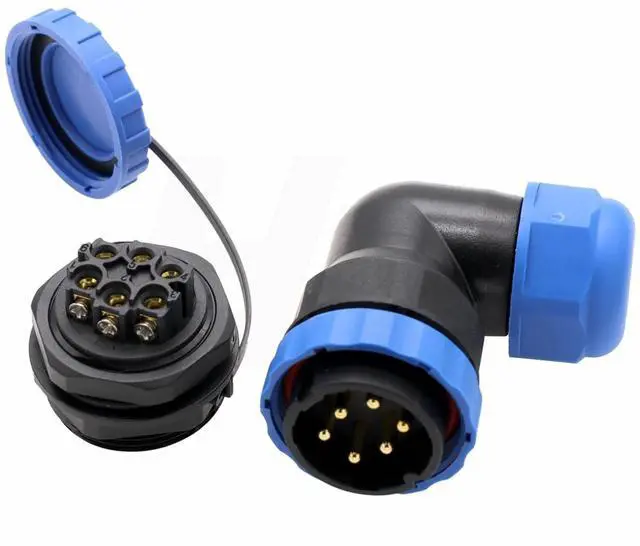

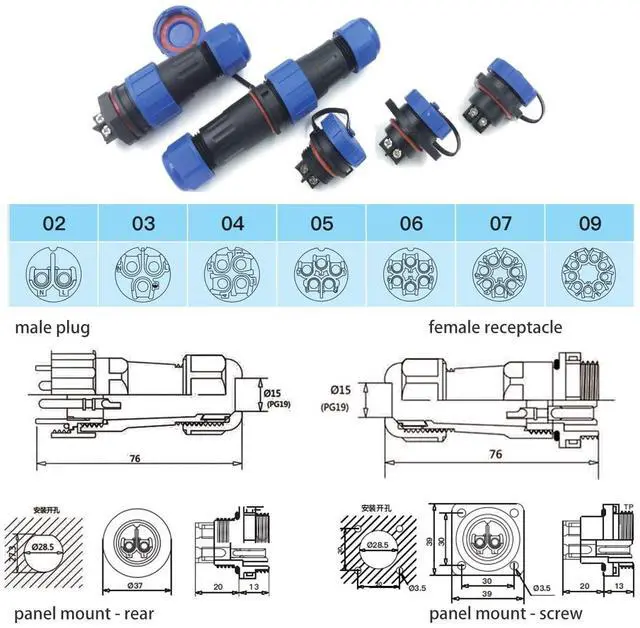

- Rear panel mount female socket and 90-degree angled cable plug with watertight cap. Panel cutout diameter is 28.5mm

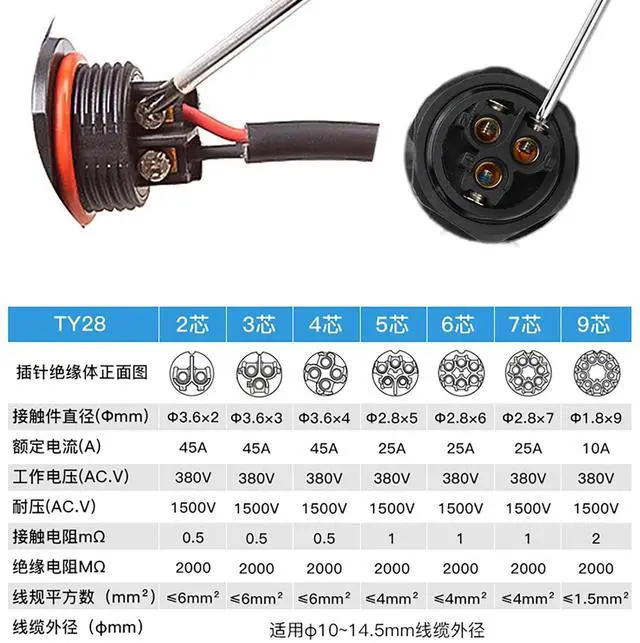

- Rated Voltage/Current AC 380V/45A, Contact resistance 0.5m, Insulation resistance 2000m. Suitable wire outer diameter range 10-15mm, Wire gauge 6mm or 10AWG, Contact Diameter 3.6mm
- Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: The connector can provide a safe and reliable connection in the harsh environment. TY28 series connector is ideal for watertight power equipment applications, outdoor electric tools or appliances, camper van truck power, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box.
TY28:
Model: 2-9
PinIP Rating: IP68Panel
Cutout Diameter: 28.5 mmCable
Outer Diameter Range: 10-15mmCoupling
Type: Threaded
CouplingShell material: Thermoplastic Nylon66,
Fire Resistance: V-0Insert
Material: Thermoplastic PA66, max temperature 200Contact
Material: Pure
copper plated goldWiring way: Free-Solder /
Screw CrimpMating Cycle: >500 timesTemperature
Range: -25~+85Package
Includes: 1 x Angled Plug with male contact1 x Socket with female contact1 x Waterproof / Dustproof Cap
Specifications
:TY28:
Model: 2-9
PinIP Rating: IP68Panel
Cutout Diameter: 28.5 mmCable
Outer Diameter Range: 10-15mmCoupling
Type: Threaded
CouplingShell material: Thermoplastic Nylon66,
Fire Resistance: V-0Insert
Material: Thermoplastic PA66, max temperature 200Contact
Material: Pure
copper plated goldWiring way: Free-Solder /
Screw CrimpMating Cycle: >500 timesTemperature
Range: -25~+85Package
Includes: 1 x Angled Plug with male contact1 x Socket with female contact1 x Waterproof / Dustproof Cap
