KNACRO DC 36V 48V (30V - 60V) to DC 12V 20A 240W Power Converter Regulator Waterproof Electronic Stabilizer Automatic Power-Down Waterproof Module
- Industry grade DC 36V 48V (30V-60V) to 12V step-down converter. Auto-recovery when device is back to normal operating. Easy DC-DC Changing.
- Adapted with synchronization rectification technology and built-in smart chip, KNACRO Voltage Converter provides over/under voltage input, overload, overhead, and short circuit full protection

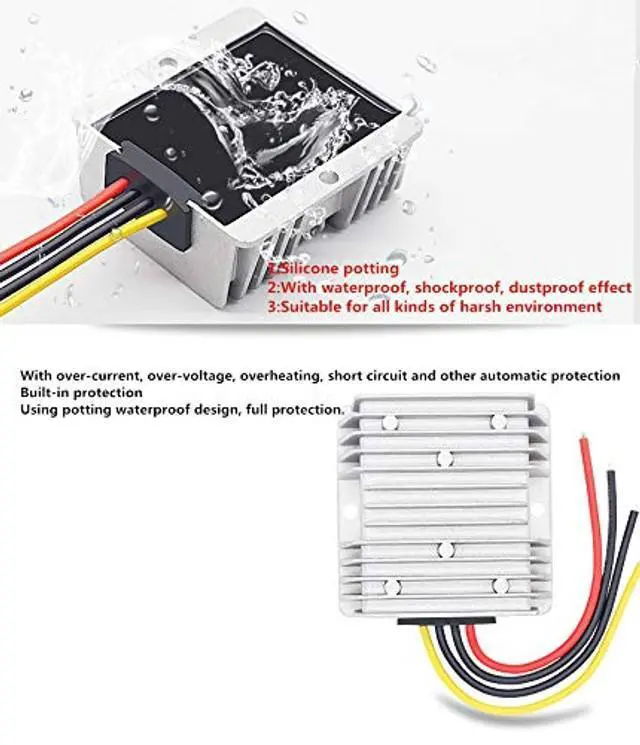

- Designed with aluminum shell and silicone sealed, no worry of using in rainy weather. Anti-humidity, dust-proof.
- High power 240w, widely used in motor, dashcam, car truck, vehicle, golf cart, led strip light, electric fan, camera, light ,screen, monitoring system, solar pad and DIY etc.
- Built-in over/under voltage input, overload, overheat, and short circuit protection.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Descriptions: -KNACRO Waterproof Power Converter Regulator adopts synchronous voltage regulator technology, full import original components, can will convert unstable voltage DC 48V to stable DC 12V 20A output. -The import high heat conduction organic silica gel filling and sealing technology-Widely used in car LED screen, GPS navigation, MP3, MP4, car DVD, hard disk player, stereo. -Aluminium alloy shell with good heat conduction, waterproof, or other harsh environment. -IP67 Protection grade, waterproof and anti-shock protection. -More than 96% power conversion efficiency. -Si-Fe Cores magnetic loop, high temperature resistance and super stability. Safety Instructional Manual1. The load connected to the output end of the power regulator should not be more than MAX LISTED LOAD POWER, any higher rated load will cause damage to the power regulator. 2. Can not used long time Under the MAX. LISTED LOAD POWER3. Please connect the converter and your device as the wiring diagram provided on above pictureSpecifications: Product
Name: Waterproof
Power Converter RegulatorInput: DC 48VInput
Voltage Range: DC
38V ~ 60VOutput: DC 12V 20A 240WConversion
Efficiency: More Than 96%Overtemperature
Protection: 150CProtection
Grade: IP67Connection
Wire Length: 12cm( 4.7 inches)Mounting
Hole Diameter: 5mm( 0.2 inch)Mounting
Hole Distance: 65mm( 2.56 inches)Body
Size: 74mm x 74mm x 32mm (L*W*H)
Net Weight: 246gPackage
Content: 1 x Waterproof Power Converter Regulator
Name: Waterproof
Power Converter RegulatorInput: DC 48VInput
Voltage Range: DC
38V ~ 60VOutput: DC 12V 20A 240WConversion
Efficiency: More Than 96%Overtemperature
Protection: 150CProtection
Grade: IP67Connection
Wire Length: 12cm( 4.7 inches)Mounting
Hole Diameter: 5mm( 0.2 inch)Mounting
Hole Distance: 65mm( 2.56 inches)Body
Size: 74mm x 74mm x 32mm (L*W*H)
Net Weight: 246gPackage
Content: 1 x Waterproof Power Converter Regulator
