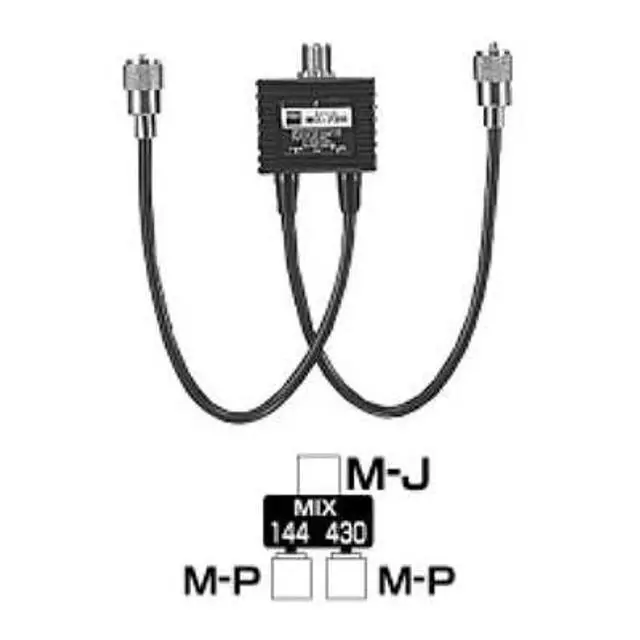

Main image of Diamond Antenna MX-72H Duplexer 1.630 MHz (HF), 140150 MHz (2 m), 400460 MHz (70 cm), SO-239 Input / 2 PL-259 Outputs

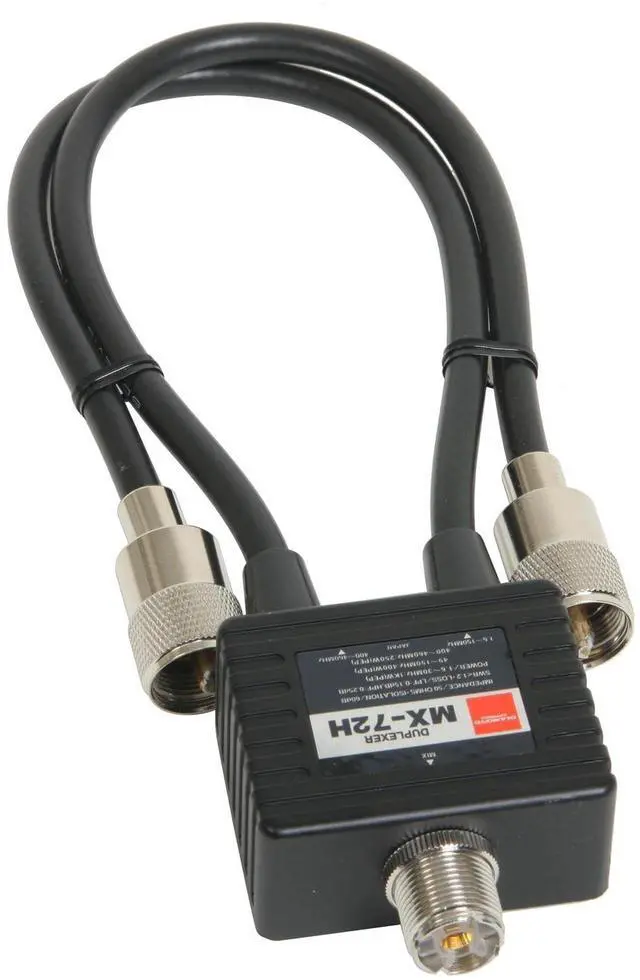

Alt view image 2 of 4 - Diamond Antenna MX-72H Duplexer 1.630 MHz (HF), 140150 MHz (2 m), 400460 MHz (70 cm), SO-239 Input / 2 PL-259 Outputs

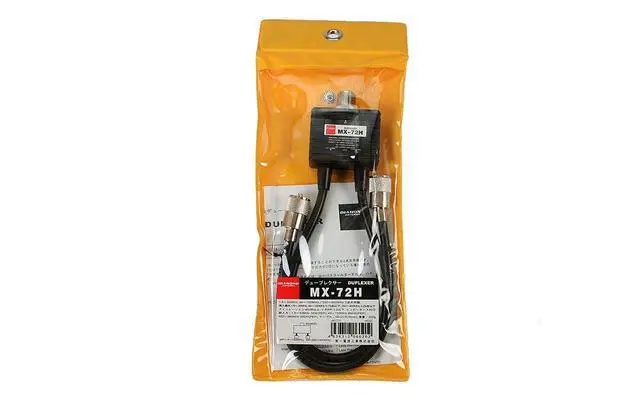

Alt view image 3 of 4 - Diamond Antenna MX-72H Duplexer 1.630 MHz (HF), 140150 MHz (2 m), 400460 MHz (70 cm), SO-239 Input / 2 PL-259 Outputs

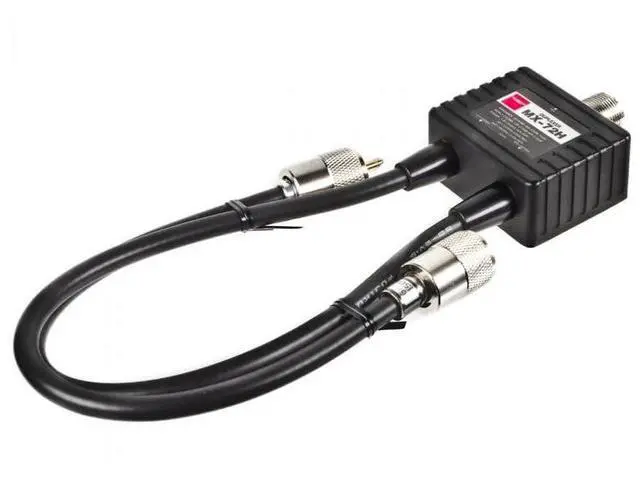

Alt view image 4 of 4 - Diamond Antenna MX-72H Duplexer 1.630 MHz (HF), 140150 MHz (2 m), 400460 MHz (70 cm), SO-239 Input / 2 PL-259 Outputs

Shop All BoYata Products | Visit ApexDash Store

Diamond Antenna MX-72H Duplexer 1.630 MHz (HF), 140150 MHz (2 m), 400460 MHz (70 cm), SO-239 Input / 2 PL-259 Outputs

Duplexer, Mix SO-239, Low Pass PL-259 1.6-30+140-150 MHz, Hi Pass PL-259 400-460 MHz, 12 in. Cables
Multi-Band Filtering: Cleanly separates or combines HF, 2 m, and 70 cm bands through high-quality LPF/BPF/HPF sections.
Robust Power Handling: HF: up to 1 kW PEP 2 m: up to 400 W PEP 70 cm: up to 250 W PEP
Minimal Signal Loss: Insertion loss under 0.15 dB (HF) and 0.25 dB (70 cm) ensures high-efficiency operation.
Excellent Band Isolation: Over 60 dB isolation minimizes interference between HF and VHF/UHF paths.
50 Standard Impedance: Matches conventional coaxial and transceiver systems for seamless integration.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Diamond Antenna Duplexers are just what you need when splitting HF, VHF, or UHF signals. These duplexers may be used for combining two transceivers into one coax feed line. They are ideal for connecting HF/VHF devices, compatible with ICOM IC-706 and IC-7000 series, and Yaesu FT-857 series, with two antenna ports, to a single feed line multi-band antenna, like the Diamond V7A. Diamond Antenna Duplexers eliminate the need to use an antenna switch and are made with a high-quality aluminum case with a black finish.
