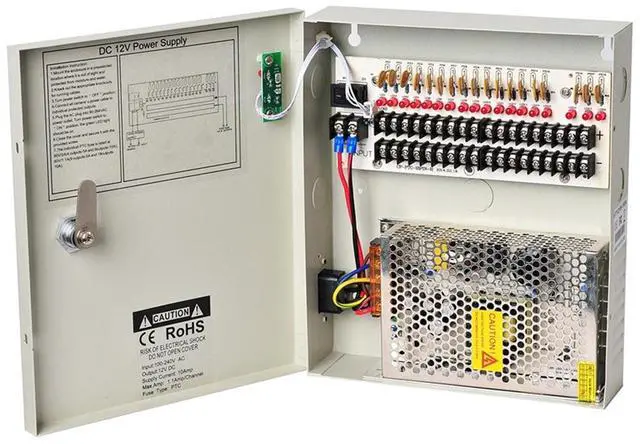

1, General
Protection: Individual PTC (Positive Temperature Coefficient) Fuse and LED indicator on each output, when problem occurs, only affect the individual output, other outputs still working; 2, Short
Circuit Protection: When short circuit occurs, Individual PTC Fuse will cut off the circuit and when breakdown removed, PTC fuse will automatically be restoring circuit; 3, High
voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device; 4, Over
Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state; 5, Application: CCTV Camera, PTZ, IR Illuminators, Video Process, Access Control, etcInput Voltage Range AC90V-264VInput Frequency Range 50Hz-60HzOutput Voltage Range DC12V+/-5%Output Current 10 AmpereOutput Power 120 WattOutput Ripple&Noise 51MVOutput Efficiency 81%Output Channel 18ChannelOutput Fuse Type PTCOutput Fuse Rating 1.1AE nvironment Operatiing Amb. Temp -30~45 20%~90%RHEnvionment Storage Temp -40~85 10%~95%RHProduct Dimension 246*208*52mmProduct Weight 1.63 KgTransmission Distance 100M
