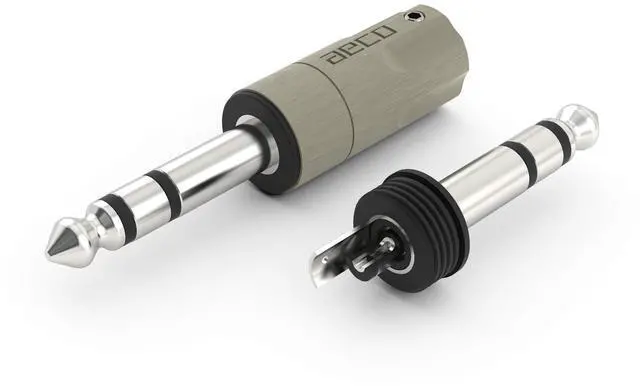

aeco TRS Plug 6.3mm Stereo, AT6-1231S, 1pcs/1set, Silver Plating

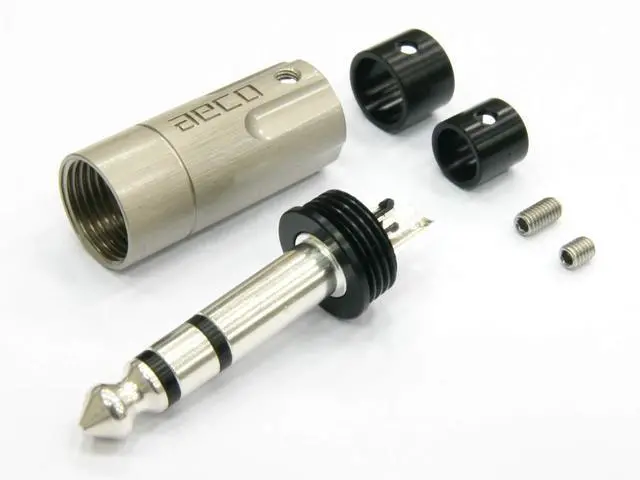

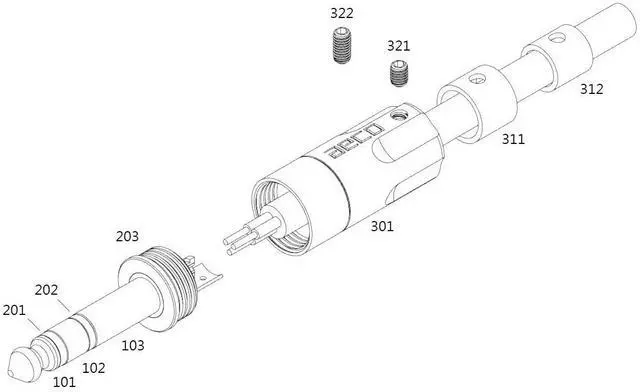

Mechanical structureThe center pin is fixed to the POM insulator by assemble functionEach channel is separate by POM, then assemble with center pin. Use the POM latch through each channel in order to fix the body. The body and the shell locked by screwing. POM sleeve is fixed with end of shell by using screw. The cable hole with small POM sleeve is 6.5 mm, bigger POM sleeve is 8.5 mm Without POM sleeve is 10.5 mm.
NoteThis product is include: screw for cable 4 mm*1pcs and 6 mm*1pcs.
MaterialContact Pin: Tellurium Copper (#C14500 / copper contains over 99%)Body: Tellurium Copper (#C14500 / copper contains over 99%)Insulator: POM (Black)
Lock head: POM (Black)
Shell: Brass
alloy (#C3604)Sleeve: POM (Black)
Screw: IronFinishContact
pin: 120u" Silver plating (no nickel base).
Body: 120u" Silver plating (no nickel base).
Insulator: None.
Head lock: None.
Shell: Satin Nickel + Topcoat.
Sleeve: None.
Screw: Nickel plating. Electrical CharacteristicsContact resistance < 1.0 mOhmDimensionBiggest
OD: 13.5 mmTotal
Length: 63.0 mmPackageVacuum BagRecommend soldering temperatureTemperature Soldering Iron, please keep 400 degree within 10 secondTemperature Soldering Iron, please keep 450 degree within 05 secondProduct production process comply with
RoHSmore info: www. aeco. tw
