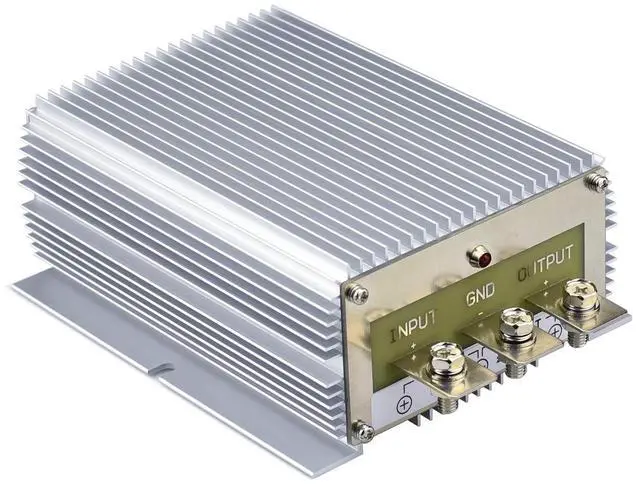

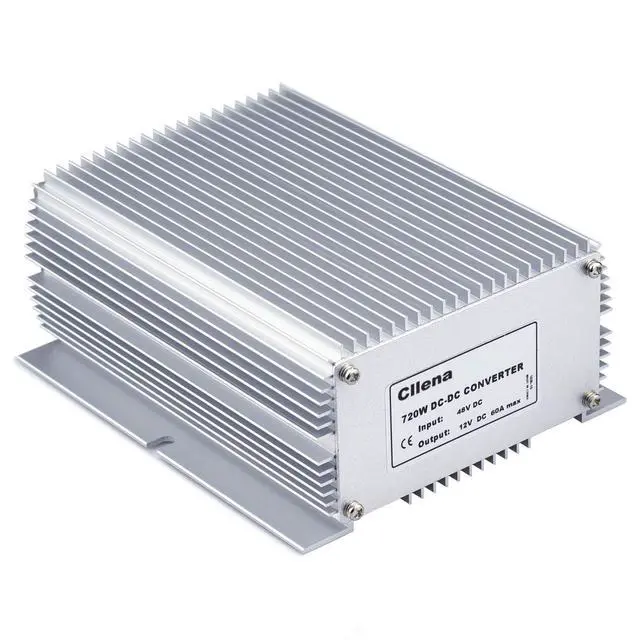

Cllena DC 36-48V to 12V 60A 720W Waterproof DC buck Converter
- Input voltage range: DC 30V-56V; Output voltage: DC 12V(non-adjustable); Output current: 60A (rated working current); Output power 720W.
- High conversion efficiency: The conversion efficiency may reach 95%; Its dynamic response speed is 5 percent 200US, please lower the power or enhance heat radiation when temperature over 40
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
- Wide application: Trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED lights, monitoring system, motors, electronic systems etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

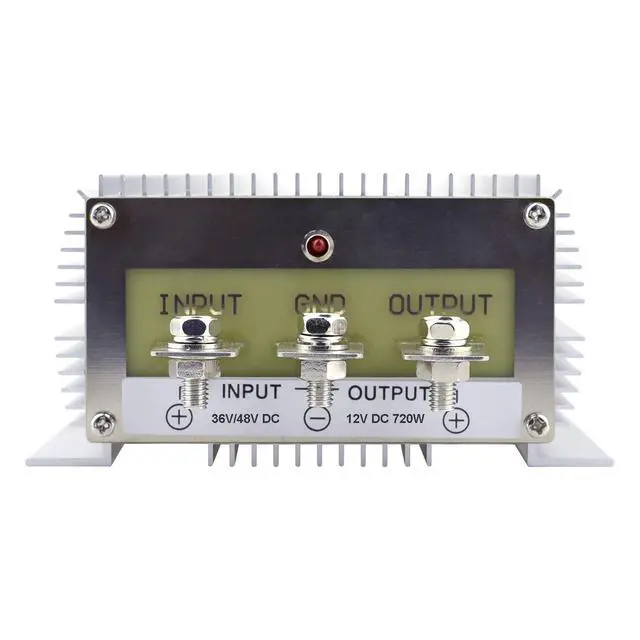

Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to
BAT-Note: * Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine. * Never charge the battery. Keep good air convection. * Never reverse the polarity. * Use the enough big cable to avoid the voltage drop.
Application: 36V/48V DC battery as input power to 12V DC appliances as output load.
Rated Voltage: 48V DCInput
Voltage Range: 30-56V
DCOutput voltage: DC12V 60AOutput
Rated Power:
720WEfficiency: 97% (half load); 95% (full load)
No-load current: <
0.1VR ipple: 200mVpLine
Regulation: 0.2 %Load
Regulation: 0.2 %Voltage
Accuracy: 1.5
%Enclosures: IP68Case
Operating Temperature:
-40~85CWeight:
1550gFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC48V to DC 12V step-down converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included: 1 x DC 48-12V 60A
Voltage ConverterQuestions: How to choose the correct current for loads? For example, if the max current of your load device is 10A, then choose 10A/ 0.8 = 12.5A at least for resistive loads according to international standard. If the load device is motor or compressor, then you may choose 10A/ 0.5 =20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
BAT-Note: * Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine. * Never charge the battery. Keep good air convection. * Never reverse the polarity. * Use the enough big cable to avoid the voltage drop.
Application: 36V/48V DC battery as input power to 12V DC appliances as output load.
Specifications
: InputRated Voltage: 48V DCInput
Voltage Range: 30-56V
DCOutput voltage: DC12V 60AOutput
Rated Power:
720WEfficiency: 97% (half load); 95% (full load)
No-load current: <
0.1VR ipple: 200mVpLine
Regulation: 0.2 %Load
Regulation: 0.2 %Voltage
Accuracy: 1.5
%Enclosures: IP68Case
Operating Temperature:
-40~85CWeight:
1550gFeatures: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC48V to DC 12V step-down converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included: 1 x DC 48-12V 60A
Voltage ConverterQuestions: How to choose the correct current for loads? For example, if the max current of your load device is 10A, then choose 10A/ 0.8 = 12.5A at least for resistive loads according to international standard. If the load device is motor or compressor, then you may choose 10A/ 0.5 =20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
