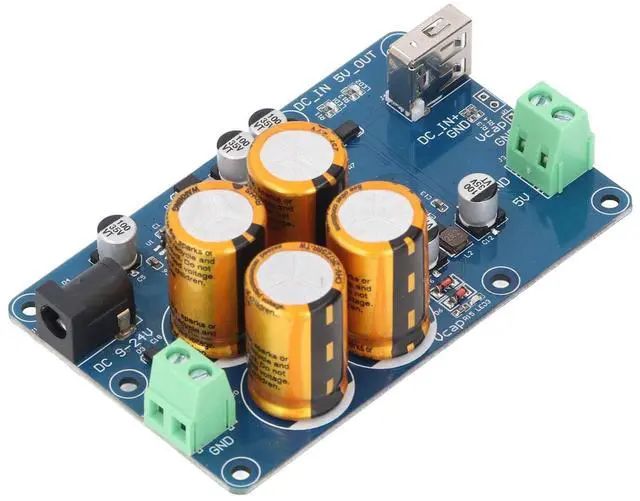

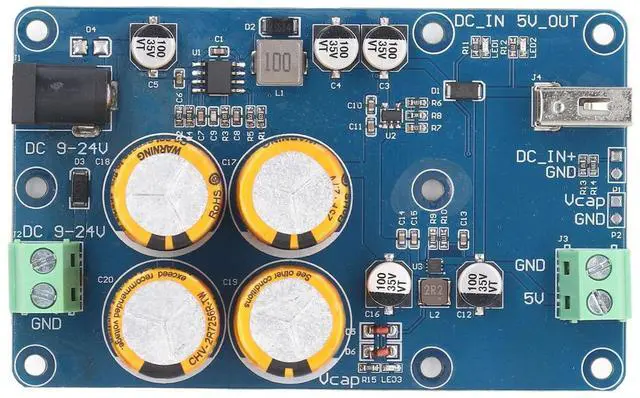

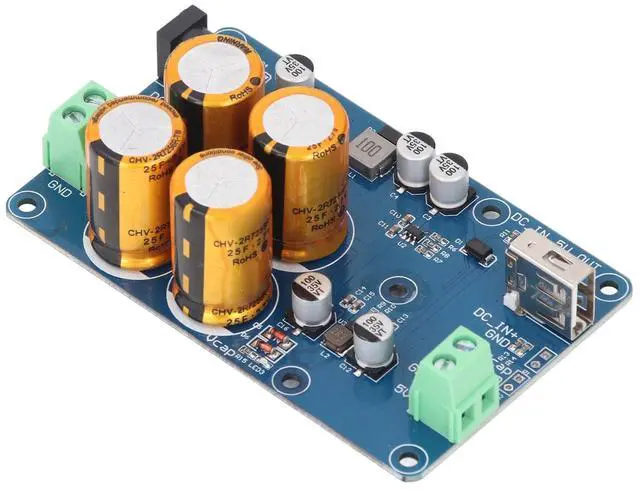

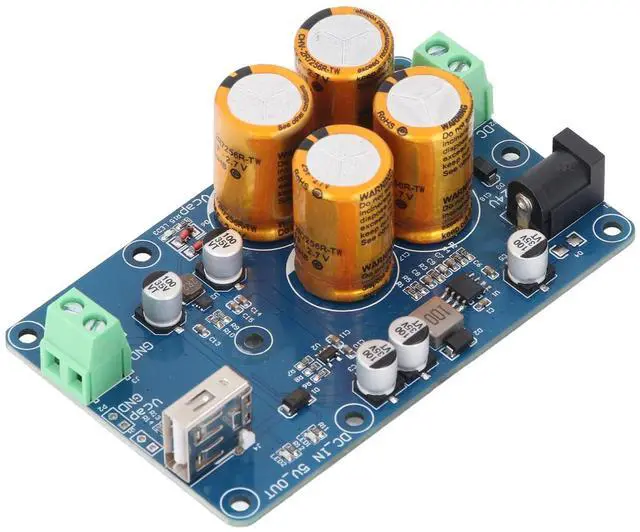

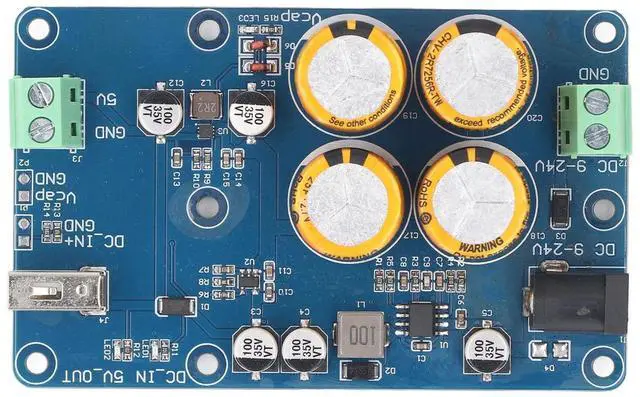

Super Capacitor UPS, 3.5mm Locating Hole Uninterruptible Power Supply 1060S Power Loss Endurance DC924V Input 5V3A Output On Site Data Storage for RPI (4S)

1.
Product Use: This super capacitor uninterruptible power supply is designed for high reliability scenes. When the external power supply unexpectedly loses power, it will quickly switch to super capacitor discharge. 2.
Endurance and Save: This uninterruptible power supply can provide a power down endurance time of 1060 seconds and output an external power down signal, which is sufficient for on site data storage. 3.
Input and Output: The power supply input is 94V DC ( 5.5 x 2.1 mm DC power socket or KF128 terminal), and the power supply output is 5V DC (USB 2.0 or KF128 terminal), with a maximum current of 5V 3A. 4.
Indicator Light: This UPS is equipped with power indicator. DC IN green indicates connection to an external power source, 5V OUT red indicates 5V output, and Vcap green light brightness varies with capacitor voltage. 5.
Compact and Practical: This uninterruptible power supply has a compact size and lightweight design, features a size of 90x56mm, with 3.5 mm locating hole for easy connection and use.
Spec: Item
Type: Super Capacitor UPS for RPI
Material: PCB
Power Input: 9-24VDC ( 5.5 x 2.1 mm DC power socket or KF128 terminal)Power
Output: 5VDC (USB 2.0 or KF128 terminal), maximum current 5V3ASuper
Capacitor: 25FCharging
Current: limited to 1.4A, about 3min to fully capacitorDischarge
Current: 5V3A (continuous) when connected to external power supply, 5V3A (within 10s) when only super capacitor outputPower
Down Detection: 2.54 mmx2p, 3V indicates external power source, 0V indicates power lossPower
Indication: DCIN green indicates external power source connection, 5V OUT red indicates 5V output, Vcap green light brightness changes with capacitor voltage. Brightest when capacitor is full, off when capacitor is dischargedProduct
Size: Approx. 90 x 56mm / 3.5 x 2.2 inLocating
Hole: Approx. 3.5 mm / 0.14 inHow to
Use: Insert external
