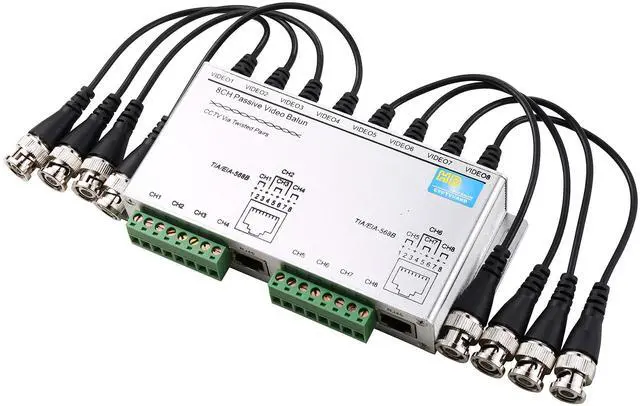

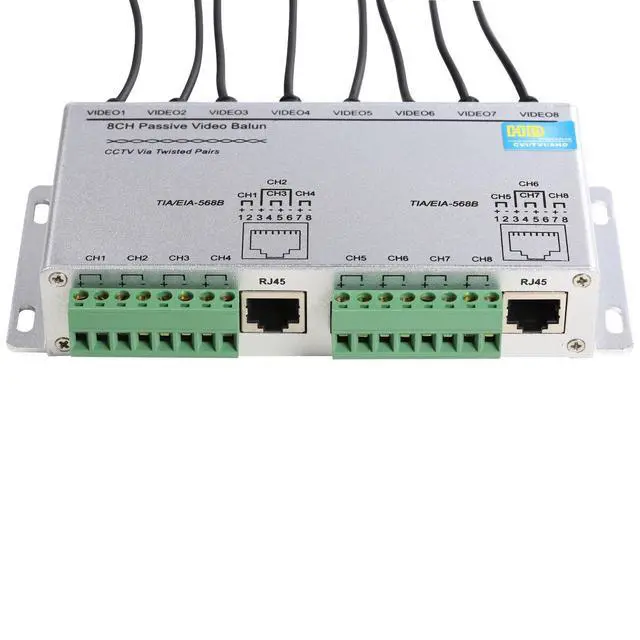

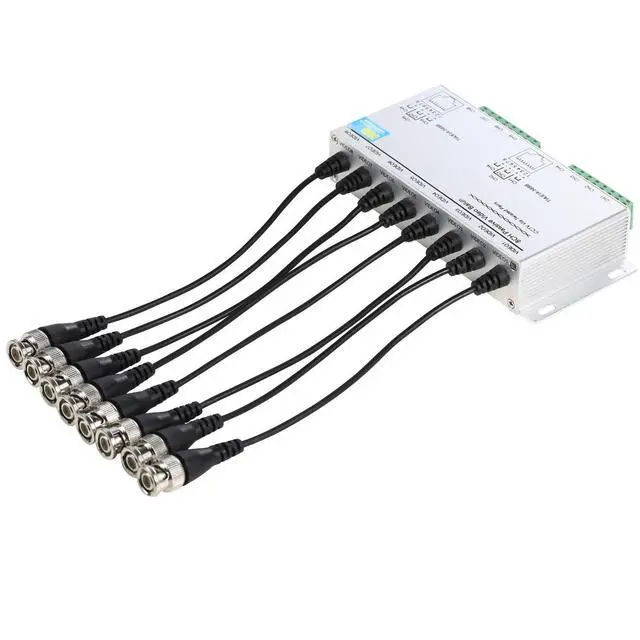

UHPPOTE 8 Channel HD CVI/TVI/AHD Passive Video Balun Transmitter Receiver BNC Male to UTP Cable for CCTV System (Aluminium Alloy Shell)
- Compatible with all HD-CVI,HD-TVI,HD-AHD
- No power required
- 60dB cross talk and noise immunity
- NTSC,PAL,and SECAM video formats
- Video balun is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire. It can simplify the wiring project and save wire use quantity
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: Compatible with all HD-CVI, HD-TVI, HD-AHD
Up to 450m/1476ft for 720P CVI CamerasUp to 250m/820ft for 1080P CVI CamerasUp to 250m/820ft for 720P/1080P TVI CamerasUp to 320m/1050ft for 720P AHD CamerasUp to 250m/820ft for 1080P AHD CamerasNTSC, PAL, and SECAM video formatsNo power required60dB cross talk and noise immunityBuilt-in transient suppression protectionTechnical
response: DC
to 60MhzAttenuation: 0.5
dB typeCMRR: 60dBSurge
protection:
4KVESD:
8KVImpedance:
BNC: 75ohms, RJ 45: 100 ohmsWorking
Temperature: -10~+70 / 14~158Storage
Temperature: -30~+70
/ -22~158Humidity: 0-95%Dimension
(LxWxH): 157x65x29mm / 6.18" x 2.56" x 1.14" (excluding connectors)
Weight: 430g / 0.95 lbType of the required wire: Unshielded Cat-5 or above twisted pair wire(please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.
)Characteristic impedance: 10020DC
loop resistance: 18/100m (328ft)
Differential capacitance: 62pf (Maximum)

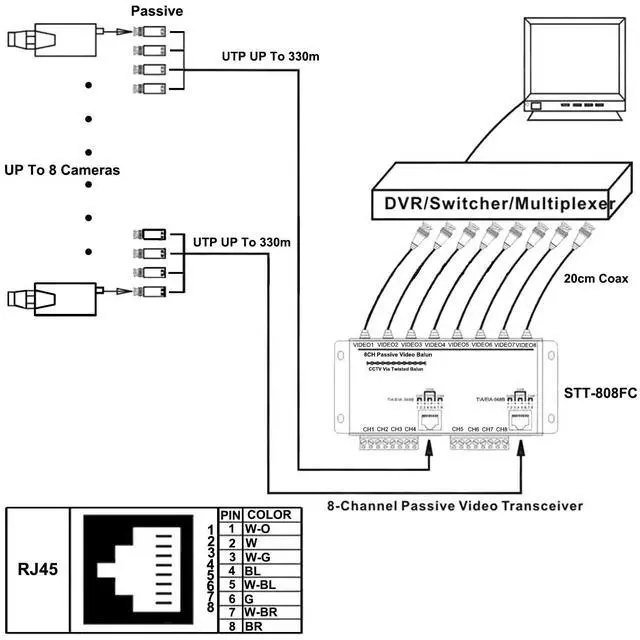

Connection method: Clamp modular plugs for a Cat-5 unshield twisted pair wire according to the connection order of TIA-EIA-568B, connect the clamped modular plugs to the RJ45 socket, connect the coax to the BNC.
Package: 1 x 8CH Passive Video Balun
Up to 450m/1476ft for 720P CVI CamerasUp to 250m/820ft for 1080P CVI CamerasUp to 250m/820ft for 720P/1080P TVI CamerasUp to 320m/1050ft for 720P AHD CamerasUp to 250m/820ft for 1080P AHD CamerasNTSC, PAL, and SECAM video formatsNo power required60dB cross talk and noise immunityBuilt-in transient suppression protectionTechnical
Specifications
: Frequencyresponse: DC
to 60MhzAttenuation: 0.5
dB typeCMRR: 60dBSurge
protection:
4KVESD:
8KVImpedance:
BNC: 75ohms, RJ 45: 100 ohmsWorking
Temperature: -10~+70 / 14~158Storage
Temperature: -30~+70
/ -22~158Humidity: 0-95%Dimension
(LxWxH): 157x65x29mm / 6.18" x 2.56" x 1.14" (excluding connectors)
Weight: 430g / 0.95 lbType of the required wire: Unshielded Cat-5 or above twisted pair wire(please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.
)Characteristic impedance: 10020DC
loop resistance: 18/100m (328ft)
Differential capacitance: 62pf (Maximum)
Connection method: Clamp modular plugs for a Cat-5 unshield twisted pair wire according to the connection order of TIA-EIA-568B, connect the clamped modular plugs to the RJ45 socket, connect the coax to the BNC.
Package: 1 x 8CH Passive Video Balun
