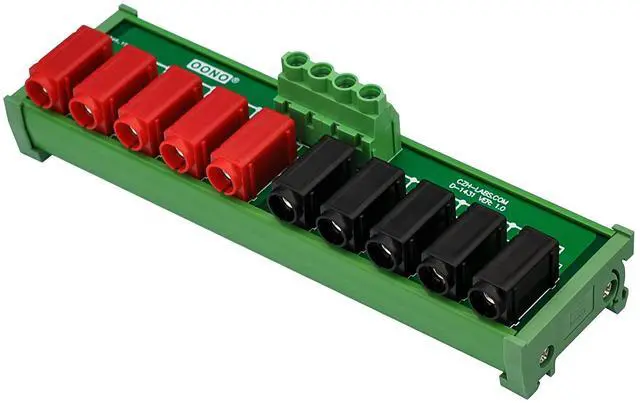

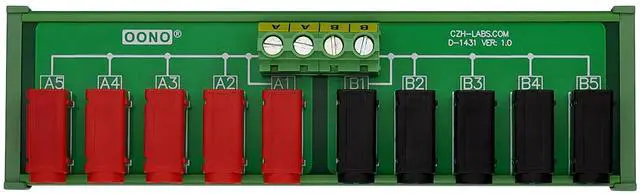

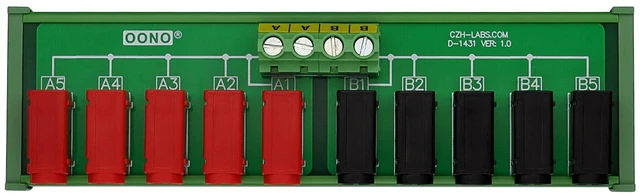

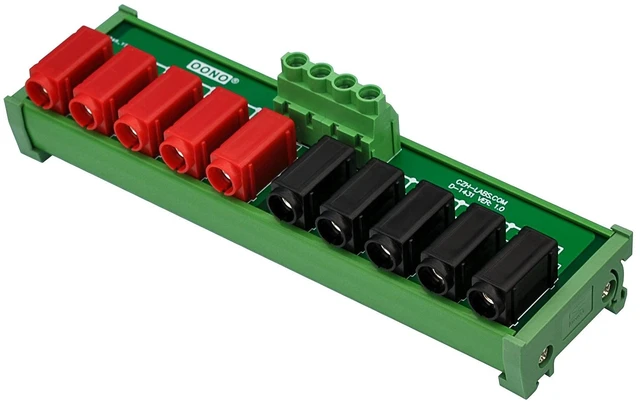

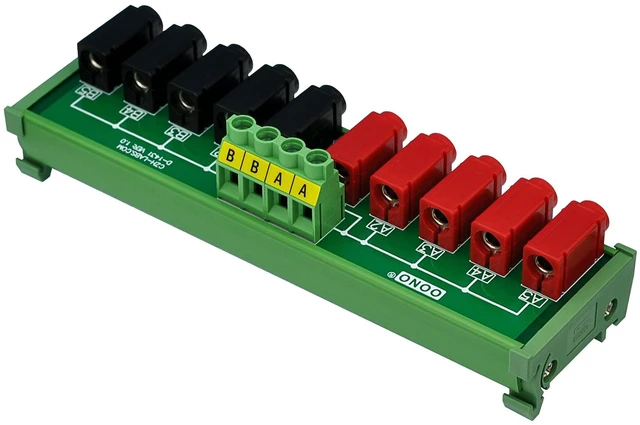

Banana Jack 2x5 Position Distribution Module, DC Power Strip Horizontal (DIN Rail Mount)
- DIN Rail Mount 2 x 5 Position Horizontal Banana Jack Distribution Module.
- A and B position termianl blocks, maximum current 30 Amp (each position). Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- A1 ~ A5 and B1 ~ B5 standard 4mm banana jacks, maximum current 20 Amp (each position). Rated voltage 60V.
- High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier, can support width 35mm rail.
- Package include: 1PCS 2 x 5 position banana jack distribution module.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1, DIN Rail Mount 2 x 5 Position Horizontal Banana Jack Distribution Module. 2, A and B position termianl blocks, maximum current 30 Amp (each position). Pitch 7.62 mm/ 0.3", Wire range 26AWG ~ 10AWG / 4.0 mm square, Strip length 8mm. Screws - M3, steel, Cr3+ Zn plated. Pin header and Cage - Brass. 3, A1 ~ A5 and B1 ~ B5 standard 4mm banana jacks, maximum current 20 Amp (each position). Rated voltage 60V. 4, High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier, can support width 35mm rail.
5,
Package include: 1PCS 2 x 5 position banana jack distribution module.
5,
Package include: 1PCS 2 x 5 position banana jack distribution module.
