AtNeDcVh Ethernet Over Coax EOC Converter IP Extender Kit, Max 6560ft (2000m) Extension Distance, Coax to RJ45 Adapter Extender for Elevator IP Security CCTV Cameras Video System Upgrading

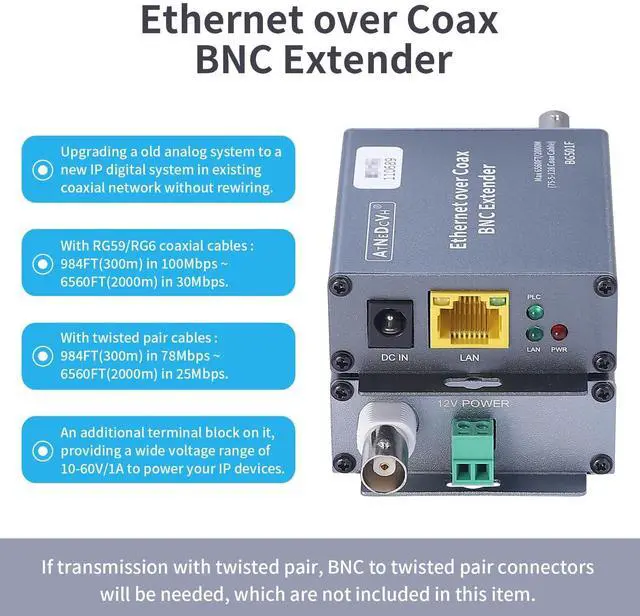

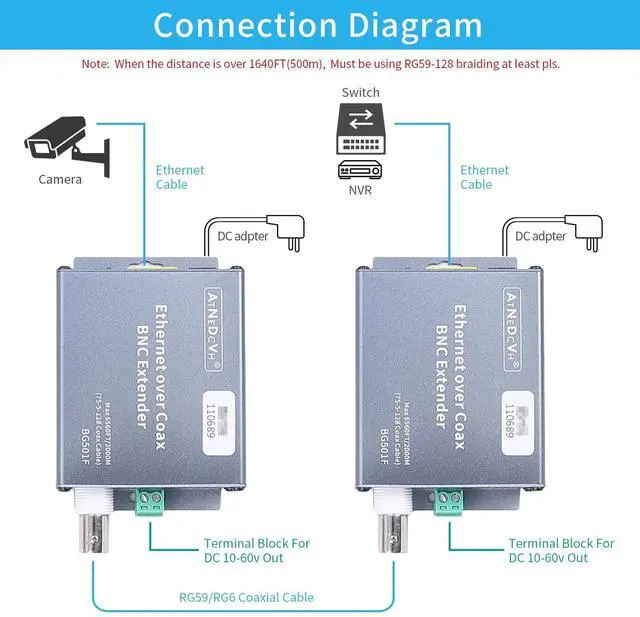

- Product ApplicationIt is a coaxial to IP converter & extender, a perfect product solution for upgrading a old analog system to a new IP digital system in existing coaxial network without rewiring. Made with high-performance intelligent chips can effectively handle signal transmission in complex environments, ensuring stable signal transmission and strong anti-interference capability. For digital upgrading of devices such as elevator ip security cctv cameras video.
- Transmission Distance & Speed Compatible with a RG59, RG6, RG11 coaxial cable. Transmission distance is 984FT(300m) in 100Mbps, 3937FT(1200m) in 78Mbps, and 6560FT(2000m) in 30Mbps (When over 1640FT(500m), Must be using RG59-128 braiding at least). With twisted pair, it will be 984FT(300m) in 78Mbps, 3937FT(1200m) in 60Mbps, and 6560FT(2000m) in 25Mbps. Two core twisted pair cables and coaxial cables can be mixed for use. Note: When using twisted pair transmission, BNC to twisted pair connectors will be needed, which are n
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

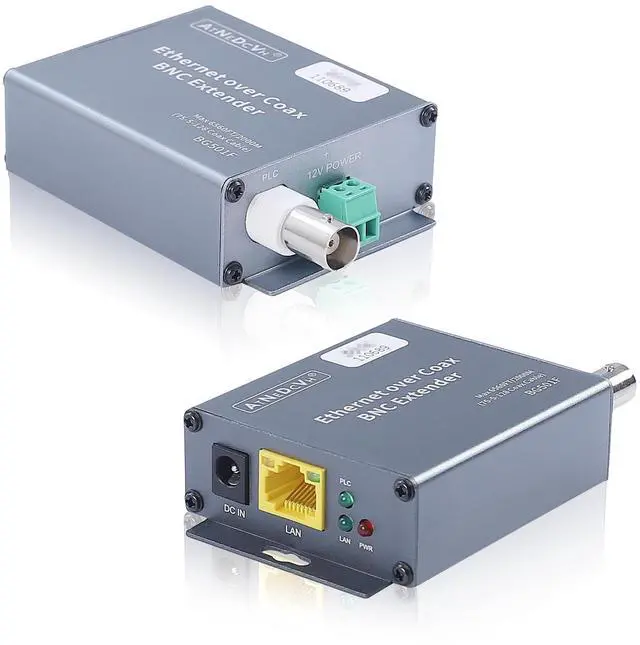

Product Name: AtNeDcVh Ethernet Over Coax EOC Converter IP Extender Kit, Max 6560ft (2000m) Extension Distance, Coax to RJ45 Adapter Extender for Elevator IP Security CCTV Cameras Video Upgrading Old Analog to New IP Digital Surveillance System - Transmitter & Receiver 1 PairProduct ApplicationUpgrading a old analog system to a new IP digital system in existing coaxial network without rewiring.
Transmission Distance & Speed: With a RG59, RG6, RG11 coaxial cable, its 984FT (300m) in 100Mbps, 3937FT (1200m) in 78Mbps, and 6560FT (2000m) in 30Mbps (When over 1640FT (500m), Must be using RG59-128 braiding at least). With twisted pair, its 984FT (300m) in 78Mbps, 3937FT (1200m) in 60Mbps, and 6560FT (2000m) in 25Mbps.

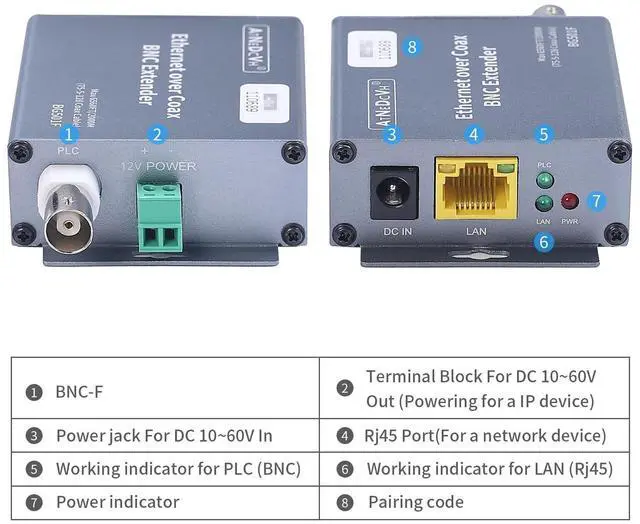

Interfaces: A RJ45 port, a BNC-F port, a DC 12V power jack (10-60V wide voltage input supported), a power supply terminal block (10-60V wide voltage to power IP devices supported, powering voltage=the DC power adapter input voltage).
Whats in the box: BG501F EOC converter * 1 pair (transmitter&receiver), DC 12V power adapter * 2pcs, User guide * 1pcsNon
PoE: The product does not support PoE function, and both the transmitting and receiving ends of it need a dc power adapter for power supply.
Transmission Distance & Speed: With a RG59, RG6, RG11 coaxial cable, its 984FT (300m) in 100Mbps, 3937FT (1200m) in 78Mbps, and 6560FT (2000m) in 30Mbps (When over 1640FT (500m), Must be using RG59-128 braiding at least). With twisted pair, its 984FT (300m) in 78Mbps, 3937FT (1200m) in 60Mbps, and 6560FT (2000m) in 25Mbps.
Interfaces: A RJ45 port, a BNC-F port, a DC 12V power jack (10-60V wide voltage input supported), a power supply terminal block (10-60V wide voltage to power IP devices supported, powering voltage=the DC power adapter input voltage).
Whats in the box: BG501F EOC converter * 1 pair (transmitter&receiver), DC 12V power adapter * 2pcs, User guide * 1pcsNon
PoE: The product does not support PoE function, and both the transmitting and receiving ends of it need a dc power adapter for power supply.
