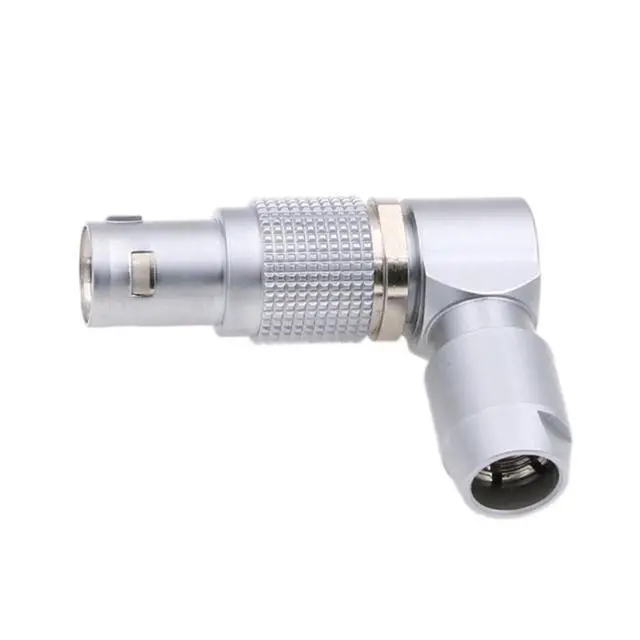

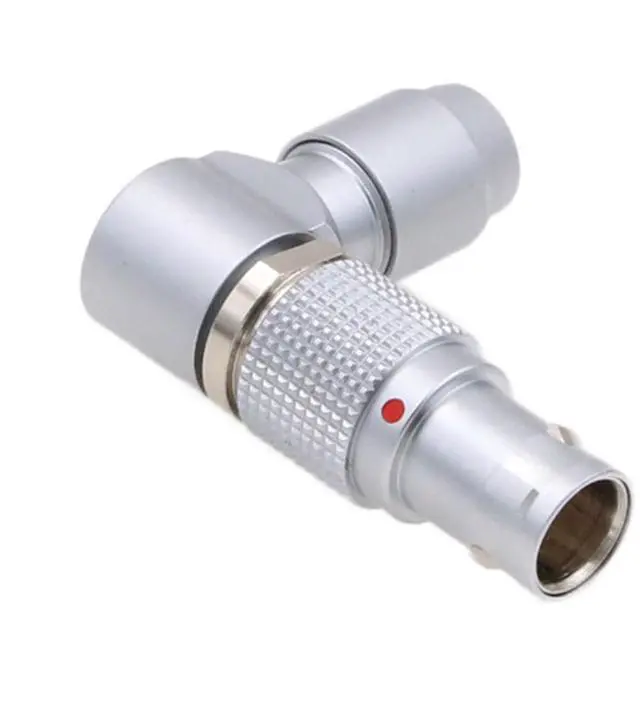

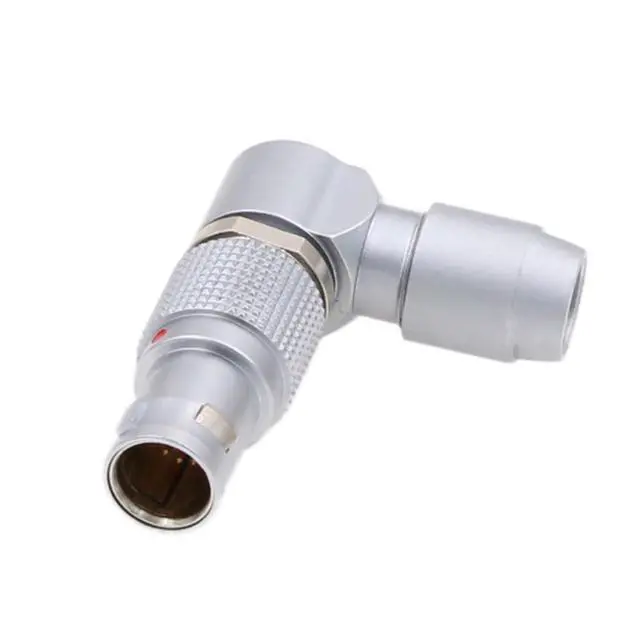

HangTon Silver 1B FSG 12-Pin Right-Angle Connector, Rotated Adjustable Elbow Male Circular Push Pull Cable Plug Compatible for Lemo, 28AWG 2A

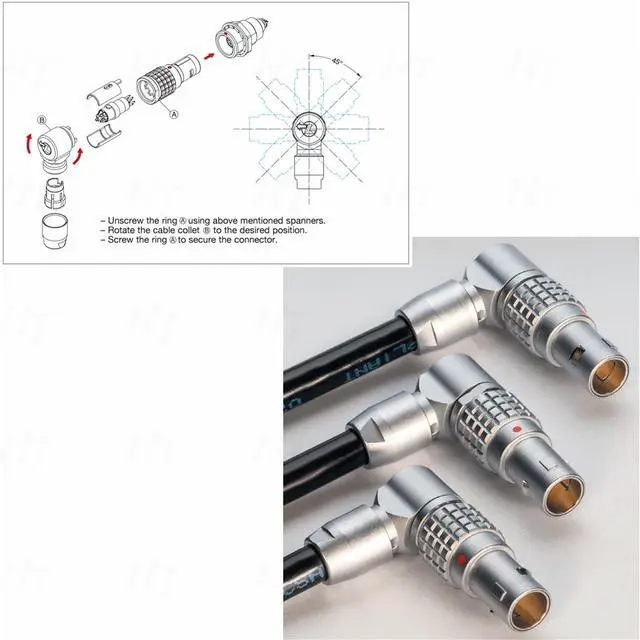

- Silver 90-degree right angle 12 pin male connector, compatible for Lemo 1B.FSG.312, right angle and adjustable rotated. It allows to adjust the connector position in an efficient way in order to prevent cable snagging. Orientat it during its assembly and 8 positions available
- Rated current: 2 Amps. AWG wire size: 28, cable diameter: 2.5mm-7.9mm. Contact diameter: 0.5 mm, stranded conductor section AWG 28 max
- It is widely used in area of audio video, energy and industrial, medical, semiconductor, specialties and other, test and measurement, transportation, aerospace and UAV
- Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating
- Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Silver 90-degree right angle 12 pin male connector, compatible for Lemo 1B. FSG. 312, right angle and adjustable rotated. It allows to adjust the connector position in an efficient way in order to prevent cable snagging. Orientat it during its assembly and 8 positions available ^^
Rated current: 2 Amps.
AWG wire size: 28, cable
diameter: 2.5 mm- 7.9 mm.
Contact diameter: 0.5 mm, stranded conductor section AWG 28 max ^^ It is widely used in area of audio video, energy and industrial, medical, semiconductor, specialties and other, test and measurement, transportation, aerospace and UAV ^^ Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating ^^ Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
Rated current: 2 Amps.
AWG wire size: 28, cable
diameter: 2.5 mm- 7.9 mm.
Contact diameter: 0.5 mm, stranded conductor section AWG 28 max ^^ It is widely used in area of audio video, energy and industrial, medical, semiconductor, specialties and other, test and measurement, transportation, aerospace and UAV ^^ Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating ^^ Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
