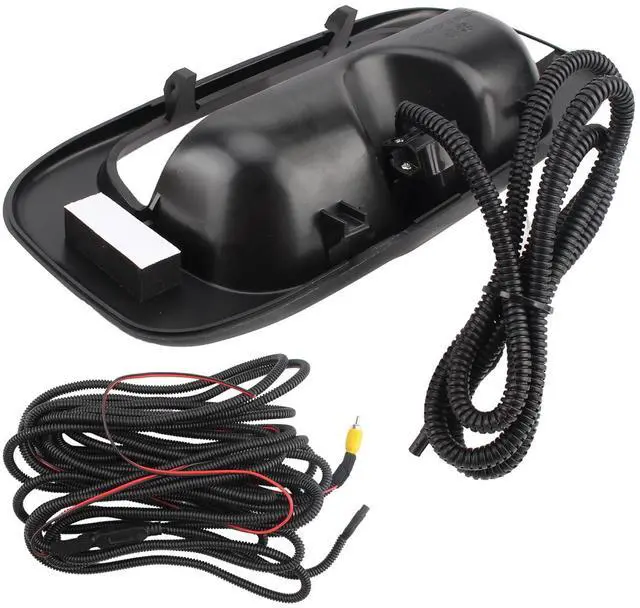

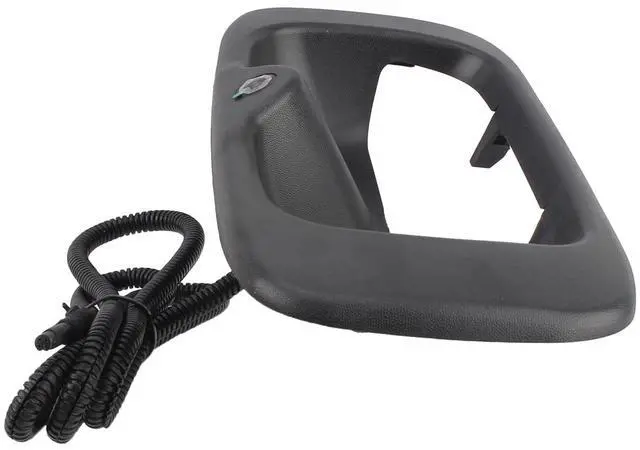

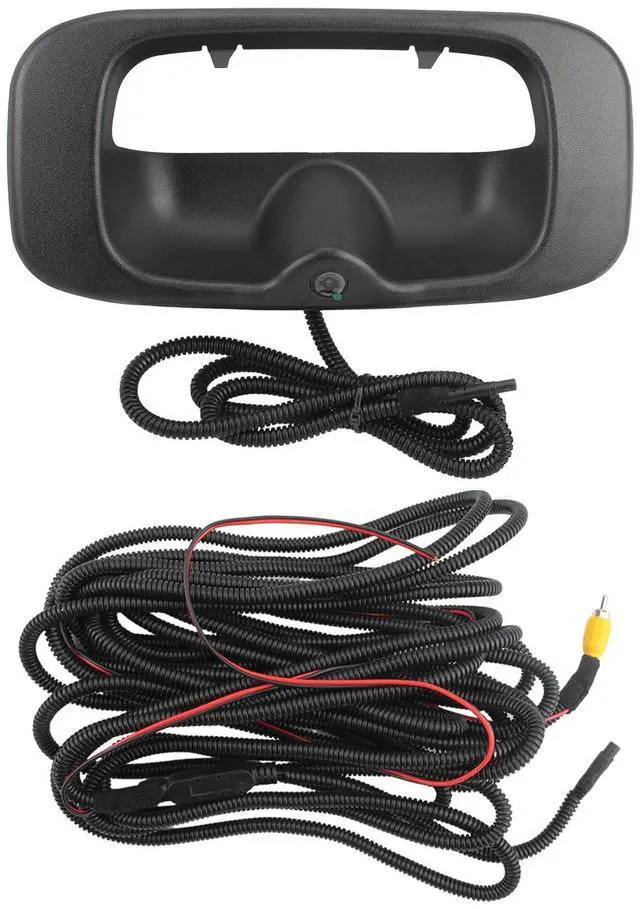

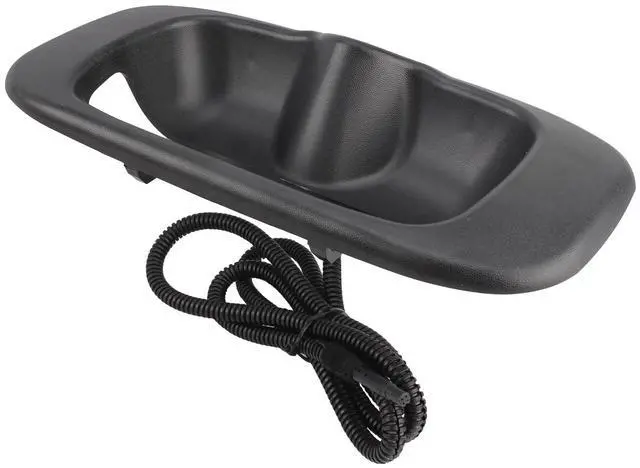

AUTOKAY Tailgate Handle Backup Camera with Wire Fits for Chevy Silverado GMC Sierra 1999-2007

Specifications

:
Condition: 100%
Brand NewColour:
BlackVision: Use the Chip Sensor and Lens of 360
SystemCamera Type: Handle
CameraImage Sensor: 1/3" CCD Color Camera Starlight Night VisionDetection Angle: 135 (H), 170 (D), 97 (V)
Placement on Vehicle: RearFitment
Type: Direct
ReplacementPower Supply: DC 12VWorking Tem.
-30-80Effective Pixels1280*960 pixelsOutput Resolution: (HD) 1280*720, (CVBS) 1280*480Image
Frame Rate: (HD) 25/30fps, (CVBS) 50/60fpsVideo
Standard: AHD/CVBS
Working Current:
5V: 96mAMinimum
Illumination: 0.0001L
ux/ 1.2FS ensitivity: 4500mA/Lux-secSignal-to-noise
ratio:
38dBLens: 1/3 6Glass LensMarine/Waterproof, Night Vision,
Distance LineNote: PAL/NTSC are optional, NTSC is in default and PAL provide per your requestMost monitor is suitable for both PAL and NTS
Cthis product does not include keyhole covers.

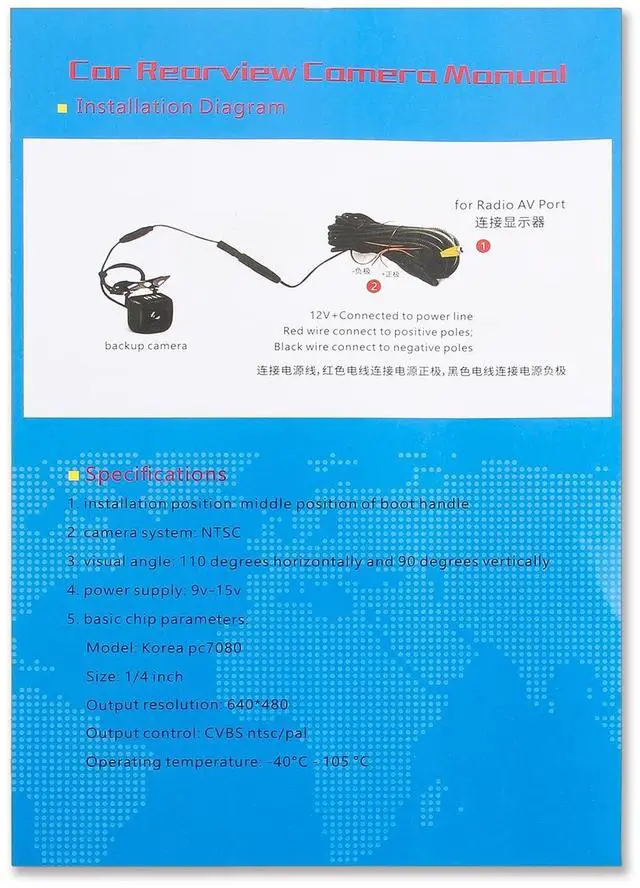

INSTALLATION PROCESS: Test the equipment first. Before you do anything else, first make sure that everything is okay and working as they should. Connect the camera to the monitor and check that they work. If everything is okay, then move on to step two. Install this backup camera. This step requires that you carefully remove the tailgate handle before replacing it. install the new handle with the camera and screw it into place. Run cable.. The trigger wire goes to the backup light circuit, while the video cable connects on the monitor. Youll need to unscrew and open up your rear lights for this. Also, with the tailgate open and lying flat, you can see a hole to pass the cable from the tailgate into the truck bed and then further along the side, to the cabinConnect all cables. Connect all the cables together and run a last check to make sure everything is properly fitted. Test. Now just start up your truck, move into reverse, and your mirror monitor should light up.
