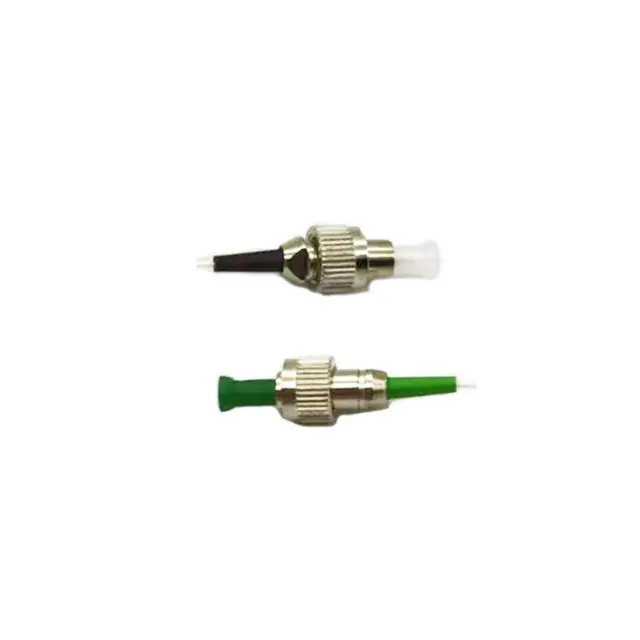

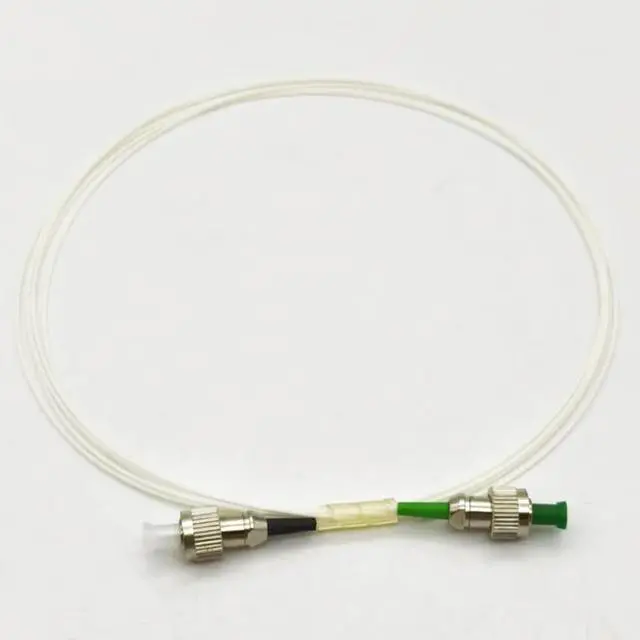

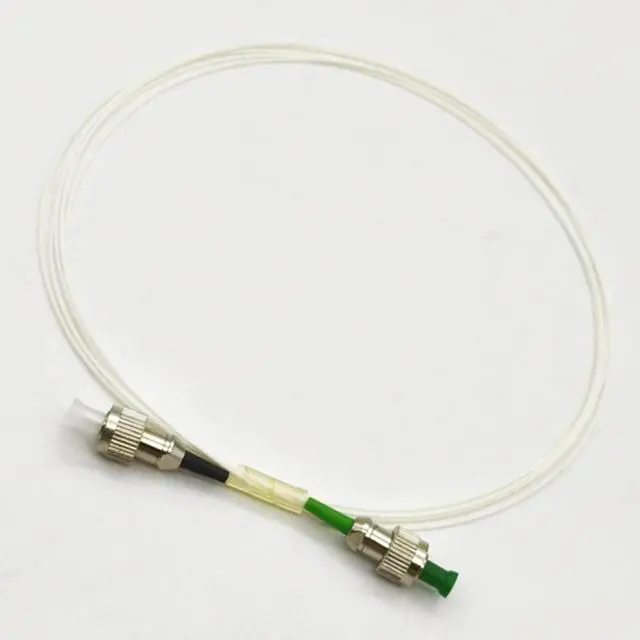

CADICATV Manufacture FC/APC-FC/UPC simplex Single Mode 780nm Patch Cord 2m(6.56ft)
- product parameterFiber core: 4.4/125. jacket: 900 m Hytrel Jacket 4 mm PVC.
- Core Attenuation3.5 dB/km @ 780nm. Insertion Loss: 1.5 dB Loss @ 780 nm. Core Attenuation is specified as unconnected fiber. Insertion Loss (Typical): Connector to Connector.
- Operating Temperature-55 to 85; Minimum Bend Radius6 mm (Momentary), 13 mm (Long Term)
- High PerformanceExcellent uniformity; The core/cladding concentricity is extremely high; With strict second-order mode termination tolerance.
- NoticeCompliant with DIRECTIVE 2002/95/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Fiber Cable Description: OS2 FC to FC Fiber Patch Cable Duplex Single Mode fiber optic cable, 4.4 /125 Corning optical fiber, 900 m Hytrel Jacket 3 mm Yellow PVC.
Core / Cladding/Coating: Corning 4.4 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)/245 micron diameter coating. The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection). The Coating Material is UV Cured, Dual Acrylate.
Core / Cladding/Coating: Corning 4.4 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)/245 micron diameter coating. The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection). The Coating Material is UV Cured, Dual Acrylate.
