Brake Light Backup Camera for Chevy Express/GMC Savana
- Easily replace the factory third brake light,no need to drill holes.
- 6 infrared lights,which auto activates at night to guarantee excellent night vision.

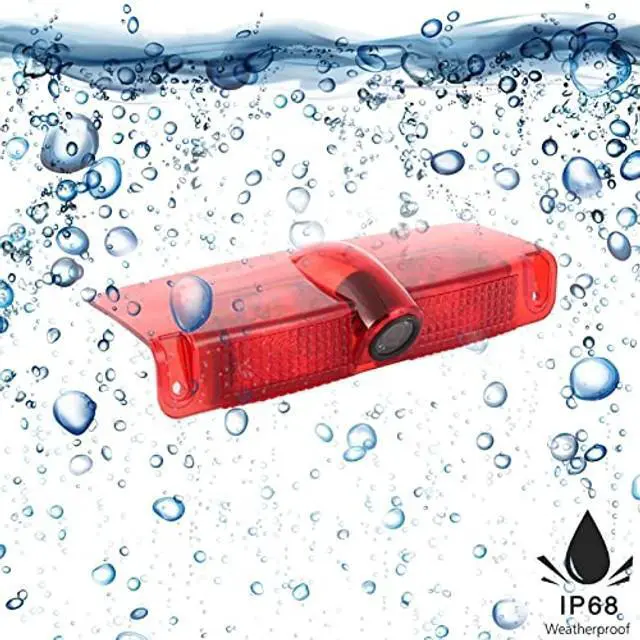

- 100% Waterproof with an IP68 rating to withstand all weather conditions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

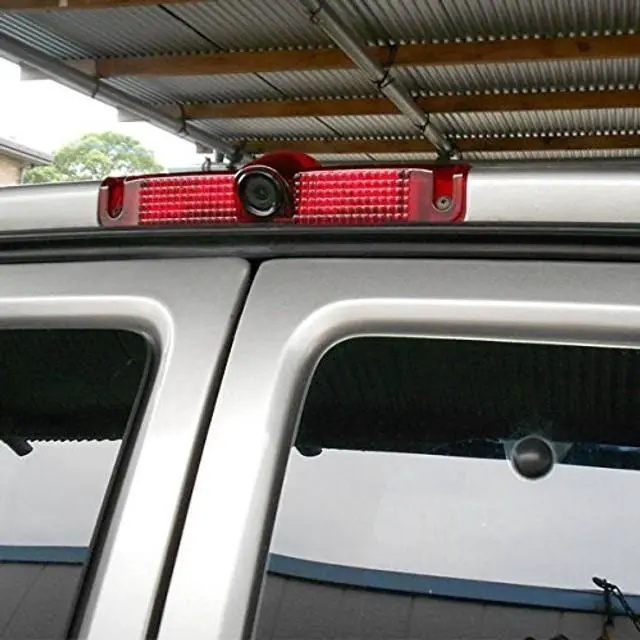

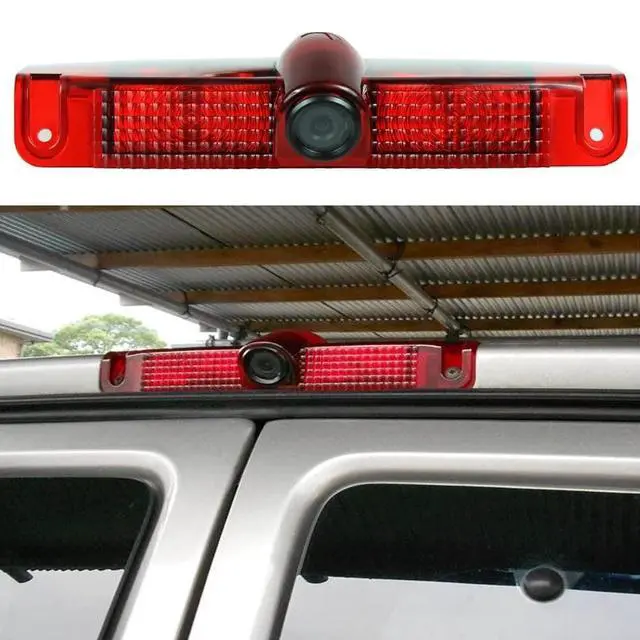

Replacement Backup Camera for 2003-2019 Chevy Express / GMC Savana vans. Backup camera is designed to completely replace the vans third brake light. When installed, this backup camera looks factory-fitted, as though it came with the van originally.
Backup Camera Specification: Image
sensor: 1/3 Color CMOS
Resolution: 756 (H) X 504 (V)
TV line: 600TV linesTV
System: PAL/NTSC
Waterproof rating: 100% waterproof with
IP68Lens: 2.5
mmMin illumination: 0Lux (LED ON)
IR led: 6pcsViewing
angle: 120Power
voltage: DC12V-24VOperation Temp.: -20~+70White
Balance: AutoIn
The Box: Chevy Express Backup Camera10 meters video extension cableRCA adapter 1.5 meter power supply cablemanualFrequently
Asked Questions: 1. How to wire it? It is very easy for wiring. Red wire goes to 12V/24V power source (usually reverse lights), black wire for ground, yellow plug goes to your monitor. The rear view camera will turn on automatically when you put the vehicle into reverse. 2. Will this third brake light backup camera work on my existing monitor? Yes, this camera comes with a standard RCA adaptor, and you can connect it with any screen(DVD, GPS unit, radio or other screen) with a RCA input. If your vehicle doesnt have a screen option, recommend to buy a complete rear camera system. 3. Is it ok if I want this rear view camera to always be on? Yes, if you want the camera to always be on, you can connect it to a constant 12V/24V power source such as accessory socket (cigarette lighter) that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights.
Backup Camera Specification: Image
sensor: 1/3 Color CMOS
Resolution: 756 (H) X 504 (V)
TV line: 600TV linesTV
System: PAL/NTSC
Waterproof rating: 100% waterproof with
IP68Lens: 2.5
mmMin illumination: 0Lux (LED ON)
IR led: 6pcsViewing
angle: 120Power
voltage: DC12V-24VOperation Temp.: -20~+70White
Balance: AutoIn
The Box: Chevy Express Backup Camera10 meters video extension cableRCA adapter 1.5 meter power supply cablemanualFrequently
Asked Questions: 1. How to wire it? It is very easy for wiring. Red wire goes to 12V/24V power source (usually reverse lights), black wire for ground, yellow plug goes to your monitor. The rear view camera will turn on automatically when you put the vehicle into reverse. 2. Will this third brake light backup camera work on my existing monitor? Yes, this camera comes with a standard RCA adaptor, and you can connect it with any screen(DVD, GPS unit, radio or other screen) with a RCA input. If your vehicle doesnt have a screen option, recommend to buy a complete rear camera system. 3. Is it ok if I want this rear view camera to always be on? Yes, if you want the camera to always be on, you can connect it to a constant 12V/24V power source such as accessory socket (cigarette lighter) that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights.
