Transwan 2 Ch 2 Way RCA Audio over Fiber Extender to 20 Kilometers SMF / 2 Kilometers MMF, Line-Level Unbalanced Analog RCA Audio to Optic Fiber, with SFP module
- 2 Channel 2 Way RCA Audio over Fiber Extend to 20 Km SMF / 2 Km MMF, Supports 24 & 16-Bit Digitally Encoded Analog Audio
- Line Level Unbalanced Audio Operation.
- No EMI, RFI, Cross Talk or Video Distortion and no ground loops; No Loss in Signal Quality

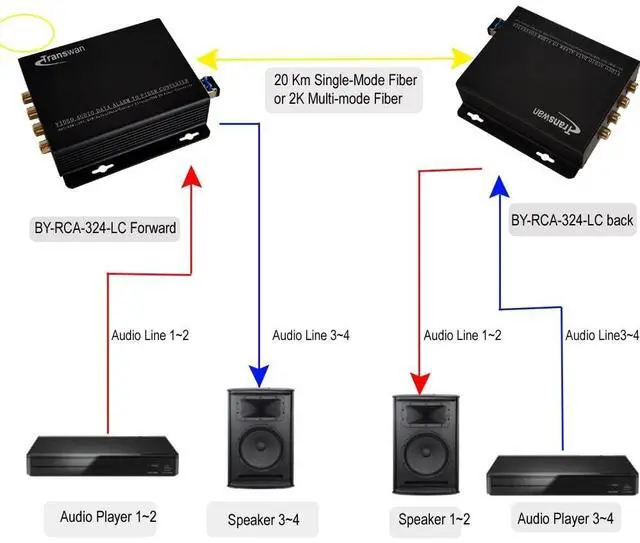

- Support Point-to-Point or Daisy-Chain connection; LED Indicators for Instant System Monitoring
- Plug and Play (no software driver), Standalone or Rack Mount in FVC14 Chassis
- with Hot Pluggable SFP module.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

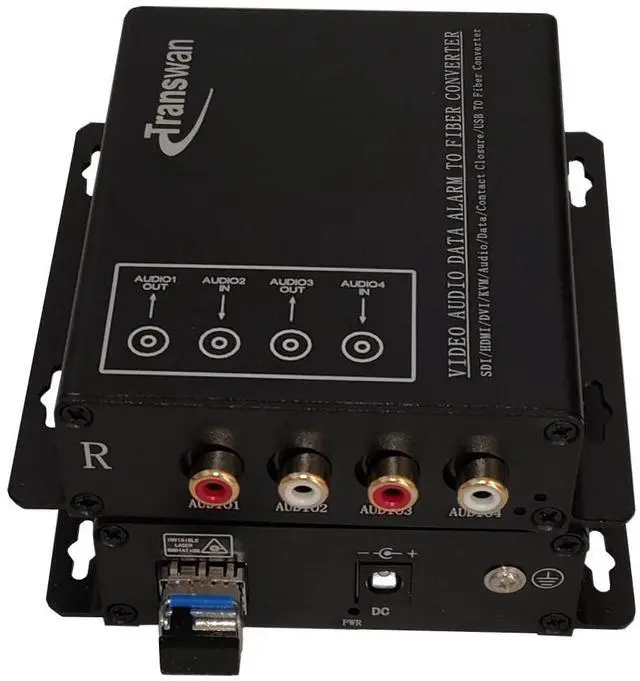

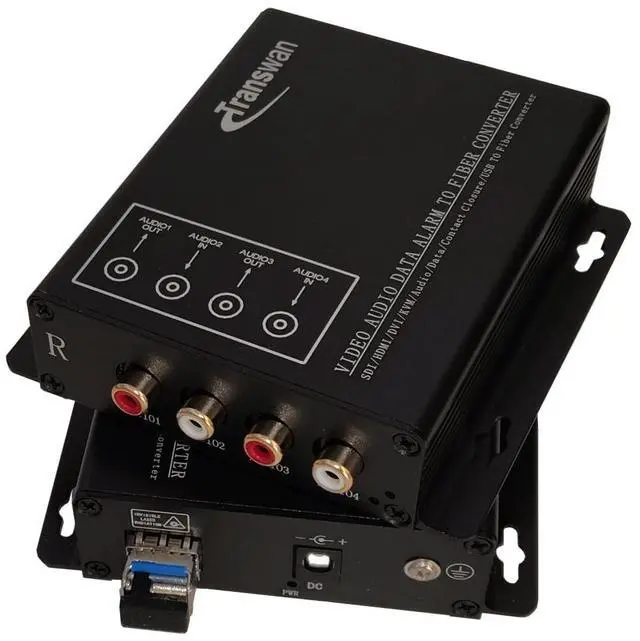

BY-RCA-325-LC support 2 Channels 2 Way Audio (RCA) over 1 Single Multi-mode / Single-mode optical fiber. the set includes optical transmitter and receiver.
Applications: Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and
Professional AV etcAudio:
Channels: 2 Ch In, 2
Ch OutInput/output Impedance: 600ohm (unbalanced)
Max input/output voltage: 3.0V
p-pResponse: 10
Hz29kHz @3dBSNR: >
70dBConnector: RCA
Electrical & Mechanical: Input
Power Requirements: DC 5V@2APower
Adapter: AC 900V~240VPower

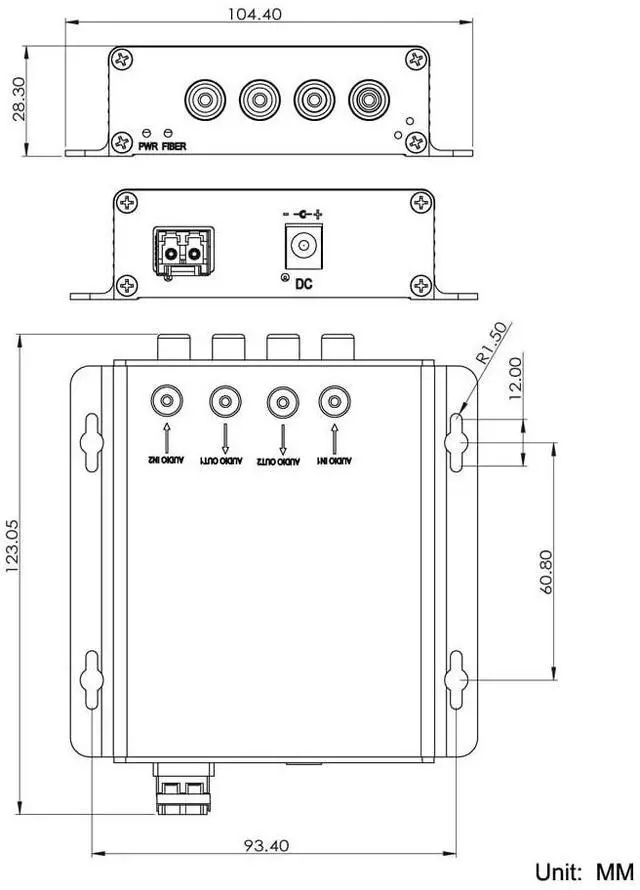

Consumption: <3WStand-Alone Dimensions: 104 mm 104 mm 28 mmShipping Weight: (include Transmitter & Receiver ) 0.8kgEnvironmental:Operating Temperature: -20C ~ +75CStorage Temperature: -40C ~ +85CRelative Humidity: 0% ~ 95% (non-condensing)MTBF: > 100, 000
hoursOptical:
Wavelength: 1310nmSupported
Optical Fiber: Universal Single-mode Fiber /
Multi-mode FiberOptical Connector: 1 x LC SFP
Max Distance: 20 Km (SMF), 2 Km (MMF)
Package: 1. 1 x transmitter with SFP module2. 1 x receiver with SFP module. 3. 1 x Power Adapter DC 5~12V with US plug. 4. 1 x Manaul.
Applications: Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and
Professional AV etcAudio:
Channels: 2 Ch In, 2
Ch OutInput/output Impedance: 600ohm (unbalanced)
Max input/output voltage: 3.0V
p-pResponse: 10
Hz29kHz @3dBSNR: >
70dBConnector: RCA
Electrical & Mechanical: Input
Power Requirements: DC 5V@2APower
Adapter: AC 900V~240VPower
Consumption: <3WStand-Alone Dimensions: 104 mm 104 mm 28 mmShipping Weight: (include Transmitter & Receiver ) 0.8kgEnvironmental:Operating Temperature: -20C ~ +75CStorage Temperature: -40C ~ +85CRelative Humidity: 0% ~ 95% (non-condensing)MTBF: > 100, 000
hoursOptical:
Wavelength: 1310nmSupported
Optical Fiber: Universal Single-mode Fiber /
Multi-mode FiberOptical Connector: 1 x LC SFP
Max Distance: 20 Km (SMF), 2 Km (MMF)
Package: 1. 1 x transmitter with SFP module2. 1 x receiver with SFP module. 3. 1 x Power Adapter DC 5~12V with US plug. 4. 1 x Manaul.
