AEC MP-1001S-SA15TA-FS27TA, SMA Male/F FemaleImpedance Matching Pad
- Frequency Range : DC~3GHz
- Broadband application for impedance matching

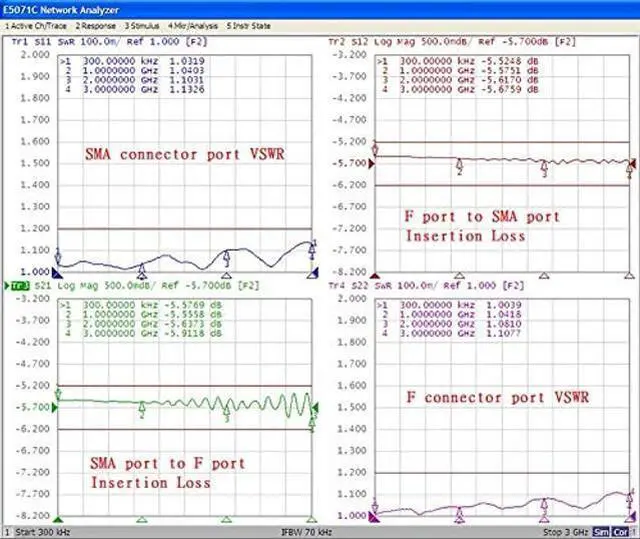

- Insertion Loss : 5.70.5 dB / Low VSWR : 1.2 max.
- The product is printed with the aeco RF logo. It is AEC's own brand of RF measurement components.
- Package include:1 x matching pad
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Material: F type

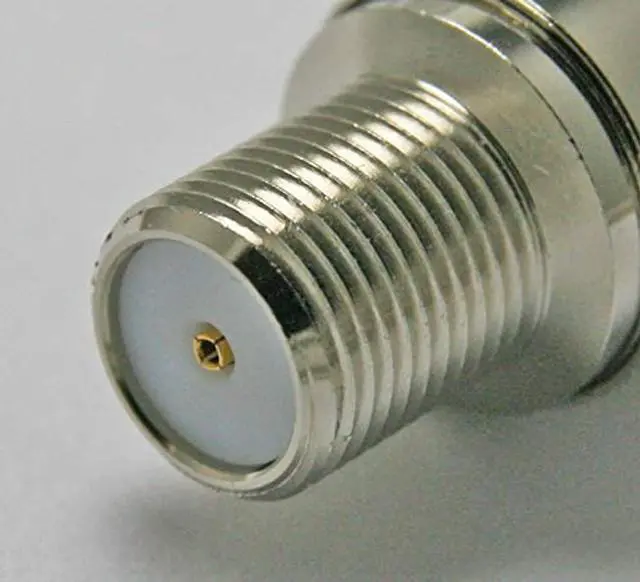

Body: BrassF type
Contact Pin: Beryllium Copper F type
Insulator: PTFE

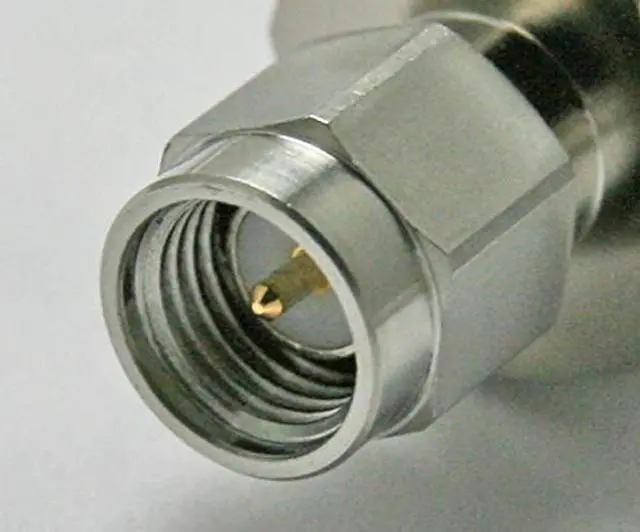

SMA Body: Stainless
SteelSMA Contact Pin: Brass
SMA Insulator: PTFE
Shell: Brass
Finished: F type
Body: Nickel PlatedF type
Contact Pin: Gold
Plated SMA Body: PassivatedSMA
Contact Pin: Gold
Plated Shell: Nickel Plated
Electrical Characteristics: Wideband
coverage: DC to 3GHz
Insertion Loss: 5.70.
5 dB VSWR: 1.2 max.
Product Dimension:
Length: 48.6 mm
Diameter:
14mmWeight:
26gPacking: Zip Bag(1Pc/1Set)
Body: BrassF type
Contact Pin: Beryllium Copper F type
Insulator: PTFE
SMA Body: Stainless
SteelSMA Contact Pin: Brass
SMA Insulator: PTFE
Shell: Brass
Finished: F type
Body: Nickel PlatedF type
Contact Pin: Gold
Plated SMA Body: PassivatedSMA
Contact Pin: Gold
Plated Shell: Nickel Plated
Electrical Characteristics: Wideband
coverage: DC to 3GHz
Insertion Loss: 5.70.
5 dB VSWR: 1.2 max.
Product Dimension:
Length: 48.6 mm
Diameter:
14mmWeight:
26gPacking: Zip Bag(1Pc/1Set)
