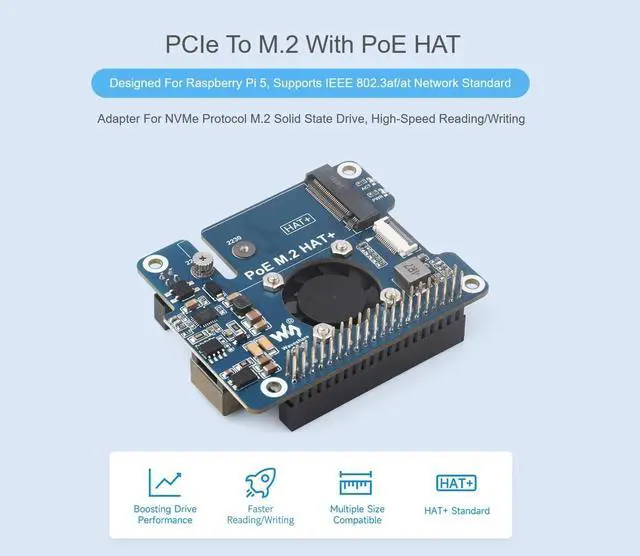

PCIe to M.2 Adapter with PoE HAT for Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive 2230/2242 Size, IEEE 802.3af/at Network Standard. Onboard 5V & 12V Header Outputs

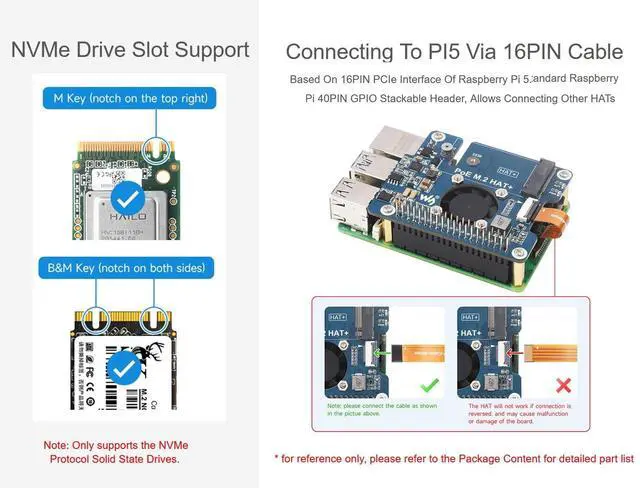

- PCIe To M.2 with PoE HAT for Raspberry Pi 5, based on 16PIN PCIe Interface of Raspberry Pi 5, connecting to PI5 via 16PIN cable, standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs
- POE M.2 HAT+ expansion board supports IEEE 802.3af/at Network Standard, supports NVMe protocol M.2 Solid State Drive, compatible with 2230/2242 size, supports Gen2 and Gen3 modes, supports Booting PI5 From Solid State Drive
- Support Power Over Ethernet, providing both network connection and power supply for your Raspberry Pi in one cable
- Onboard 5V & 12V header outputs, 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power), be able to power extra devices while providing stable power to Raspberry Pi

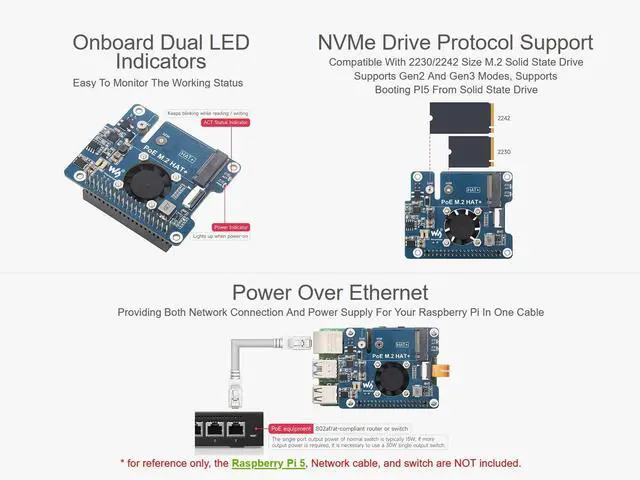

- Onboard dual LED indicators, easy to monitor the working status. Active cooling fan, accelerate cooling effect, more stable performance. Come with metal heatsink and thermal tape.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
IntroductionPOE M. 2 HAT+ is an expansion board that combines Power over Ethernet (PoE) and PCIe to M. 2 functions for Raspberry Pi 5, supporting the IEEE 802.3 af/at network standard. It also supports M. 2 NVME hard drives of 2230 and 2242 sizes, and SSD booting of Raspberry PiFeaturesBased on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi 5 (not suitable for PI4B and PI3B) Support PoE power over Ethernet and IEEE 802.3 af/at PoE network standardAdopt fully isolated switch mode power supply (SMPS) Onboard high-speed active cooling fan, equipped with metal fins, jointly accelerates heat dissipationSupport NVMe protocol M.

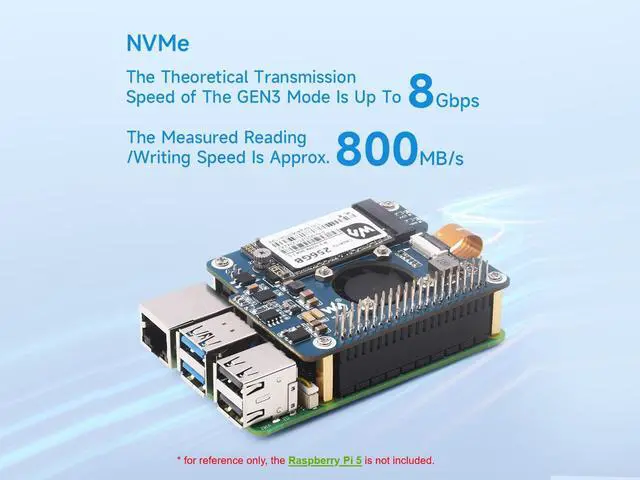

2 interface hard disk protocol, high-speed read and write, high work efficiencyPCI-E1 Gen2 or Gen3 modesOnly support PI5BCompatible with M. 2 hard drives of 2230/2242 sizesOnboard work indicator light, the PWR stays on when powered on, the read/write ACT flashes, and the working status is clear at a glancePOE
ParametersPOE input voltage: 37V~57V DC inputPOE
GPIO Pin: 5V 4.5A (MAX) POE - 2P
Pin: 12V 2A (MAX)
Network standard: Supports IEEE 802.3 af/at

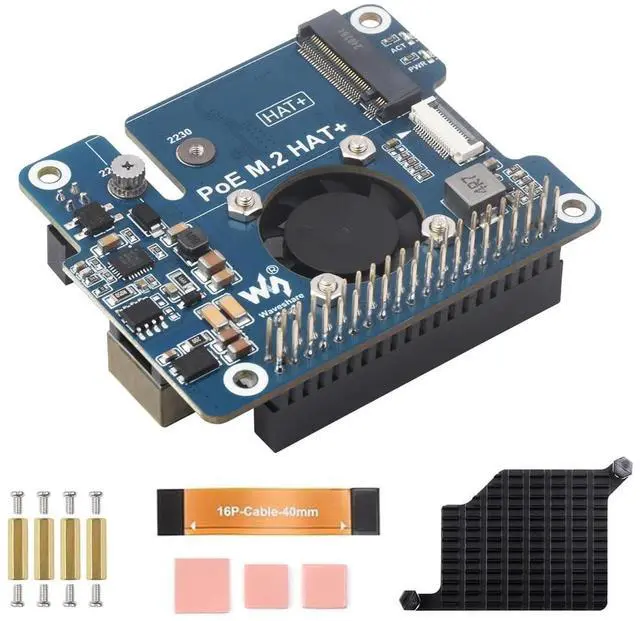

PoEProduct size: 56.5 mm 70.0 mmPackage ContentPoE M. 2 HAT+ x1Metal heatsink x116P-Cable-40mm x1Thermal tape (3PCS) x1Screws pack x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
2 interface hard disk protocol, high-speed read and write, high work efficiencyPCI-E1 Gen2 or Gen3 modesOnly support PI5BCompatible with M. 2 hard drives of 2230/2242 sizesOnboard work indicator light, the PWR stays on when powered on, the read/write ACT flashes, and the working status is clear at a glancePOE
ParametersPOE input voltage: 37V~57V DC inputPOE
GPIO Pin: 5V 4.5A (MAX) POE - 2P
Pin: 12V 2A (MAX)
Network standard: Supports IEEE 802.3 af/at
PoEProduct size: 56.5 mm 70.0 mmPackage ContentPoE M. 2 HAT+ x1Metal heatsink x116P-Cable-40mm x1Thermal tape (3PCS) x1Screws pack x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
