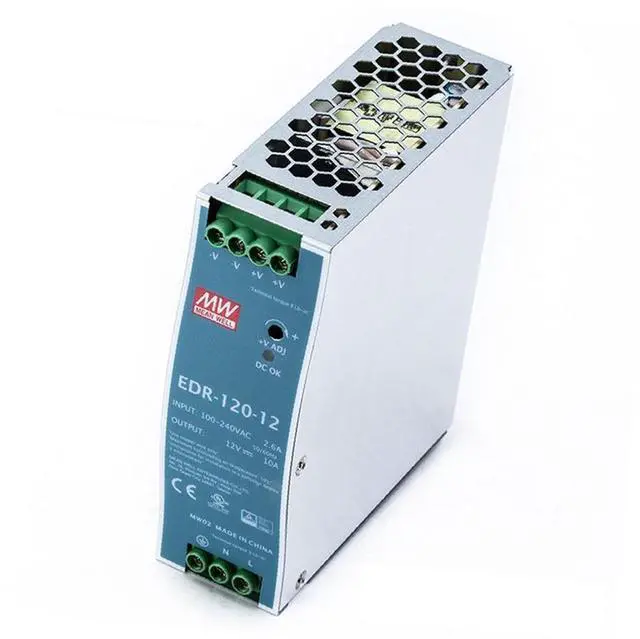

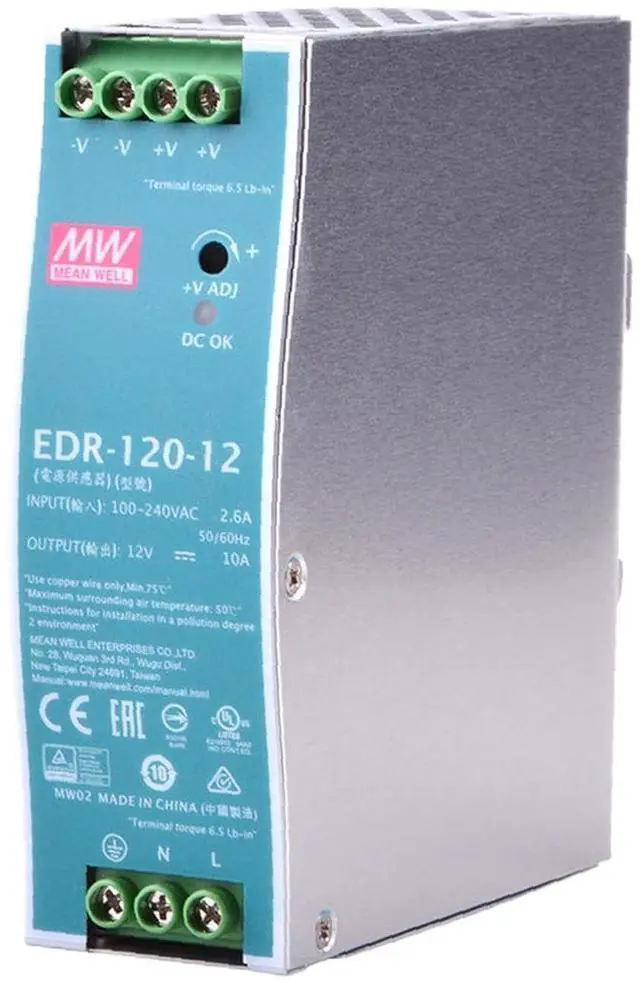

GFZ EDR-120-12 120W Single Output Switching Power Supply 12V 10A, 100-240VAC Input, for Industrial Equipment/LED Lighting/Security Systems
- High Efficiency & Stable Performance: Delivers 12V DC output with 10A current (120W max), achieving up to 88% efficiency. Built with industrial-grade components and advanced thermal management for 24/7 reliability in -30C to +70C environments.
- Universal Input & Safety Certified: Supports 100-240VAC wide voltage input with active PFC function. Certified with CE, RoHS, and UL standards, ensuring compliance with global electrical safety and environmental requirements.
- Robust Protection Mechanisms: Integrated short-circuit, overload, over-voltage, and over-temperature protections. Automatic recovery design minimizes downtime in demanding applications like machinery or LED installations.

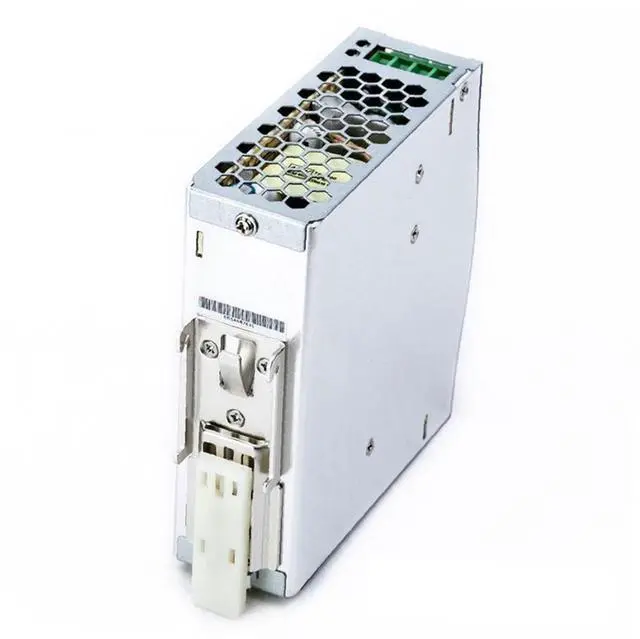

- Compact & Easy Integration: Compact dimensions (199x98x38mm) and lightweight (0.6kg) design saves space. Includes multiple mounting options (DIN rail, wall, or surface) for flexible deployment in control cabinets or enclosures.
- Versatile Industrial Applications: Ideal for powering industrial aut
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

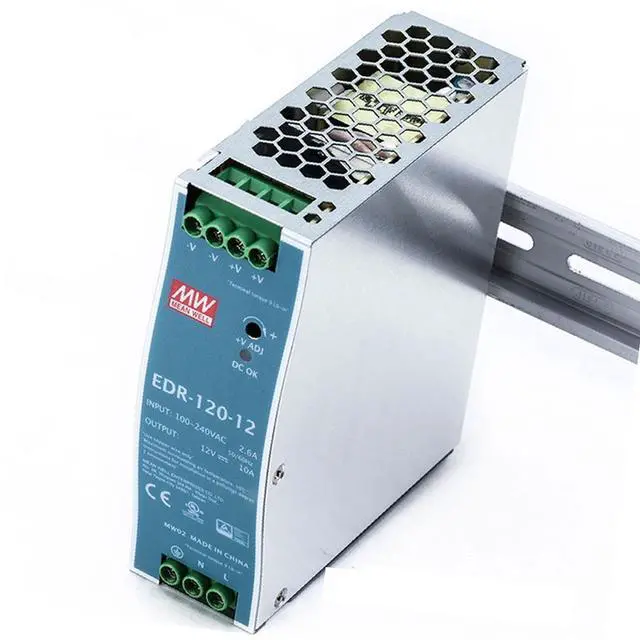

The EDR-120-12 is a high-performance 120W single-output enclosed switching power supply designed for industrial and commercial applications. With an input voltage range of 100-240VAC (47-63Hz), it provides a stable 12V DC output at 10A current, maintaining 1% voltage regulation even under full load. The unit features a high 88% conversion efficiency, reducing energy waste and heat generation. Its rugged metal housing (IP20 protection) ensures durability in harsh environments, operating reliably across a wide temperature range from -30C to +70C with derating above 60C. Safety is prioritized through multiple protections: short-circuit (SCP), overload (OLP), over-voltage (OVP), and over-temperature (OTP), all with auto-recovery functionality. The built-in active Power Factor Correction (PFC> 0.95 ) meets international energy standards. Installation flexibility is achieved through DIN rail (TS-35/ 7.5 /15 compatible), wall-mounting, or surface-mount options, while the screw terminal block simplifies wiring. Certified with CE, RoHS, and UL, this power supply is ideal for factory automation, LED signage, security systems, and MED-equipment. A 3-year warranty and global technical support ensure long-term peace of mind.
Technical
Input: 100-240VAC 10%, 47-63Hz;
Output: 12VDC 1%, 10A (120W max);
Efficiency: 88% typ.;
Ripple Noise: 120mVp-p;
Dimensions: 1999838mm (LWH);
Weight: 600g;
Cooling: Natural convection;
MTBF: >300, 000 hours at 25C.
Technical
Specifications
:Input: 100-240VAC 10%, 47-63Hz;
Output: 12VDC 1%, 10A (120W max);
Efficiency: 88% typ.;
Ripple Noise: 120mVp-p;
Dimensions: 1999838mm (LWH);
Weight: 600g;
Cooling: Natural convection;
MTBF: >300, 000 hours at 25C.
