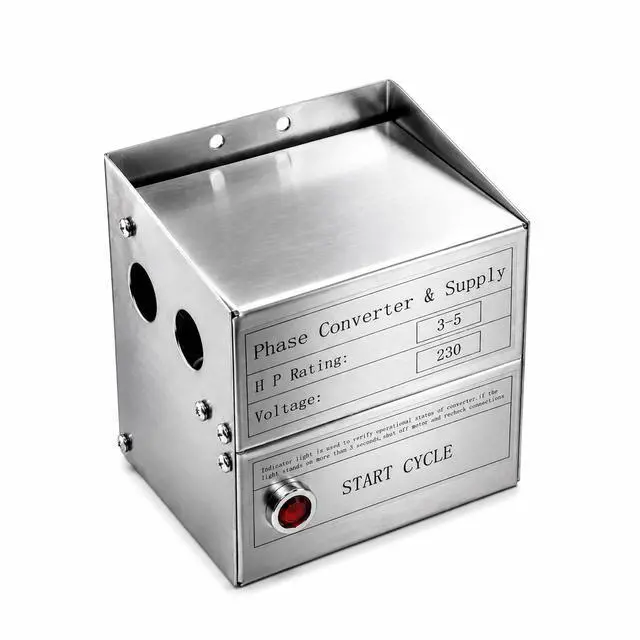

SCM05 3-5 Hp Static Phase Converter for Mill Drill Lathe Saw, Single to 3 Phase Converter

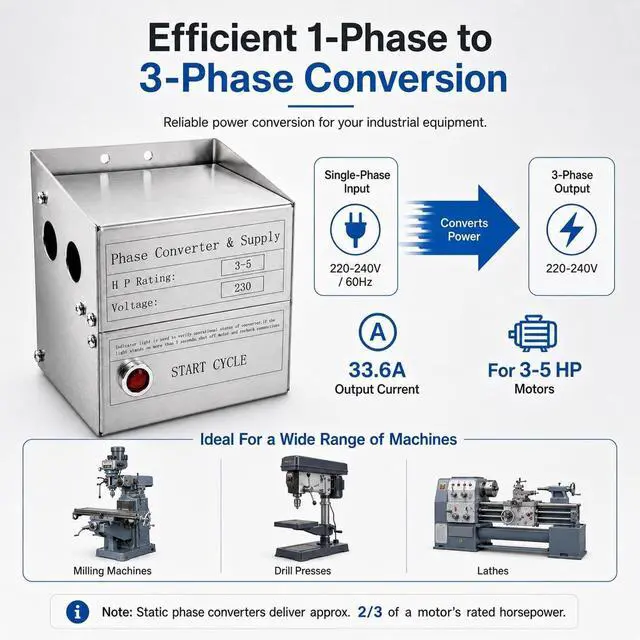

- Efficient 1-Phase to 3-Phase Power Conversion The Ulfeng SCM05 Digital Static Phase Converter converts standard single-phase 220-240V / 60Hz input to three-phase 220-240V output, delivering 33.6A output current. Designed for 3 to 5 HP motors on machines with easy to normal starting loads, such as milling machines, drill presses, and lathes. *Note: A static phase converter supplies approximately 2/3 of the motor's rated horsepower.*

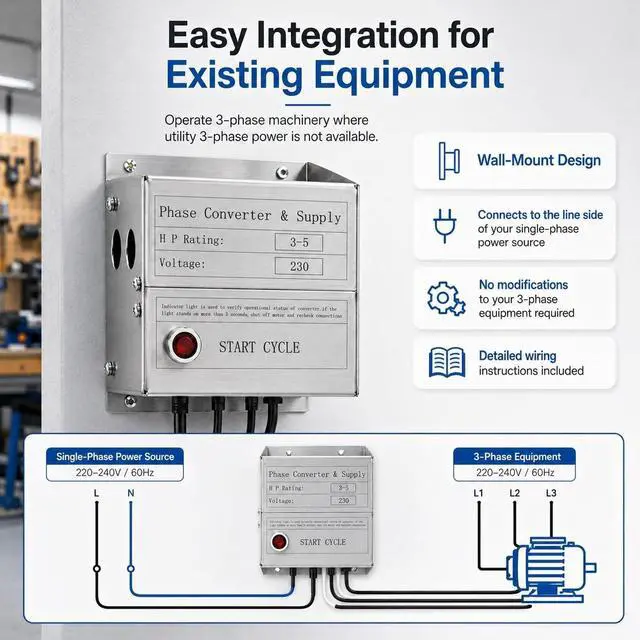

- Wall-Mount Design with Easy Integration This unit mounts directly on the wall and wires into the line side of your single-phase power source. No modifications to your three-phase equipment are required. A detailed instruction sheet is included for wiring to a 220V single-phase circuit, allowing you to operate 3-phase machinery where utility three-phase power is not available.

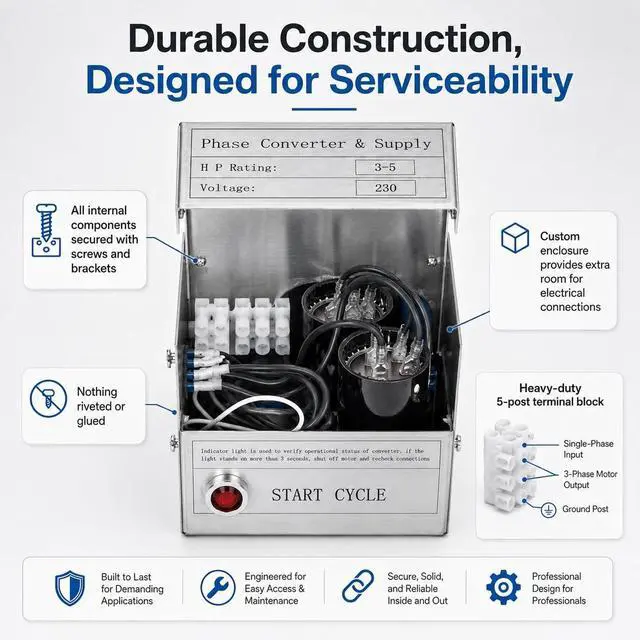

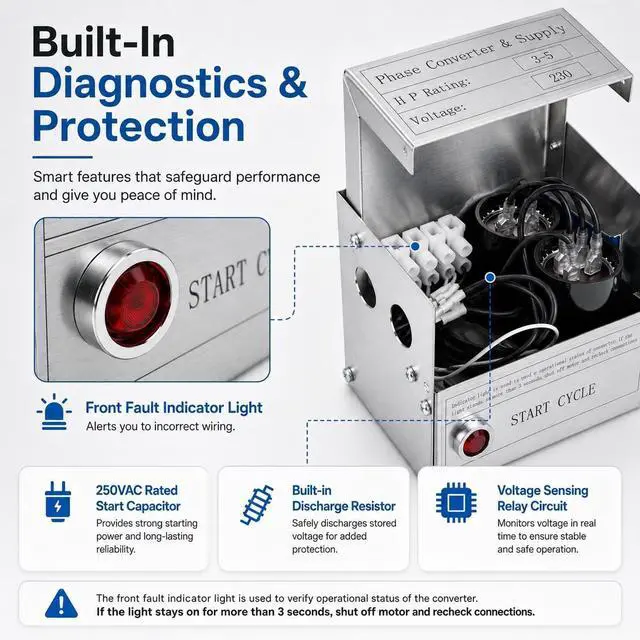

- Diagnostic and Protection Features Front-mounted fault indicator light alerts you to incorrect wiring. The circuit includes a robust 250VAC rated start capacitor with a discha
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
It will provide power for a 220v - 3phase motor rated between 3 HP and max of 5 HP. Model number is SCM05. This is a new static phase converter unit that I can be used to power a milling machine, drill press, lathe or any easy to normal starting load. Please keep in mind that a static phase converter provides 2/3's of the rated HP with whatever motor you power it with. This static phase converter is designed to be wired in on the line side of the single phase power, so you will not need to modify your three phase equipment to use this static phase converter.
