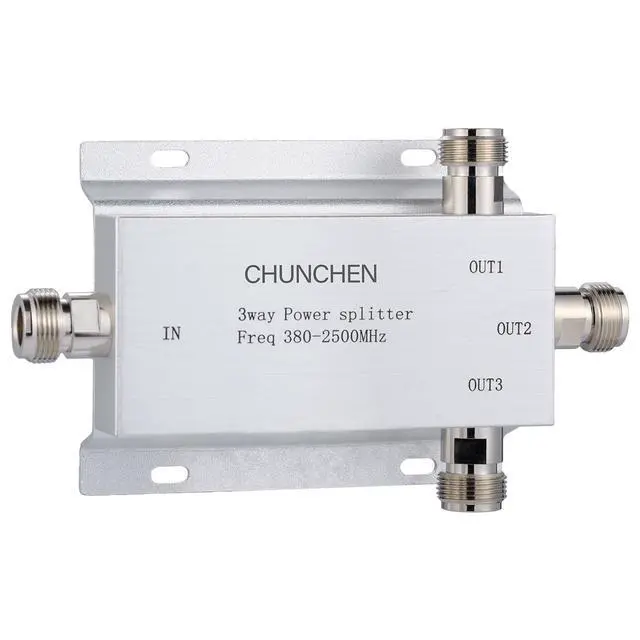

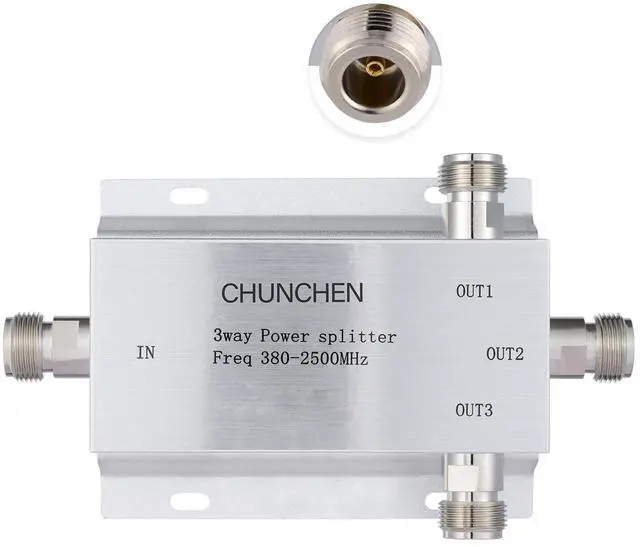

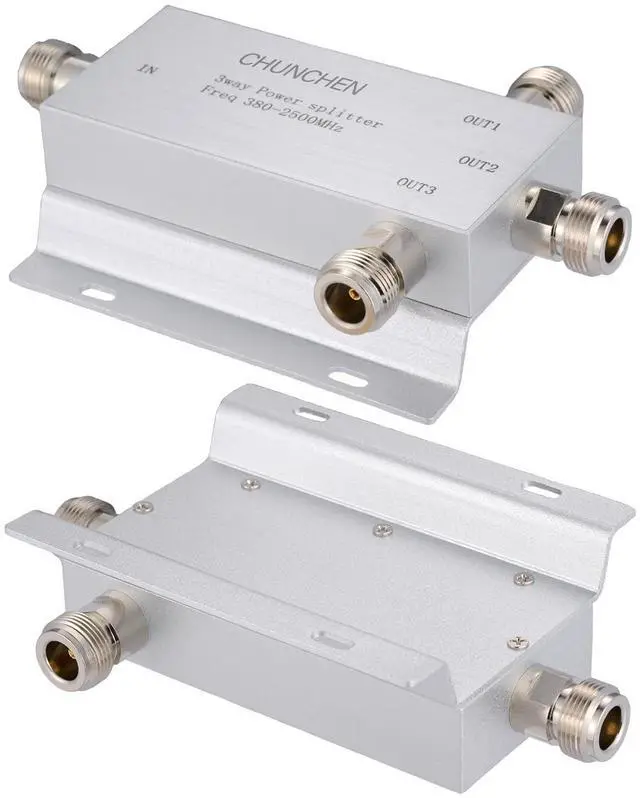

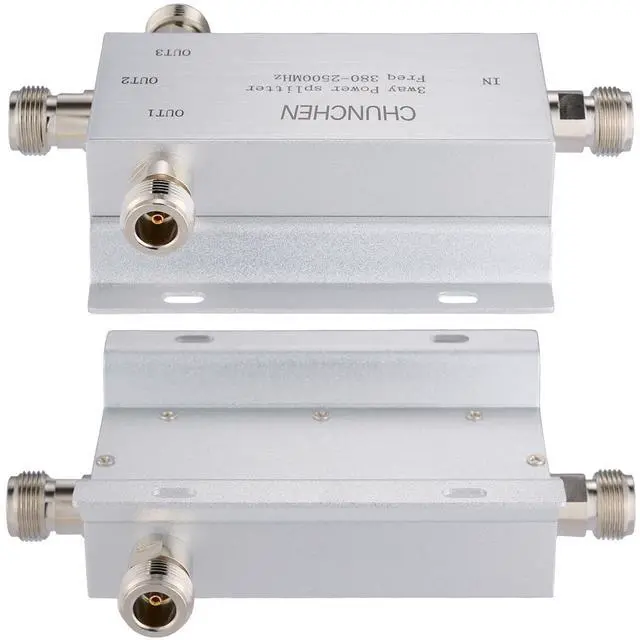

CHUNCHEN 3 Way N Female Connector Power Splitter 50 Ohm Signal Splitter 380MHz-2500MHz Cable Signal Splitter 1 Input 3 Output for Antenna Cable
- Product name: N female 3 way power splitter 1 input 3 out;
- Connector port: 1 input and 3 output; Output port type: 3 way; Connector type(Input): N female; Connector type(Output 1): N female; Connector type(Output 2): N female; Connector type(Output 3): N female; Product material(Body): Aluminum alloy; Connector material: Copper;
- Specification: Frequency range (GHz): 380-2500Mhz; Insertion loss (dB): 6.4-9.0; Isolation (dB): 20; VSWR: 1.1, 2.3; Amplitude balance (dB): 0.3; Phase balance (): 5; Impedance (): 50; Power capacity (W): 50; Operating temperature (C): -30+70; Product dimensions (cm): 14*7.8*3.3cm;
- Applicaion: Provides 3 amplified N female output ports for use with cable antenna satellite signal and so on;
- Package: 1 x N female 3 way signal splitter(Weight:265.1g).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product name: N female 3 way power splitter 1 input 3 out; ^^
Connector port: 1 input and 3 output;
Output port type: 3 way;
Connector type (Input): N female;
Connector type (Output 1): N female;
Connector type (Output 2): N female;
Connector type (Output 3): N female;
Product material (Body): Aluminum alloy;
Connector material: Copper; ^^
Specification: Frequency
range (GHz): 380-2500Mhz;
Insertion loss (dB): 6.4 - 9.0;
Isolation (dB): 20;
VSWR: 1.1, 2.3;
Amplitude balance (dB): 0.3;
Phase balance (): 5;
Impedance (): 50;
Power capacity (W): 50;
Operating temperature (C): -30+70;
Product dimensions (cm): 14* 7.8 * 3.3 cm; ^^
Applicaion: Provides 3 amplified N female output ports for use with cable antenna satellite signal and so on; ^^
Package: 1 x N female 3 way signal splitter(Weight: 265.1 g).
