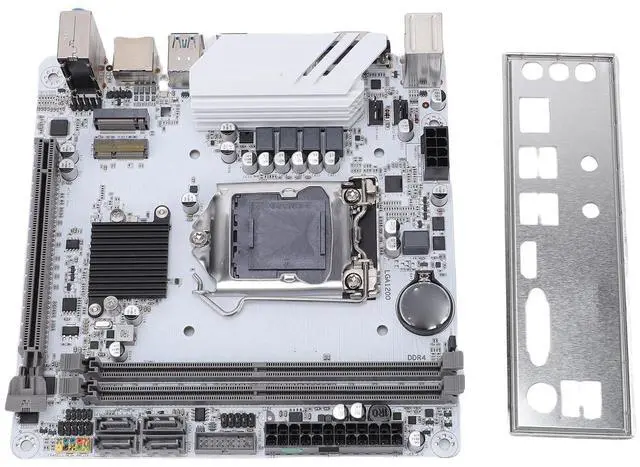

ciciglow Computer Motherboard, H510 ITX Motherboard LGA 1200 Support Dual Channel DDR4 64GB Mini ITX Desktop Board with M.2 NVMe Slot and PCIe 3.0 x16
- LGA 1200 CPU COMPATIBILITY: Supports 10th and 11th Generation processors. This H510 ITX motherboard delivers reliable performance for your compact desktop builds, ideal for home, office, design, and gaming applications.
- DUAL CHANNEL DDR4 MEMORY: Features two DDR4 slots supporting up to 64GB (2x32GB) capacity. Compatible with 3000, 2933, 2800, 2666, 2400, and 2133MHz frequencies for seamless multitasking and robust system responsiveness.
- HIGH-SPEED STORAGE & EXPANSION: Equipped with an M.2 NVMe slot (Gen3x4 protocol) and four SATA 3.0 interfaces for fast data transfer. Includes one PCIe 3.0 x16 slot for graphics cards and an M.2 WiFi slot for network expansion.
- DUAL VIDEO OUTPUT & GIGABIT LAN: Features VGA and HD Multimedia Interface 2.0 ports for dual high-definition display connections. Integrated Realtek 8111H Gigabit Ethernet ensures stable and fast wired network connectivity.

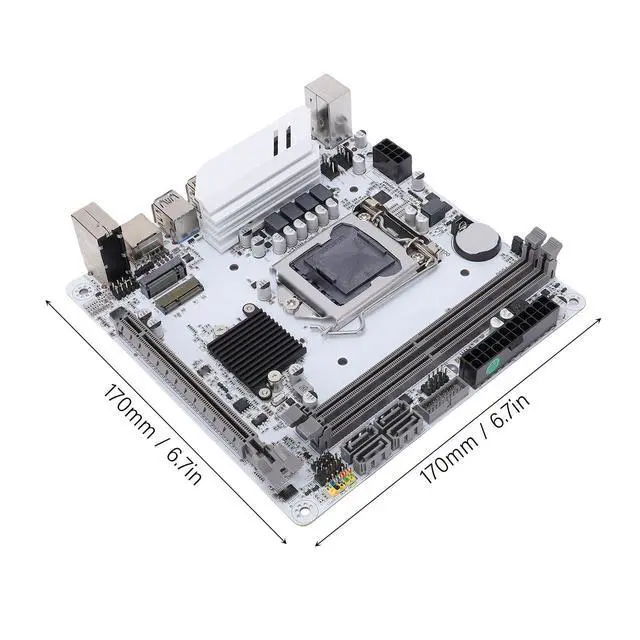

- COMPACT ITX FORM FACTOR: Measuring 170x170mm (6.7x6.7in), this Mini ITX board fits perfectly in
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1.
Dual Video Output: Equipped with both VGA and HD Multimedia Interface 2.0 interfaces, enabling connections to TVs and displays for high definition visual experiences. Ideal for home, work, design, and gaming applications. 2.
DDR4 Memory Support: Features two DDR4 slots supporting maximum 64GB (2x32GB) capacity with dual channel configurations at 3000 2933 2800 2666 2400 2133MHz frequencies, delivering robust memory performance for multitasking and demanding applications. 3.
Sturdy Construction: Built with premium PCB materials that provide stable performance and extended product lifespan. The robust design withstands continuous running.
Specification: Item
Type: Computer
MotherboardMaterial: PCBCPU
Support: 10th 11th
GenerationStorage: M. 2 Slot (Only
NVMe Protocol: Gen3X4), 4 x Serial ATA 3.0
InterfacesDisplay Interfaces: 1xHD Multimedia Interface 2.0, 1xVGA
Network: Support for Realtek 8111H Gigabit EthernetPS/ 2: 1
PCIe: 1xPCIe x16 Slot (PCIe 3.0 x16), 1xM. 2 WiFi Slot (PCIe
Protocol Only) Sound: 1xLINE OUT, 1xMIC IN; 1xLINE IN; 1xJAUDI01 Built in
Pin HeaderSound Chip: Support for REALTEK ALC897 High Definition
Sound ChipUSB Ports: 2xUSB 3.0, 4xUSB 2.0B uilt in
Pin Header: 1 Group of FUSB20 1 Pin Header (Expandable to 2 USB 2.0 Ports); 1 Group of FUSB30 1 Pin (Expandable to 2 USB 3.0 Ports);
Power Input: 24pin 8pin ATX
Power ConnectorSize: ITX, 170x170mm / 6.7 x 6.7 inBattery: Built in CR2032 240mAh BatteryHow to
Use: Install and use.
packing list: 1 x Computer Motherboard1 x Bracket
Dual Video Output: Equipped with both VGA and HD Multimedia Interface 2.0 interfaces, enabling connections to TVs and displays for high definition visual experiences. Ideal for home, work, design, and gaming applications. 2.
DDR4 Memory Support: Features two DDR4 slots supporting maximum 64GB (2x32GB) capacity with dual channel configurations at 3000 2933 2800 2666 2400 2133MHz frequencies, delivering robust memory performance for multitasking and demanding applications. 3.
Sturdy Construction: Built with premium PCB materials that provide stable performance and extended product lifespan. The robust design withstands continuous running.
Specification: Item
Type: Computer
MotherboardMaterial: PCBCPU
Support: 10th 11th
GenerationStorage: M. 2 Slot (Only
NVMe Protocol: Gen3X4), 4 x Serial ATA 3.0
InterfacesDisplay Interfaces: 1xHD Multimedia Interface 2.0, 1xVGA
Network: Support for Realtek 8111H Gigabit EthernetPS/ 2: 1
PCIe: 1xPCIe x16 Slot (PCIe 3.0 x16), 1xM. 2 WiFi Slot (PCIe
Protocol Only) Sound: 1xLINE OUT, 1xMIC IN; 1xLINE IN; 1xJAUDI01 Built in
Pin HeaderSound Chip: Support for REALTEK ALC897 High Definition
Sound ChipUSB Ports: 2xUSB 3.0, 4xUSB 2.0B uilt in
Pin Header: 1 Group of FUSB20 1 Pin Header (Expandable to 2 USB 2.0 Ports); 1 Group of FUSB30 1 Pin (Expandable to 2 USB 3.0 Ports);
Power Input: 24pin 8pin ATX
Power ConnectorSize: ITX, 170x170mm / 6.7 x 6.7 inBattery: Built in CR2032 240mAh BatteryHow to
Use: Install and use.
packing list: 1 x Computer Motherboard1 x Bracket
