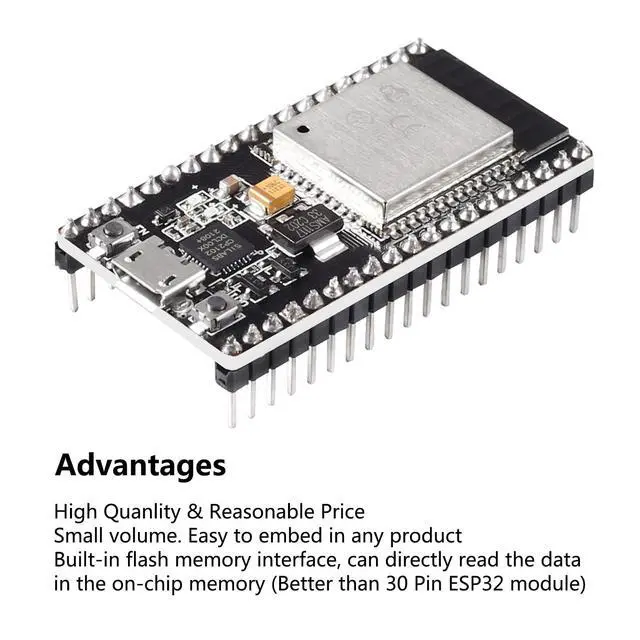

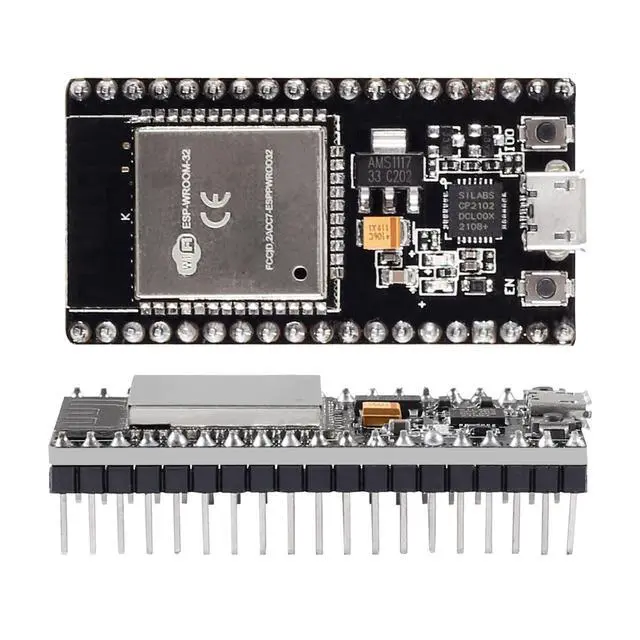

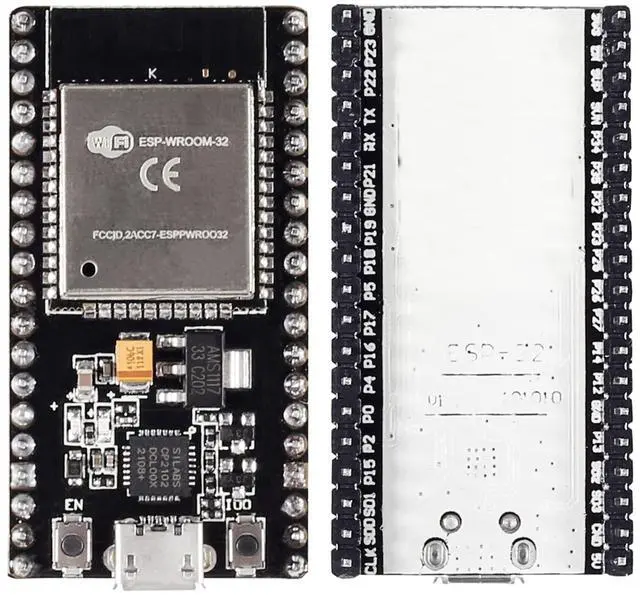

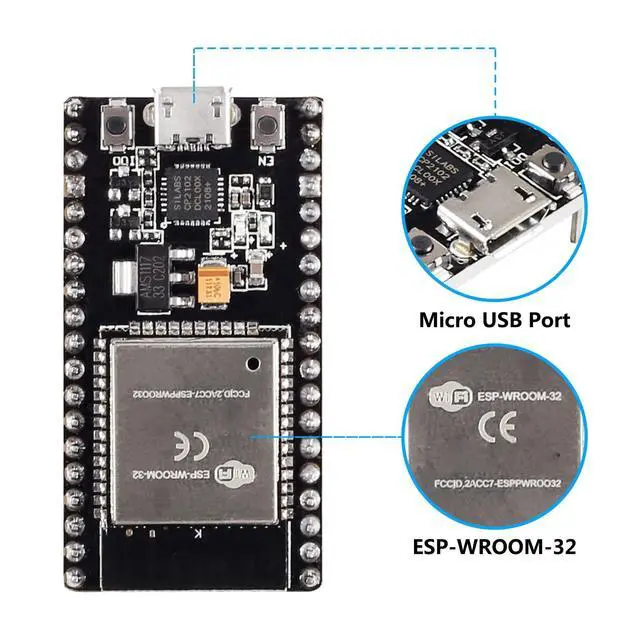

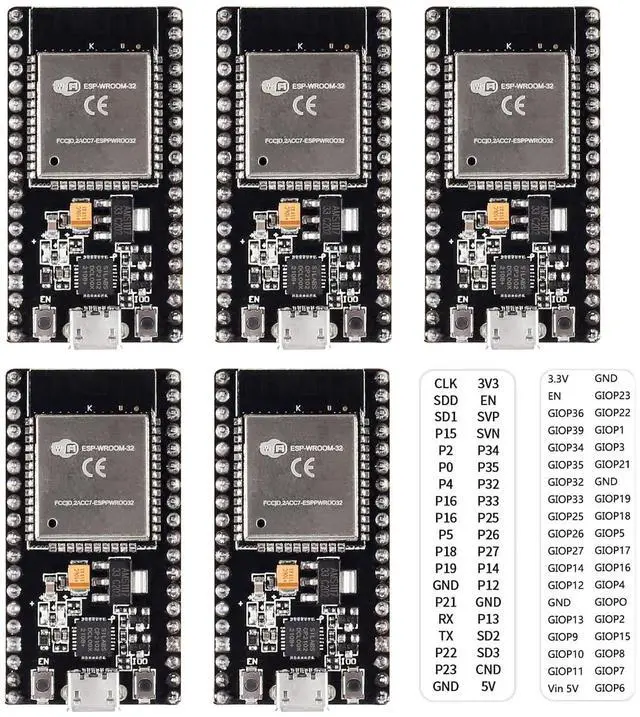

5Pcs ESP32 Development Board CP2102 Chip 38Pin Narrow Version WiFi + Bluetooth Microcontroller Dual Cores ESP-32 ESP-32D Board ESP-WROOM-32 2 in 1 Dual Core Low Power Consumption ESP-32
- The esp32D module has 38 pins and has more features than a 30-pin module, narrower width, compatible with breadboard
- ESP32 is a WiFi+Bluetooth chip developed. It is designed to provide access network functionality for embedded products.
- ESP32s development board support Lua program, easy to develop, support of three modes: AP, STA and AP + STA.
- ESP32-DevKitC-32 is based on the ESP-32d module. The platform uses many open source projects , this module is safe, reliable, and scalable to a variety of applications.
- The esp32 has two rows of pins, 19 each, for a total of 38 pins. There are six basic pins responsible for power supply and enabling. The rated current of the pins is 6mA, and the maximum current is 12mA
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Small volume, narrow, easily embeded to other productsStrong function with support LWIP protocol, FreertosSupporting
three modes: AP, STA, and AP+STA
Supporting Lua program, easily to developLua programming language supportComplete microcontroller with WLAN ( 802.11 bgn) and Bluetooth (Classic and LE) Reset and boot buttons are available, so a new firmware can be quickly and easily installedThe development board combines a CPU with 2 Tensilica LX6 cores, clocked at up to 240 MHz, and 512 kilobytes SRAM in a single microcontroller chipGPIO function classification: ADC-Analog
Signal Sampling: Available GPIO numbers-32, 33, 34, 35, 36, 39DAC-Analog
output: Available GPIO numbers-25, 26UART-Serial
Communication: Available GPIO numbers - 1 (TX0), 3 (RX0), 10 (TX1), 9 (RX1), 17 (TX2), 16 (RX2)
SPI-SPI bus interface: Available GPIO numbers - hspi(14, 12, 13, 15) vspi(23, 19, 18, 5)I2C-I2C
bus interface: Available GPIO numbers - SDA (21) SCL (22) (MicroPython does not implement I2C in hardware)
Package included: 5 x ESP32 ESP-32d development board
three modes: AP, STA, and AP+STA
Supporting Lua program, easily to developLua programming language supportComplete microcontroller with WLAN ( 802.11 bgn) and Bluetooth (Classic and LE) Reset and boot buttons are available, so a new firmware can be quickly and easily installedThe development board combines a CPU with 2 Tensilica LX6 cores, clocked at up to 240 MHz, and 512 kilobytes SRAM in a single microcontroller chipGPIO function classification: ADC-Analog
Signal Sampling: Available GPIO numbers-32, 33, 34, 35, 36, 39DAC-Analog
output: Available GPIO numbers-25, 26UART-Serial
Communication: Available GPIO numbers - 1 (TX0), 3 (RX0), 10 (TX1), 9 (RX1), 17 (TX2), 16 (RX2)
SPI-SPI bus interface: Available GPIO numbers - hspi(14, 12, 13, 15) vspi(23, 19, 18, 5)I2C-I2C
bus interface: Available GPIO numbers - SDA (21) SCL (22) (MicroPython does not implement I2C in hardware)
Package included: 5 x ESP32 ESP-32d development board
