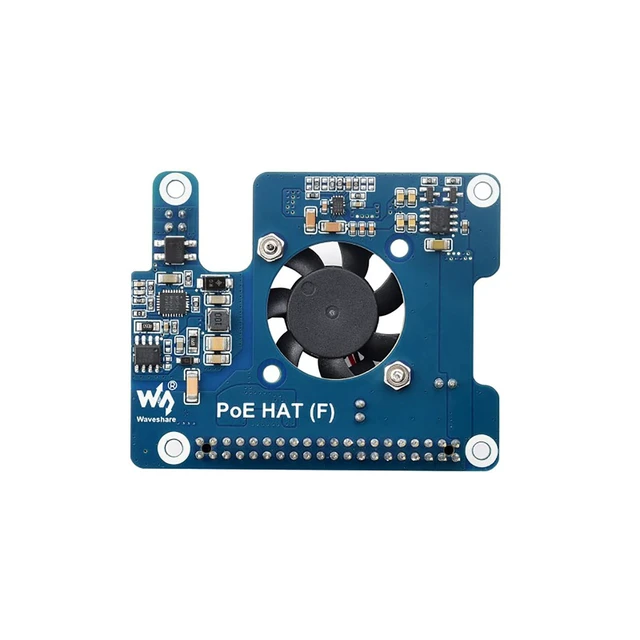

PoE HAT F for Raspberry Pi 5 CM5, 802.3af/at, Cooling Fan
- PoE HAT for Raspberry Pi 5 CM5: PoE HAT F is a Power over Ethernet expansion board for Raspberry Pi 5 and CM5, supporting network connection and power input through one Ethernet cable.
- 802.3af/at PoE+ Support: This PoE+ HAT supports IEEE 802.3af/at network standard and works with compatible PoE power sourcing equipment for compact wired deployment projects.

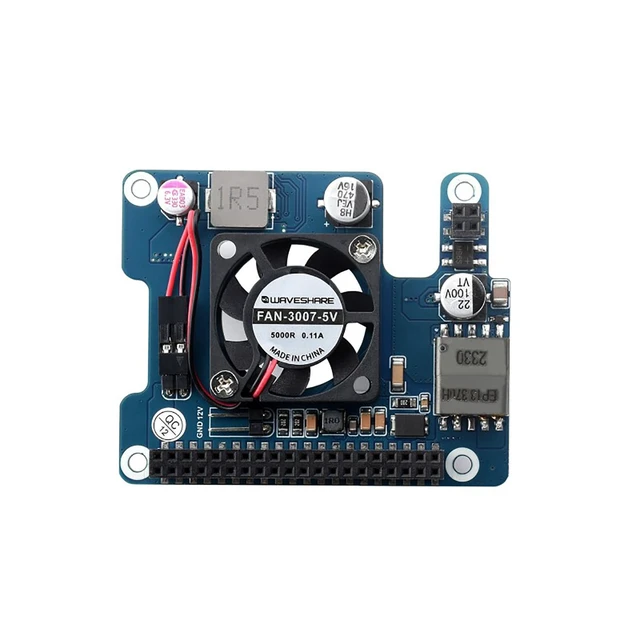

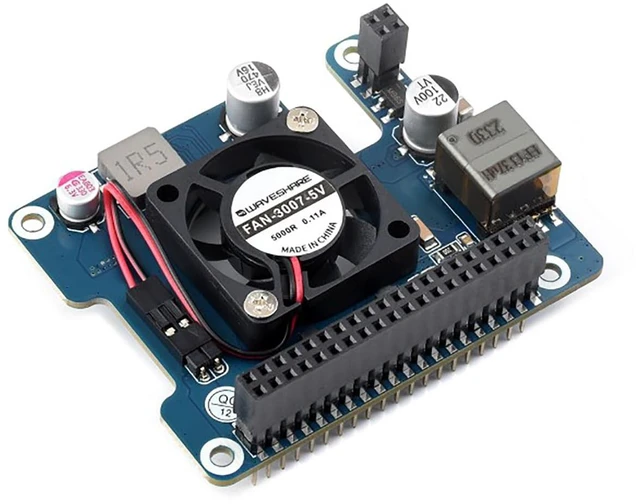

- Active Cooling Fan and Metal Heatsink: The PoE HAT with cooling fan includes a metal heatsink and high-speed active fan, helping improve heat dissipation and operating stability during long-term use.
- 5V and 12V Output Headers: Onboard 5V and 12V header outputs provide power options for external peripherals, with up to 25W total output under suitable PoE input and cooling conditions.
- 40-pin GPIO Stackable Header: Standard 40-pin GPIO stackable header fits Raspberry Pi 5 and CM5 expansion, allowing users to connect compatible HATs and custom project interfaces.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
OverviewThe PoE HAT F is a high-power Power over Ethernet expansion board designed for Raspberry Pi 5 and CM5 projects. It supports IEEE 802.3 af/at PoE and PoE+ input, allowing network connection and power input througha single Ethernet cable when used with compatible PoE power sourcing equipment. This PoE HAT uses a fully isolated switched-mode power supply design to provide stable power conversion for wired embedded systems, network terminals, edge computing projects, compact servers, industrial controlnodes and remote deployment applications. For thermal performance, the module integrates an active cooling fan and metal heatsink.
The high-speed fan helps accelerate heat dissipation, making it suitable for Raspberry Pi 5 and CM5 applications that require stableoperation under higher workloads. The board provides onboard 5V and 12V output headers for external peripherals. The 5V header can provide up to 4.5A output, and the total 5V + 12V output power can reach up to 25W under suitable PoE input and coolingconditions. The standard 40-pin GPIO stackable header allows connection to Pi 5 and CM5 while keeping expansion flexibility for compatible HATs or custom project wiring. This makes the PoE HAT F suitable for wired network applications, compact embedded systems, industrial prototypes and development platforms.
Please note: This product is a PoE expansion HAT for development and embedded applications. Raspberry Pi board, Ethernet cable, PoE switch/injector and external peripherals are not included.
Name: PoE
HAT FCompatibility: for Raspberry Pi 5 /
CM5PoE Standard: IEEE 802.3 af/at compliantPower
Design: Fully isolated SMPS
Cooling: Active
fan with metal heatsinkGPIO: Standard 40-pin stackable headerOutput
Headers: 5V and 12V5V
Output: Up to 4.5AT otal
Output Power: Up to 25W for 5V + 12V outputApplications: PoE expansion, wired network terminals, edge computing, embedded development, industrial prototypesPackage

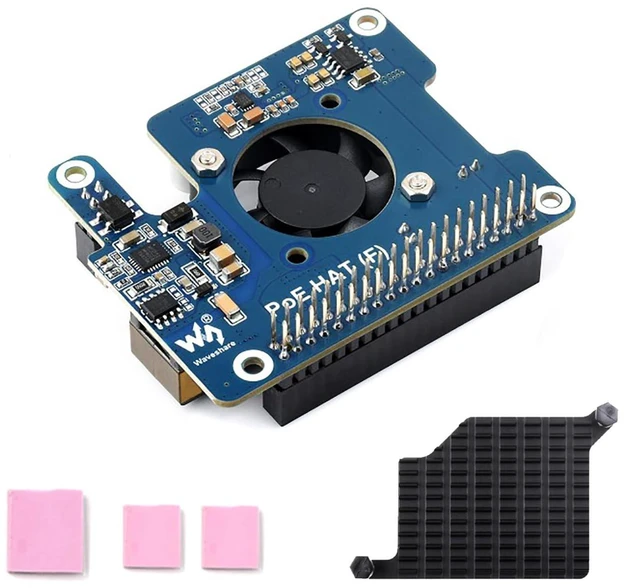

Includes: 1. PoE HAT (F) x12. Metal heatsink x13. Thermal tape (3PCS) x14. Screws pack x1
The high-speed fan helps accelerate heat dissipation, making it suitable for Raspberry Pi 5 and CM5 applications that require stableoperation under higher workloads. The board provides onboard 5V and 12V output headers for external peripherals. The 5V header can provide up to 4.5A output, and the total 5V + 12V output power can reach up to 25W under suitable PoE input and coolingconditions. The standard 40-pin GPIO stackable header allows connection to Pi 5 and CM5 while keeping expansion flexibility for compatible HATs or custom project wiring. This makes the PoE HAT F suitable for wired network applications, compact embedded systems, industrial prototypes and development platforms.
Please note: This product is a PoE expansion HAT for development and embedded applications. Raspberry Pi board, Ethernet cable, PoE switch/injector and external peripherals are not included.
Specifications
: ProductName: PoE
HAT FCompatibility: for Raspberry Pi 5 /
CM5PoE Standard: IEEE 802.3 af/at compliantPower
Design: Fully isolated SMPS
Cooling: Active
fan with metal heatsinkGPIO: Standard 40-pin stackable headerOutput
Headers: 5V and 12V5V
Output: Up to 4.5AT otal
Output Power: Up to 25W for 5V + 12V outputApplications: PoE expansion, wired network terminals, edge computing, embedded development, industrial prototypesPackage
Includes: 1. PoE HAT (F) x12. Metal heatsink x13. Thermal tape (3PCS) x14. Screws pack x1
