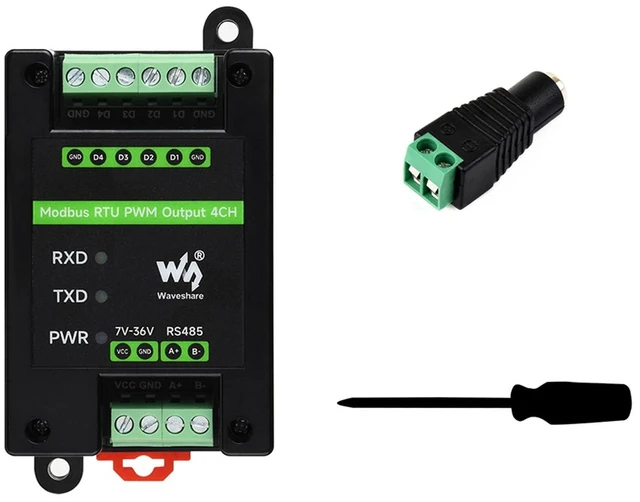

Modbus RTU PWM Output Module 4CH, Isolated RS485 to 4-Channel PWM Controller, Adjustable Frequency & Duty Cycle, 7-36V Power Input, DIN Rail Mount Case, Surge/TVS Protection, LEDs
- Modbus RTU RS485 to PWM Output Module: Industrial Modbus RTU PWM output module converts RS485 commands to 4-channel PWM outputs, ideal for PLC/automation control and remote dimming/speed control applications.
- 4CH PWM with Independent Control: Provides 4-ch PWM outputs with independently adjustable frequency and duty cycle, enabling precise control for fans, valves, drivers, dimmers, and other PWM devices.
- Isolated RS485 Interface + Optocoupler Outputs: Features power isolation and magnetical isolation on the RS485 interface, plus high-speed optocoupler isolation on PWM outputs for high reliability and strong anti-interference.
- 736V Wide Voltage Input + No Extra Isolated Supply: Built-in regulator supports 7-36V power supply, and onboard unibody isolated power design provides stable isolated voltageno additional power supply needed for the isolated terminal.
- Protection, Watchdog & DIN Rail Mount: Includes resettable fuse, TVS surge protection (transient spike suppressio
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Modbus RTU RS485 to PWM
Output Module: Industrial Modbus RTU PWM output module converts RS485 commands to 4-channel PWM outputs, ideal for PLC/automation control and remote dimming/speed control applications. ^^ 4CH PWM with
Independent Control: Provides 4-ch PWM outputs with independently adjustable frequency and duty cycle, enabling precise control for fans, valves, drivers, dimmers, and other PWM devices. ^^ Isolated RS485 Interface +
Optocoupler Outputs: Features power isolation and magnetical isolation on the RS485 interface, plus high-speed optocoupler isolation on PWM outputs for high reliability and strong anti-interference. ^^ 736V Wide Voltage Input +
No Extra Isolated Supply: Built-in regulator supports 7-36V power supply, and onboard unibody isolated power design provides stable isolated voltageno additional power supply needed for the isolated terminal. ^^ Protection, Watchdog
& DIN Rail Mount: Includes resettable fuse, TVS surge protection (transient spike suppression), and watchdog for stable operation; compact DIN rail mount enclosure with 3 LEDs for power and signal status.
Output Module: Industrial Modbus RTU PWM output module converts RS485 commands to 4-channel PWM outputs, ideal for PLC/automation control and remote dimming/speed control applications. ^^ 4CH PWM with
Independent Control: Provides 4-ch PWM outputs with independently adjustable frequency and duty cycle, enabling precise control for fans, valves, drivers, dimmers, and other PWM devices. ^^ Isolated RS485 Interface +
Optocoupler Outputs: Features power isolation and magnetical isolation on the RS485 interface, plus high-speed optocoupler isolation on PWM outputs for high reliability and strong anti-interference. ^^ 736V Wide Voltage Input +
No Extra Isolated Supply: Built-in regulator supports 7-36V power supply, and onboard unibody isolated power design provides stable isolated voltageno additional power supply needed for the isolated terminal. ^^ Protection, Watchdog
& DIN Rail Mount: Includes resettable fuse, TVS surge protection (transient spike suppression), and watchdog for stable operation; compact DIN rail mount enclosure with 3 LEDs for power and signal status.
