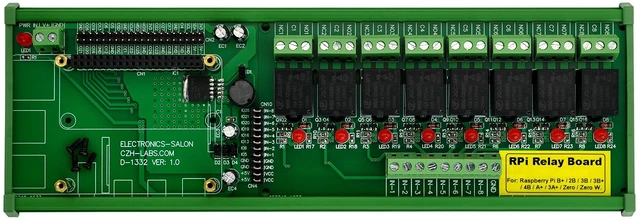

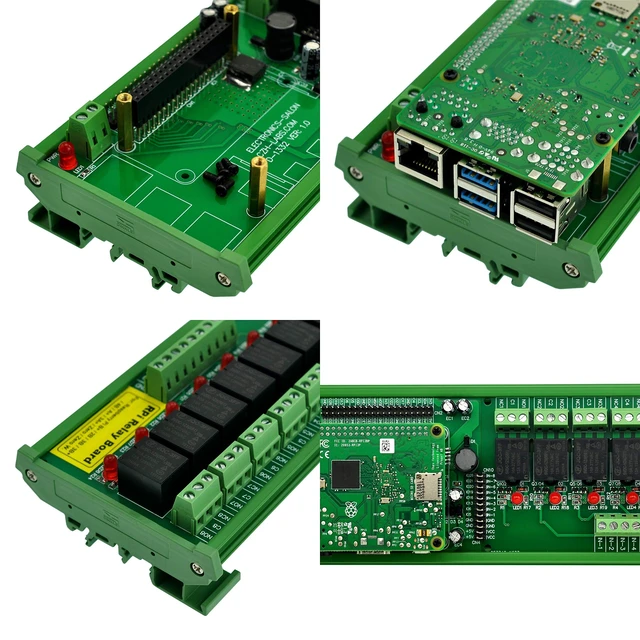

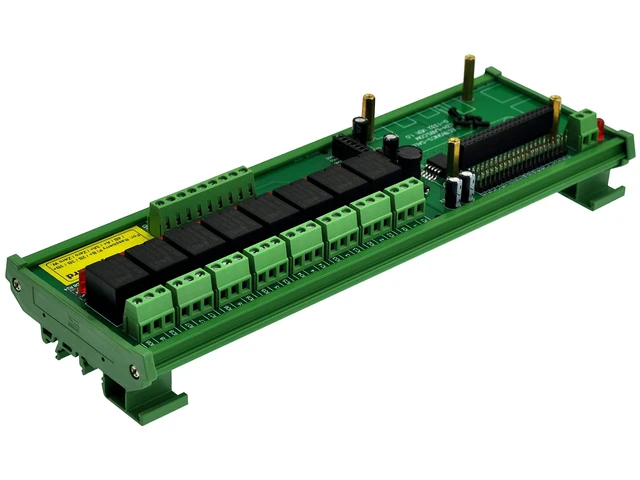

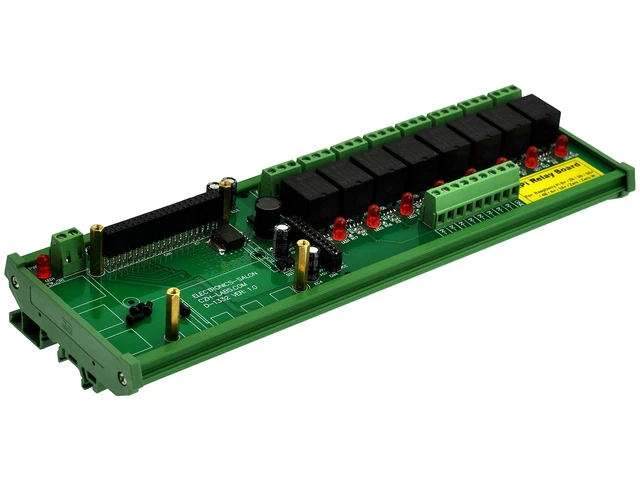

DIN Rail Mount 8 SPDT IoT Power Relay Module for Raspberry Pi
- DIN Rail Mount IoT Power Relay Module for Raspberry Pi, with the module you can easily extend Raspberry-Pi projects to IoT/industrial control applications. Support for Raspberry Pi 1 Model A+, Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B, Pi 3 Model B+, Pi 4 Module B, Pi Zero or Pi Zero W ( NOTE: the item not include Raspberry Pi).
- Support DC 5V or DC 7V ~ 32V power supply. Relay action LED indication corresponds to each channel. Support pin jumper chose control signal from Raspberry or external signal.
- 8 channels SPDT power relays. Contact Rating (each channel): 125VAC/12A, 277VAC/10A or 30VDC/10A.
- FR-4 glass fiber PCB. High quality fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
1, DIN Rail Mount IoT Power Relay Module for Raspberry Pi, with the module you can easily extend Raspberry-Pi projects to IoT/industrial control applications. Support for Raspberry Pi 1 Model A+, Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B, Pi 3 Model B+, Pi 4 Module B, Pi Zero or Pi Zero W (
NOTE: the item not include Raspberry Pi). 2, Support DC 5V or DC 7V ~ 32V power supply. 3, Relay action LED indication corresponds to each channel. Support pin jumper chose control signal from Raspberry or external signal. 4, 8 channels SPDT power relays.
Contact Rating (each channel): 125VAC/12A, 277VAC/10A or 30VDC/10A. 5, FR-4 glass fiber PCB. High quality fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail.
NOTE: the item not include Raspberry Pi). 2, Support DC 5V or DC 7V ~ 32V power supply. 3, Relay action LED indication corresponds to each channel. Support pin jumper chose control signal from Raspberry or external signal. 4, 8 channels SPDT power relays.
Contact Rating (each channel): 125VAC/12A, 277VAC/10A or 30VDC/10A. 5, FR-4 glass fiber PCB. High quality fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail.
