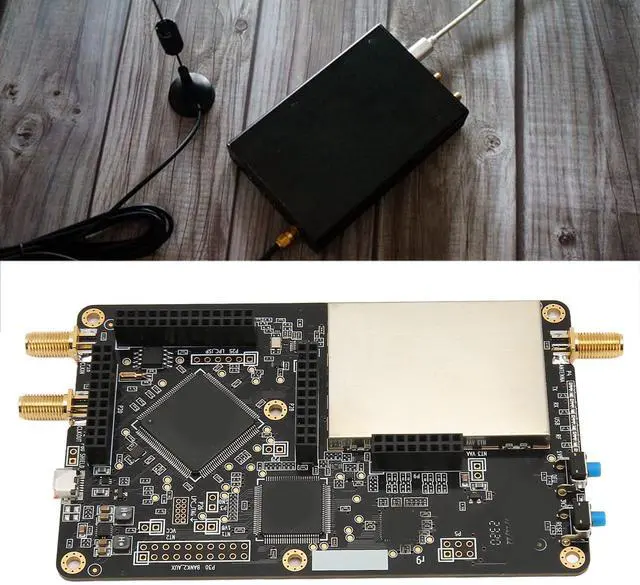

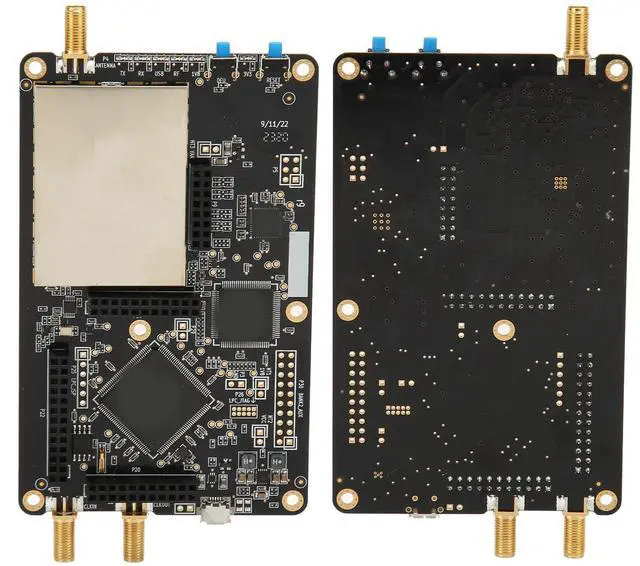

1MHz-6GHz SDR Development Board Open Source Software Radio SDR Development Board Black (Mainboard USB SMA Antenna)

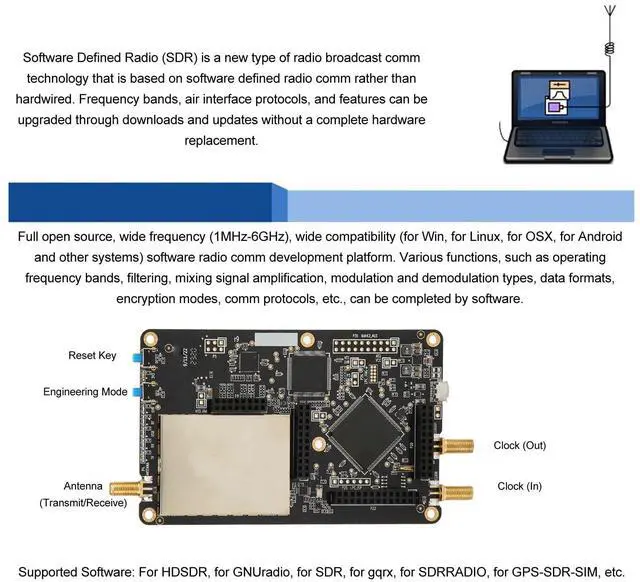

- Frequency Range: Fully open source software radio development with a wide frequency range of 1MHz-6GHz, supporting for Windows, for Linux, for OS X, for Android, and other systems.
- Multiple Functions: With working frequency band, filtering, mixing amplification, modulation and demodulation type, data format, encryption mode, comm protocol and other functions.
- Main Purpose: Designed to support modern and next generation radio technology testing and development, it can be used as a USB peripheral or programmed for independent operation.
- High Efficiency: This SDR development board uses a half duplex transceiver, with up to 20 million samples per second, with high efficiency, and compatibility with most software.
- Easy Installation: With exquisite craftsmanship, this development board has standard interfaces and mounting holes, making it easy to install and program, meeting more DIY development needs.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Spec:
Item Type: SDR Development Board
Material: PCB
Basic Parameters:
Design Frequency: 1MHz-6000MHz
Data Bandwidth: 20MHz
Sampling Accuracy ADC DAC: 8bit
Sampling Rate ADC DAC: 20Mbps
Data And Power Supply Interface: USB 2.0
Open Source Level: Fully Open Source (software, hardware)

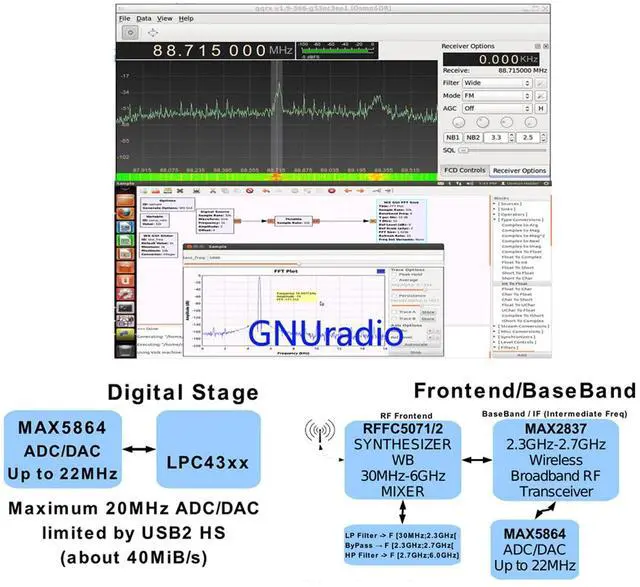

The RF switch determines whether to amplify through a 14dB amplifier
The is high pass or low pass filtered by an image suppression filter
processing udrffc5072 chip is mixed to 2.6GH z fixed if
The latest firmware supports the if variable option
If the range is 2.150 ghz- 2.750 ghz
input chip mixing to baseband, output differential aliqsignal
The chip can limit the bandwidth
The chip digitizes the baseband and sends it to cpld and microcontroller for all repair
The LPC4320/4330 processor sends the sampled data to the computer via usb
Put the RFFC5072 and in the shielding cover to protect them from interference from the outside world and other chips on the board, and try to avoid some chips from electrostatic breakdown
Features:
Operating frequency from 1MHz to 6GHz
Half duplex transceiver
Up to 20 million samples per second
8 bit orthogonal sample (8 bit i and 8 bit q)
Software configurable RX and TX gain as well as baseband filters
Software controlled antenna port power (50 mA at 3.3V )
SMA female antenna connector
SMA clock female input and output for synchronization
Convenient programming button
Internal row of pins for expansion
High Speed USB 2.0
USB Power Supply
Open Source Hardware
How to Use:
Use according to the selling point diagram instructions.

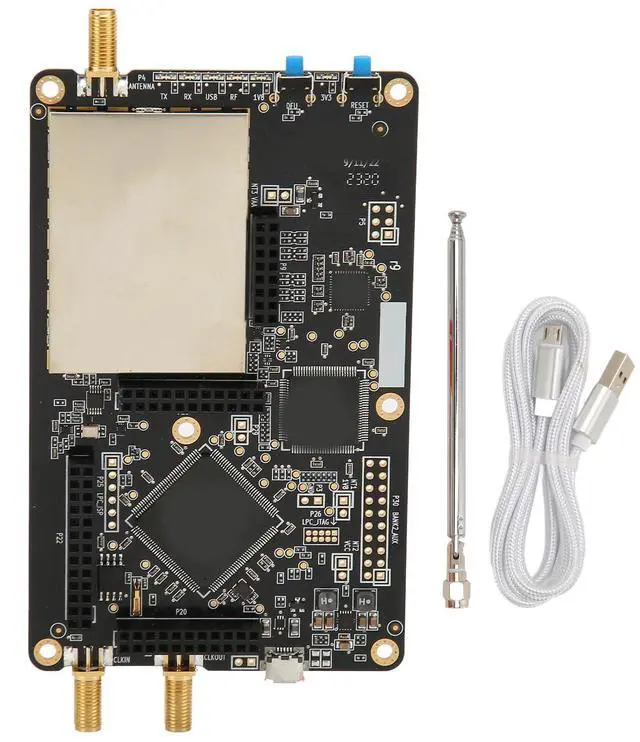

packing list:
1 x Mainboard
or
1 x Mainboard
1 x Antenna
1 x Data Cable
Item Type: SDR Development Board
Material: PCB
Basic Parameters:
Design Frequency: 1MHz-6000MHz
Data Bandwidth: 20MHz
Sampling Accuracy ADC DAC: 8bit
Sampling Rate ADC DAC: 20Mbps
Data And Power Supply Interface: USB 2.0
Open Source Level: Fully Open Source (software, hardware)
The RF switch determines whether to amplify through a 14dB amplifier
The is high pass or low pass filtered by an image suppression filter
processing udrffc5072 chip is mixed to 2.6GH z fixed if
The latest firmware supports the if variable option
If the range is 2.150 ghz- 2.750 ghz
input chip mixing to baseband, output differential aliqsignal
The chip can limit the bandwidth
The chip digitizes the baseband and sends it to cpld and microcontroller for all repair
The LPC4320/4330 processor sends the sampled data to the computer via usb
Put the RFFC5072 and in the shielding cover to protect them from interference from the outside world and other chips on the board, and try to avoid some chips from electrostatic breakdown
Features:
Operating frequency from 1MHz to 6GHz
Half duplex transceiver
Up to 20 million samples per second
8 bit orthogonal sample (8 bit i and 8 bit q)
Software configurable RX and TX gain as well as baseband filters
Software controlled antenna port power (50 mA at 3.3V )
SMA female antenna connector
SMA clock female input and output for synchronization
Convenient programming button
Internal row of pins for expansion
High Speed USB 2.0
USB Power Supply
Open Source Hardware
How to Use:
Use according to the selling point diagram instructions.
packing list:
1 x Mainboard
or
1 x Mainboard
1 x Antenna
1 x Data Cable
